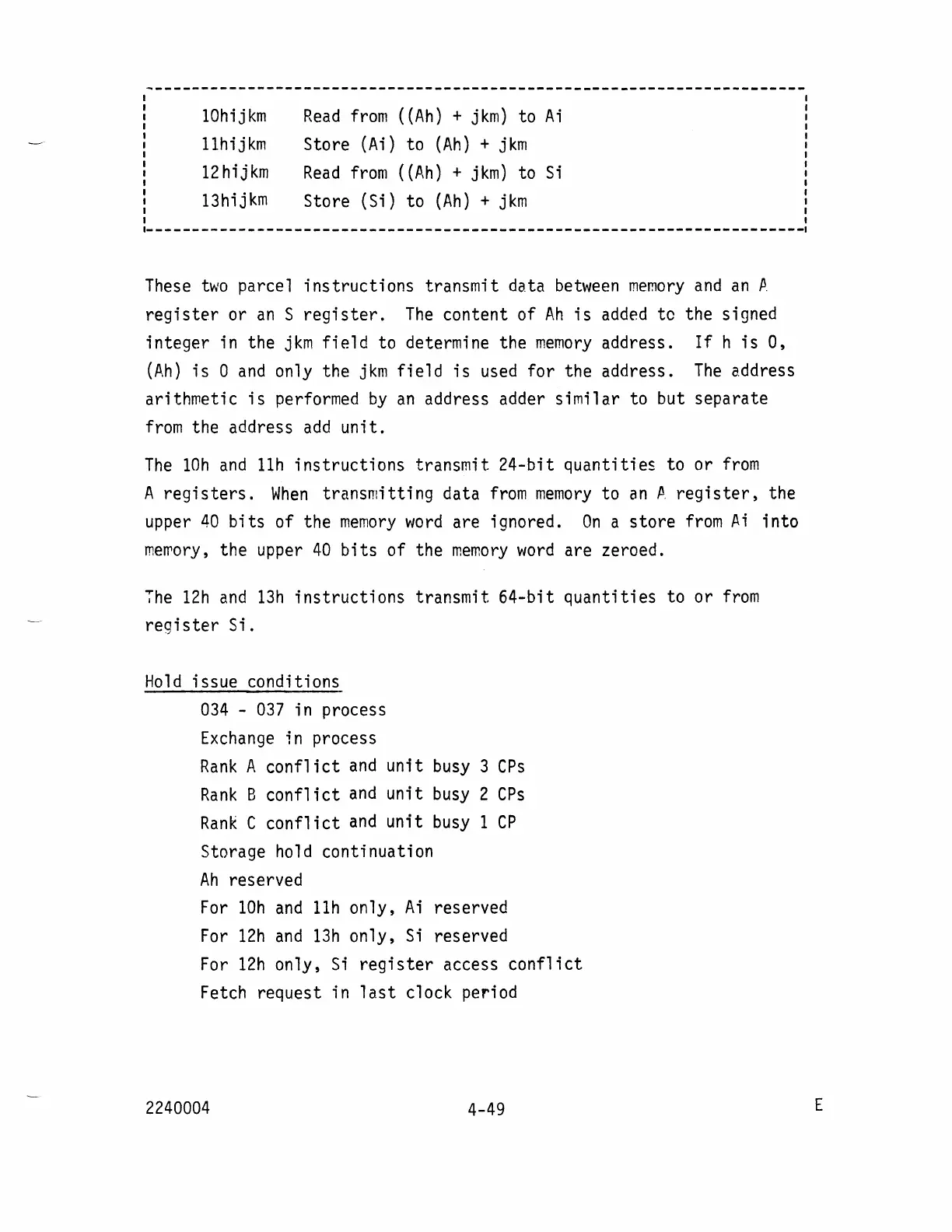

Cray CRAY-1 - 10 Hijkm Read from ((Ah) + Jkm) to Ai; 12 Hijkm Read from ((Ah) + Jkm) to si; 13 Hijkm Store (Si) to (Ah) Jkm

10hij km
Ilhijkm
12 hi jkm
13hij km
Read from ((Ah) + jkm) to Ai
Store (Ai) to (Ah) + jkm
Read from ((Ah) + jkm) to Si
Store (Si) to (Ah) + jkm
1-----------------------------------------------------------------------1
These two parcel instructions transmit da.ta between memory and an ft.
register or an S register. The content of Ah is added to the signed
integer in the
jkm field to determine the memory address. If h is 0,
(Ah) is 0 and only the jkm field is used for the address. The address
arithmetic is performed by an address adder similar to but separate
from the address add unit.
The 10h and I1h instructions transmit 24-bit quantities to or from
A registers. When transmitting data from memory to an ft. register, the
upper
40 bits of the memory word are ignored. On a store from Ai into
mewory, the upper 40 bits of the memory word are zeroed.
~he 12h and 13h instructions transmit 64-bit quantities to or from
register Si.
Hold issue conditions
034 - 037 in process
Exchange in process
Rank A conflict and unit busy 3 CPs
Rank B conflict and unit busy 2 CPs
Rank C conflict and unit busy 1 CP
Storage hold continuation
Ah reserved
For 10h and Ilh only, Ai reserved
For 12h and 13h only, Si reserved
For 12h only, Si register access conflict
Fetch request in last clock period
2240004
4-49
