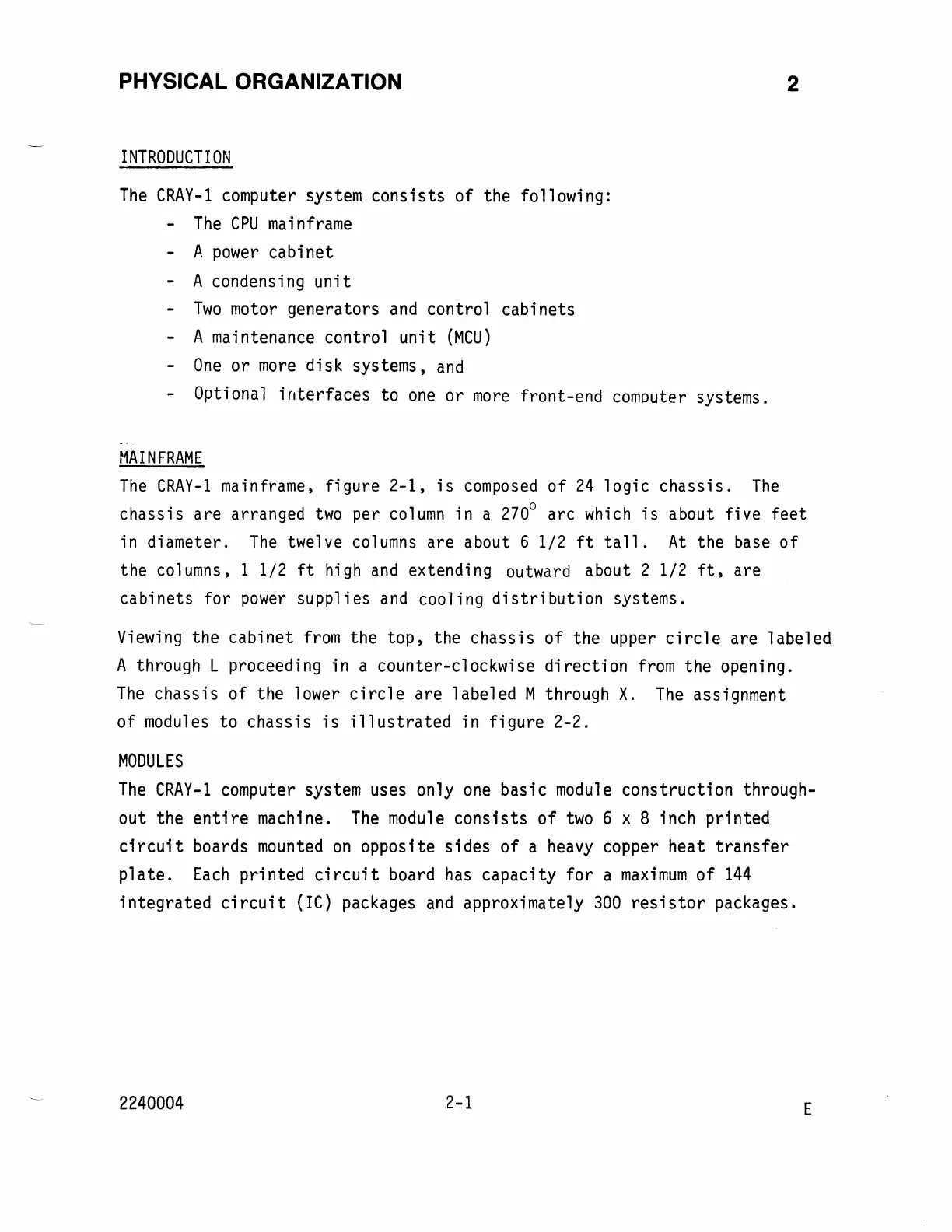

PHYSICAL ORGANIZATION
INTRODUCTION
The
CRAY-1
computer system consists of the following:
-
The
CPU
mainframe
- A
power
cabinet
- A condensing
unit
-
Two
motor
generators
and
control cabinets
- A maintenance control
unit
(MCU)
-
One
or
more
disk systems,
and
- Optional
interfaces
to
one
or
more
front-end comouter systems.
riAl
N
FRAME
2
The
CRAY-1
mainframe, figure 2-1,
is
composed
of
24
logic chassis.
The
chassis are arranged
two
per
column
in a
270
0
arc
which
is
about five feet
in diameter.
The
twelve
columns
are about 6 1/2
ft
tall.
At
the base of
the columns, 1 1/2
ft
high
and
extending outward about 2 1/2
ft,
are
cabinets for
power
supplies
and
cooling
distribution
systems.
Viewing
the cabinet
from
the top, the chassis
of
the upper
circle
are labeled
A through L proceeding in a counter-clockwise
direction
from
the opening.
The
chassis of the lower
circle
are labeled M through
X.
The
assignment
of
modules
to chassis
is
illustrated
in figure 2-2.
MODULES
The
CRAY-1
computer system uses only
one
basic
module
construction through-
out the
entire
machine.
The
module
consists
of
two
6 x 8 inch printed
circuit
boards
mounted
on
opposite sides of a
heavy
copper heat
transfer
plate.
Each
printed
circuit
board
has
capacity for a
maximum
of
144
integrated
circuit
(IC) packages
and
approximately
300
resistor
packages.
2240004
,2-1
