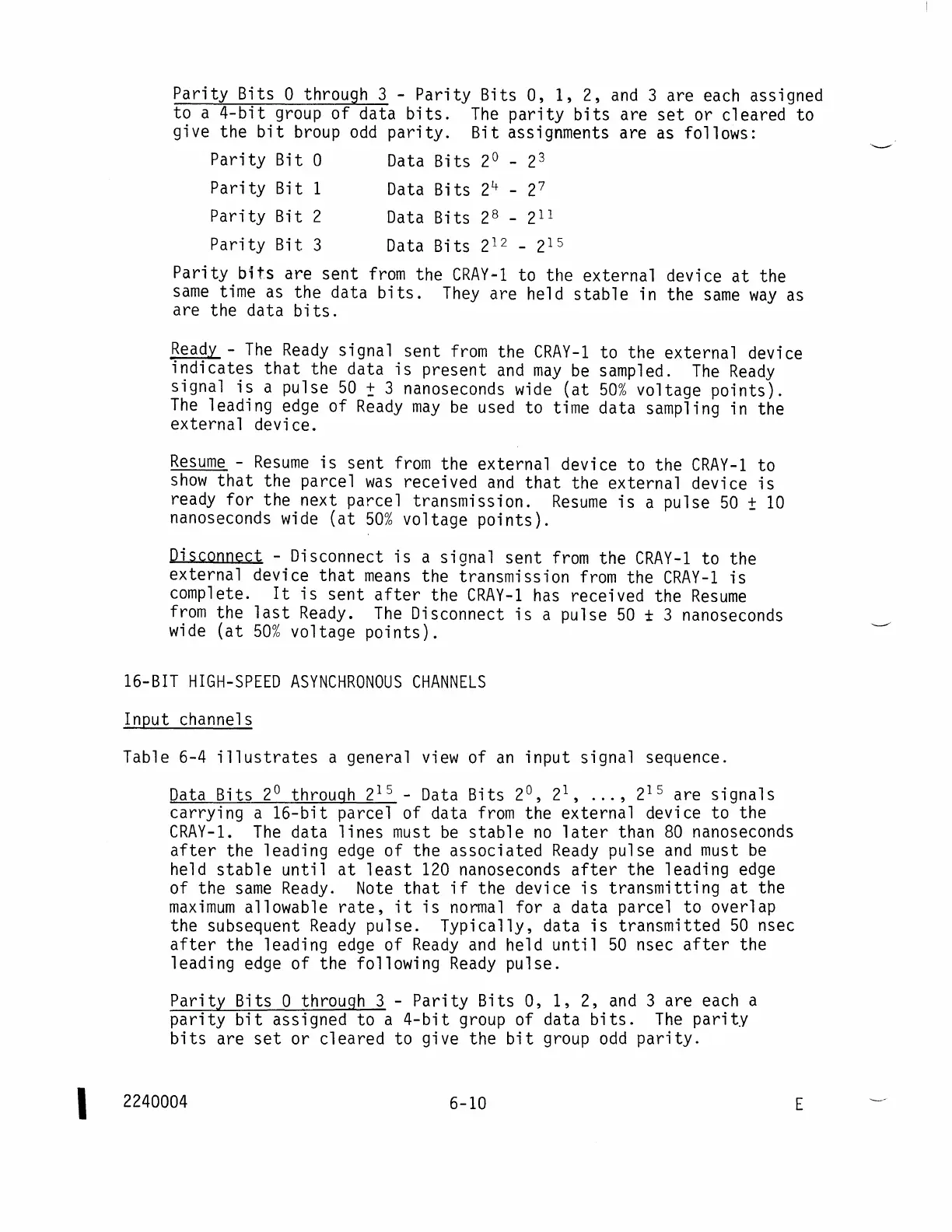

I
Parity
Bits 0 through 3 -
Parity
Bits 0, 1, 2,
and
3 are each assigned
to a
4-bit
group
of
data
bits.
The
parity
bits
are
set
or cleared to
give the
bit
broup
odd
parity.
Bit assignments are as follows:
Parity
Bit 0
Data
Bits
20
- 2
3
Parity
Bit 1
Data
Bits
24
-
27
Parity
Bit 2
Data
Bits 2
8
-
211
Parity
Bit 3
Data
Bits
212
- 2
15
Parity
bits
are
sent
from
the
CRAY-l
to the external device
at
the
same
time
as
the data
bits.
They
are held
stable
in the
same
way
as
are the data
bits.
Ready
-
The
Ready
signal sent
from
the
CRAY-l
to the external device
indicates
that
the data
is
present
and
may
be
sampled.
The
Ready
signal
is
a pulse
50
± 3 nanoseconds
wide
(at
50%
voltage
points).
The
leading
edge
of
Ready
may
be
used to time data sampling in the
external device.
Resume
-
Resume
is
sent
from
the external device to the
CRAY-l
to
show
that
the parcel
was
received
and
that
the external device
is
ready
for
the next parcel transmission.
Resume
is
a pulse
50
±
10
nanoseconds
wide
(at
50%
voltage
points).
Disconnect - Disconnect
is
a signal sent
from
the
CRAY-l
to the
external device
that
means
the transmission
from
the
CRAY-l
is
complete.
It
is
sent
after
the
CRAY-l
has
received the
Resume
from
the
last
Ready.
The
Disconnect
is
a pulse
50
± 3 nanoseconds
wide
(at
50%
voltage
points).
16-BIT
HIGH-SPEED
ASYNCHRONOUS
CHANNELS
Input channels
Table 6-4
illustrates
a general
view
of
an
input signal sequence.
Data
Bits
through 2
15
-
Data
Bits
2°,2
1
,
...
,2
15
are
signals
carrying a
16-bit
parcel of data
from
the external device to the
CRAY-l.
The
data
lines
must
be
stable
no
later
than
80
nanoseconds
after
the leading
edge
of the associated
Ready
pulse
and
must
be
held
stable
until
at
least
120
nanoseconds
after
the leading
edge
of the
same
Ready.
Note
that
if
the device
is
transmitting
at
the
maximum
allowable
rate,
it
is
normal
for a data parcel to overlap
the subsequent
Ready
pulse. Typically, data
is
transmitted
50
nsec
after
the leading
edge
of
Ready
and
held
until
50
nsec
after
the
leading
edge
of the following
Ready
pulse.
Parity
Bits 0 through 3 -
Parity
Bits 0,
1,
2,
and
3 are each a
parity
bit
assigned to a
4-bit
group of data
bits.
The
parity
bits
are
set
or cleared to give the
bit
group
odd
parity.
2240004
6-10
