Periodic Maintenance and Adjustment 8-13

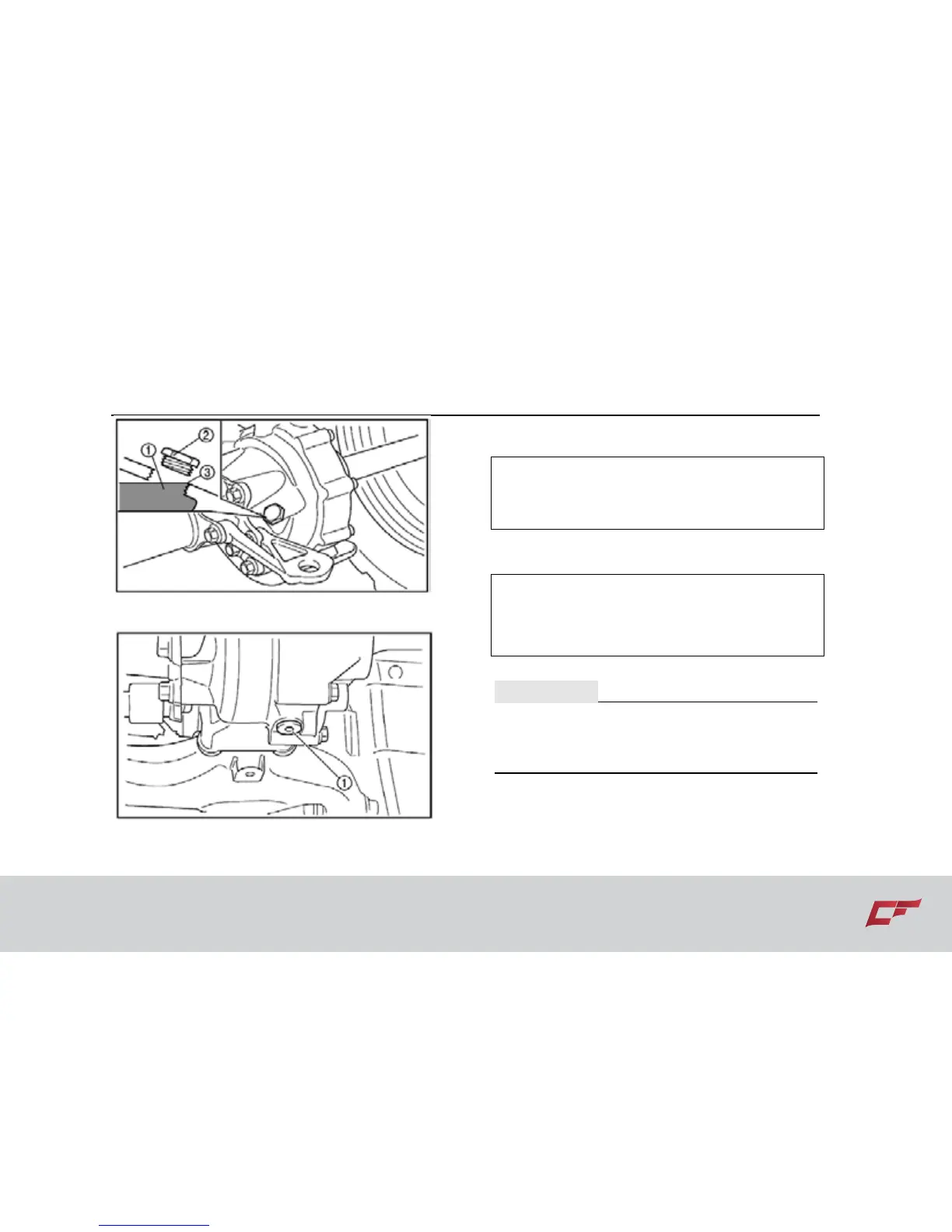

1. Final gear oil 2. Final gear oil filler bolt 3. Proper oil level
1. Final gear oil drain bolt
5. Install the drain bolt and tighten it to the
specified torque..
Tightening torque:
Final gear oil drain bolt:
23 Nm(2.3m·kgf, 17ft·lbf)
6. Fill the final gear case with the specified
amount of the recommended oil.
Recommended oil:
SAE 90 API GL-5 gear oil
Oil quantity:
0.25 L (0.22 lmp qt, 0.26 US qt)
1CAUTION:
Be sure that no foreign material enters the
final gear case when you check or change
oil.
7. Install the filler bolt and tighten it to the
specified torque.
