4-14 Control Functions
Speed limiter
The speed limiter keeps the throttle from fully
opening even when the throttle lever is
pushed to the maximum. Turn the adjusting
screw to limit the maximum engine power
available and decrease the maximum speed
of the ATV.
When finish the speed adjustment, you must
tighten the locknut.

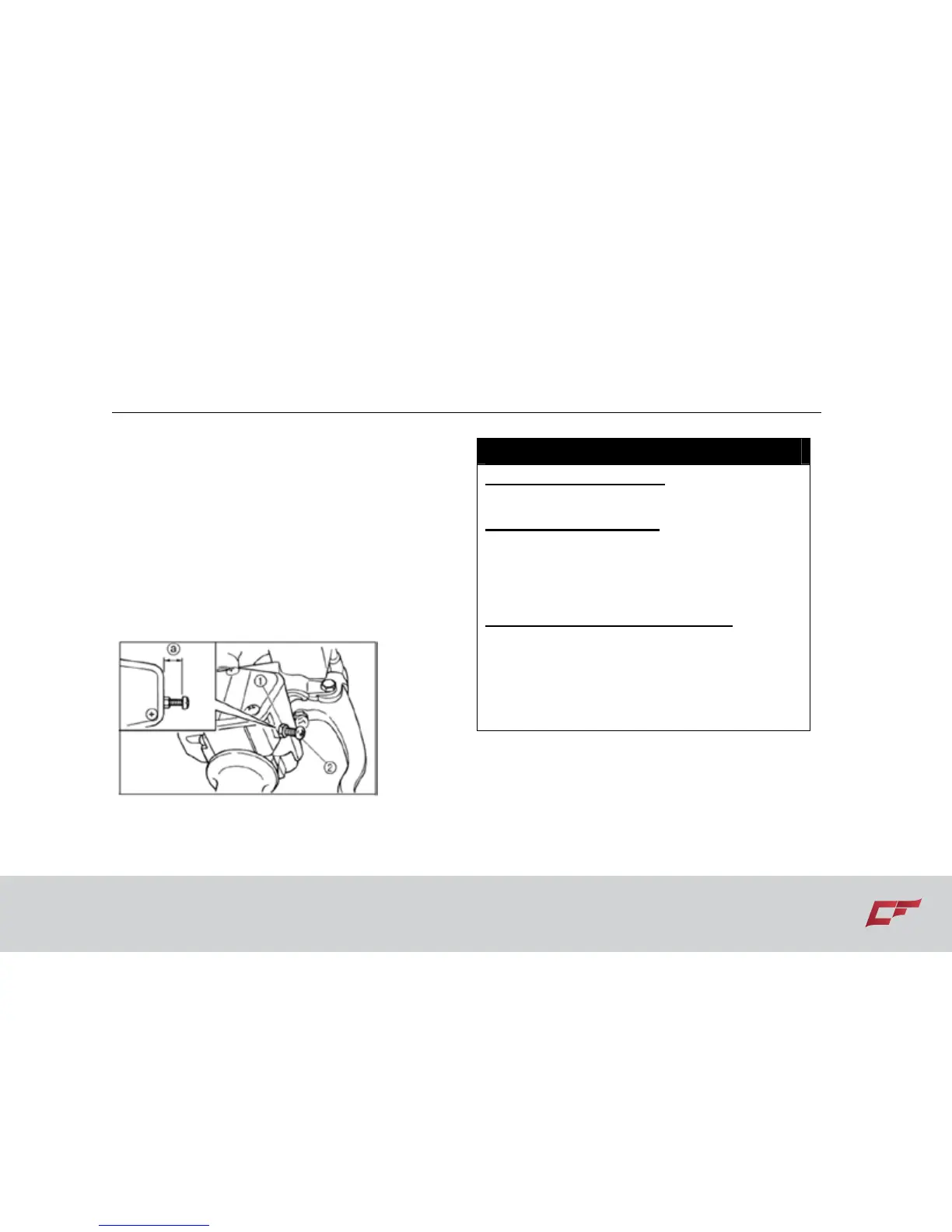

1. Locknut 2. Adjusting screw
a. No more than 12 mm
WARNING
POTENTIAL HAZARD
Improper adjustment of the speed limiter
WHAT CAN HAPPEN
The throttle cable could get damaged.
The ATV may go out of control. The operator
may have an accident and/or be injured.
HOW TO AVOID THE HAZARD
Do not turn the adjusting screw out more than
12 mm (0.47 in). Always make sure that the
throttle lever free play is adjusted to 3-5 mm
(0.12-0.20 in).
Foot brake pedal – all wheel brakes
The foot pedal is located on the right side of
the ATV just above the floor pan. Pushing
