Periodic Maintenance and Adjustment 8-31

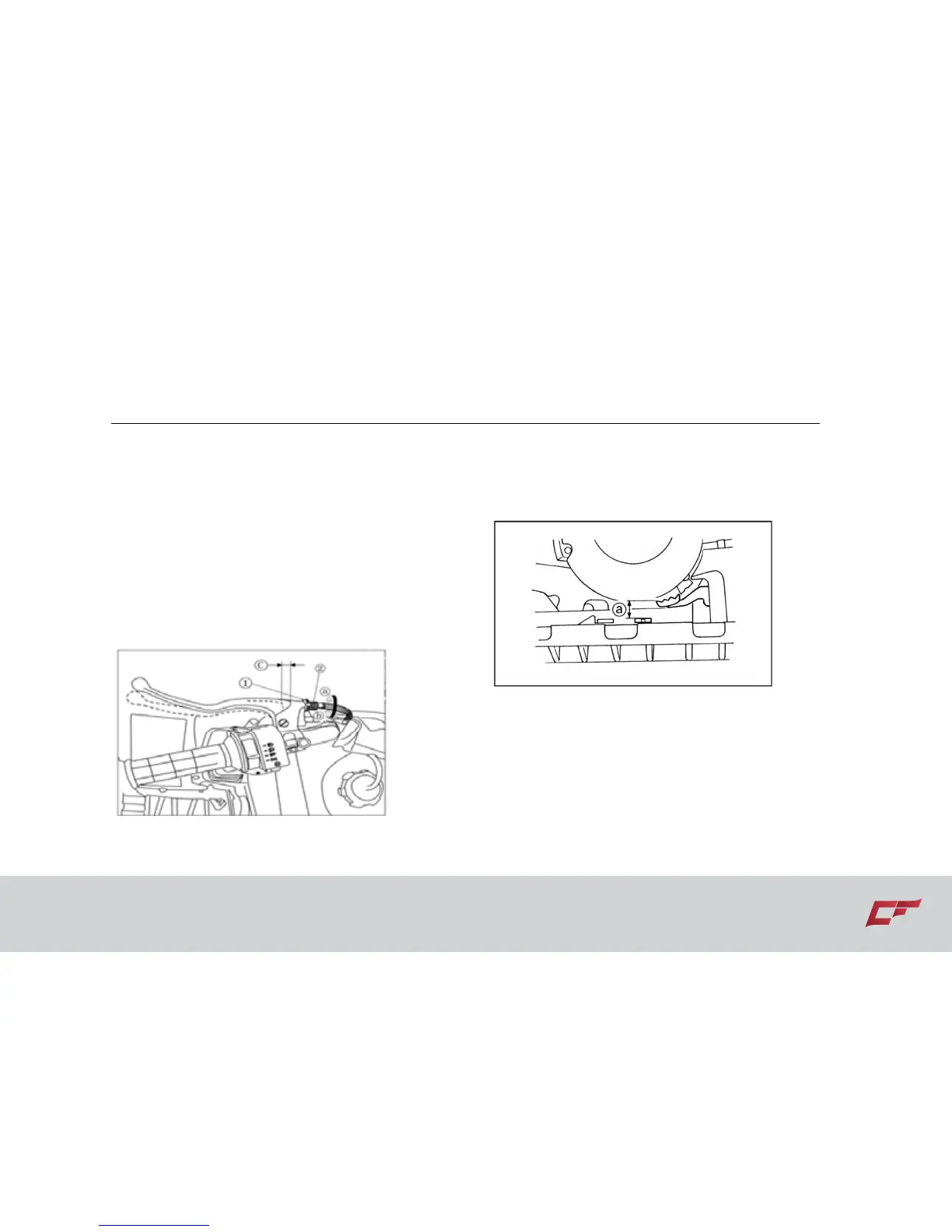

Adjusting the parking brake lever
The free play of the parking brake lever
should be between 0.5-1.5mm.
● Loosen the locknut.
● Turn the adjusting bolt in direction A to
increase free play, and in direction B to
decrease free play.
● Tighten the locknut.
If correct free play cannot be obtained,
ask a dealer to make that adjustment.
1. Locknut 2. Adjusting bolt ⓒ.Brake lever free play
Adjusting the brake pedal
The top of the brake pedal should be
positioned 95 mm above the top of the floor
board. If not, ask a dealer to adjust it.
ⓐ.Distance between brake pedal and footrest
