8-16 Periodic Maintenance and Adjustment
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3m·kgf, 17 ft·lbf)
6. Check for oil leaks. If an oil leak is found,
check for the source.
Cooling system
1. Place the ATV on a level surface.
2. Check the coolant level in the coolant
reservoir when the engine is cold, as the
coolant level will vary with engine
temperature.
NOTE:
The coolant should be between the
minimum and maximum level marks.

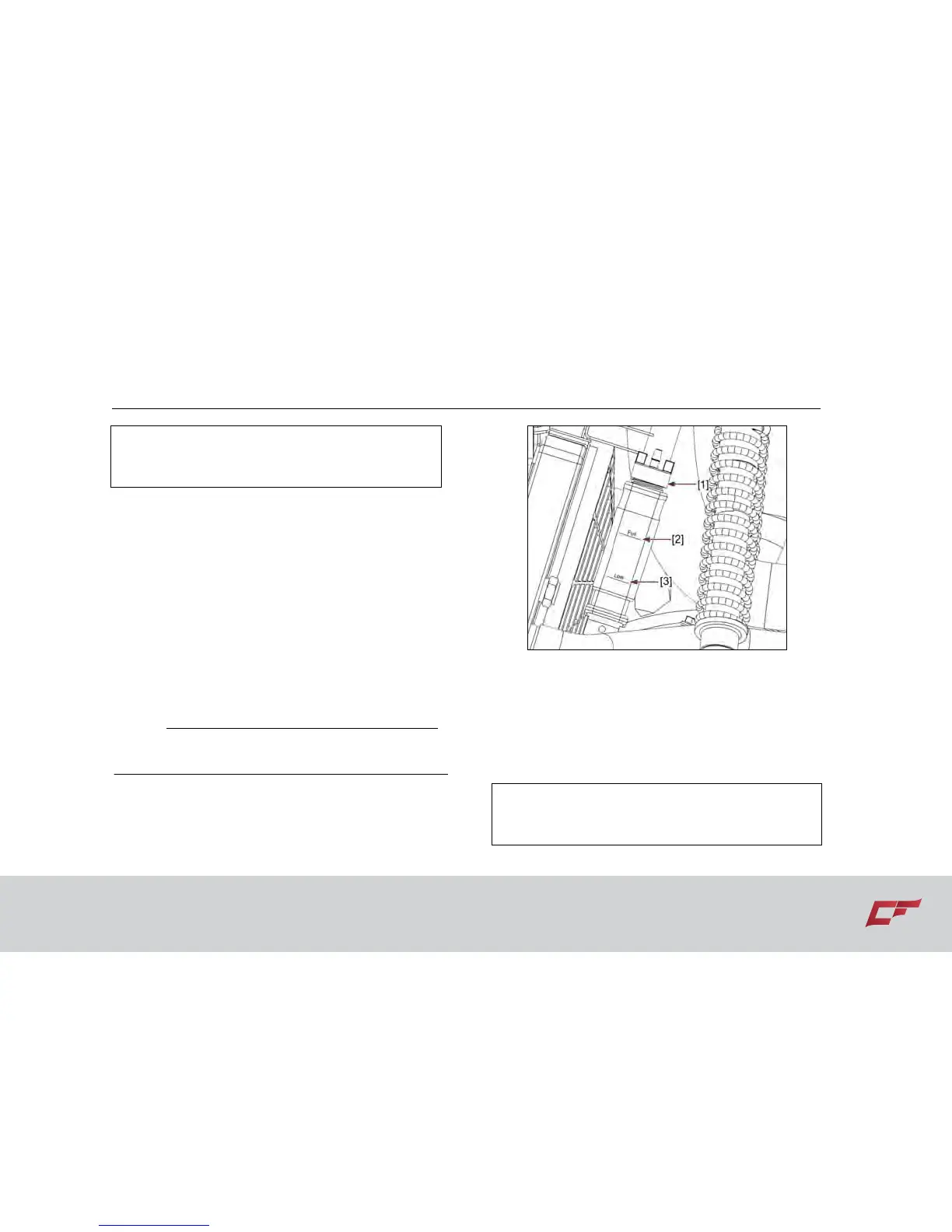

1. Coolant reservoir tank cap
2. Maximum level mark 3. Minimum level mark
3. If the coolant is at or below the minimum
level mark, remove the reservoir cap. Add
coolant to the maximum level mark, replace
the reservoir cap, and install the side panel.
Coolant reservoir capacity
(up to the maximum level mark):
0.3 L(0.26 lmp qt, 0.31 US qt)
