8-34 Periodic Maintenance and Adjustment

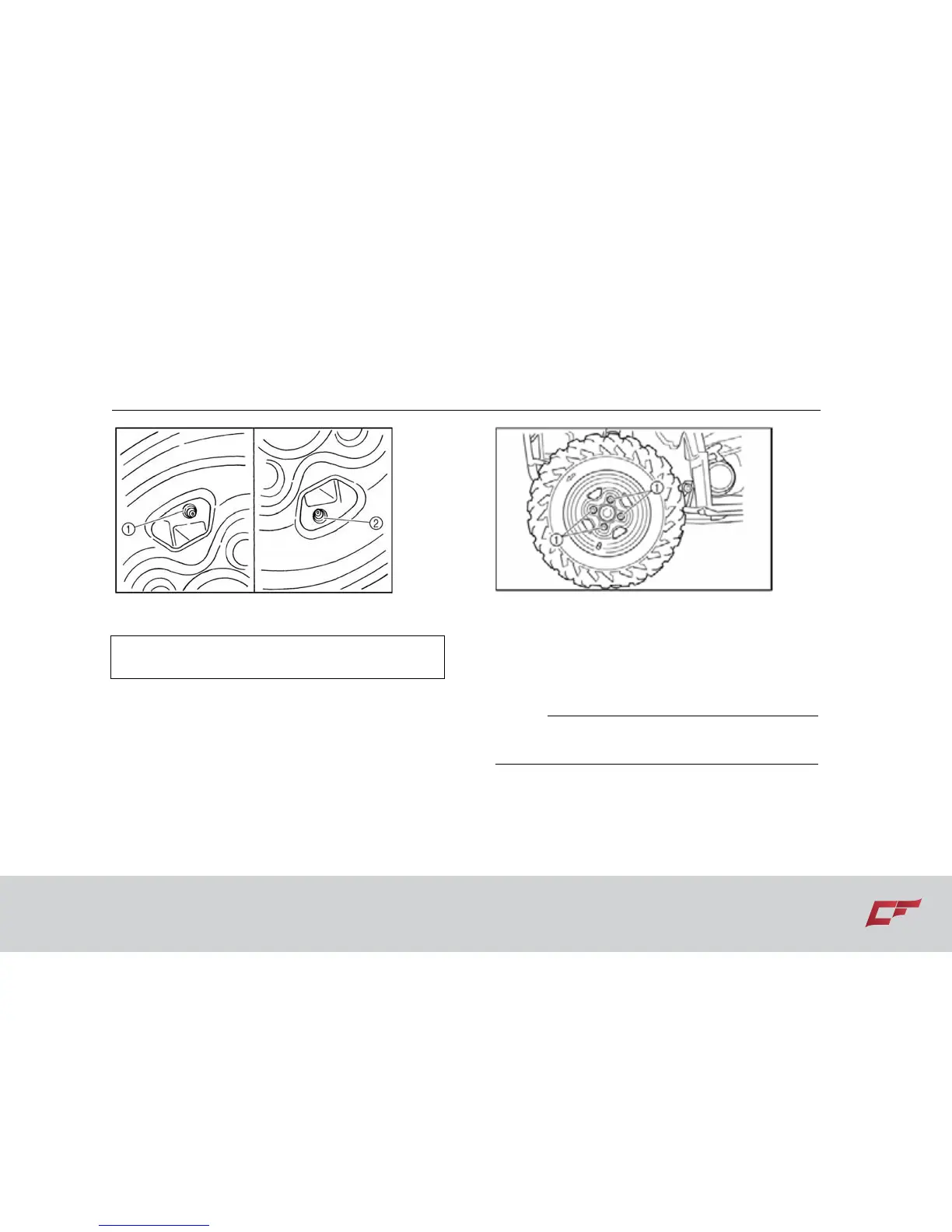

1. Upper knuckle 2. Lower knuckle
Recommended
lubricant: Lithium-soap-based grease
Wheel removal
1. Loosen the wheel nuts.
2. Elevate the ATV and place a suitable
stand under the frame.
3. Remove the nuts from the wheels.
4. Remove the wheels.
1． Nut (×4)
Wheel installation
1. Install the wheel and the tapered nut.
NOTE:
The arrow mark on the tire must point in the
direction of the wheel rotation.
Tapered nuts are used for both the front
and rear wheels. Install the nut with its
tapered side towards the wheel.
To Next Page
