1CAUTION:
A special battery charger is required for
recharging a sealed-type battery.
3. Always make sure the positive and
negative connections are correct when
putting the battery back in the ATV.
Fuse replacement
1. The ignition fuse and the fuse box are
located under the seat.
2. If a fuse is blown, turn off the ignition
switch and the switch for the circuit in
question. Then, install a new fuse of the
specified amperage.
Turn on the ignition switch. If the fuse
immediately blows again, consult a dealer.

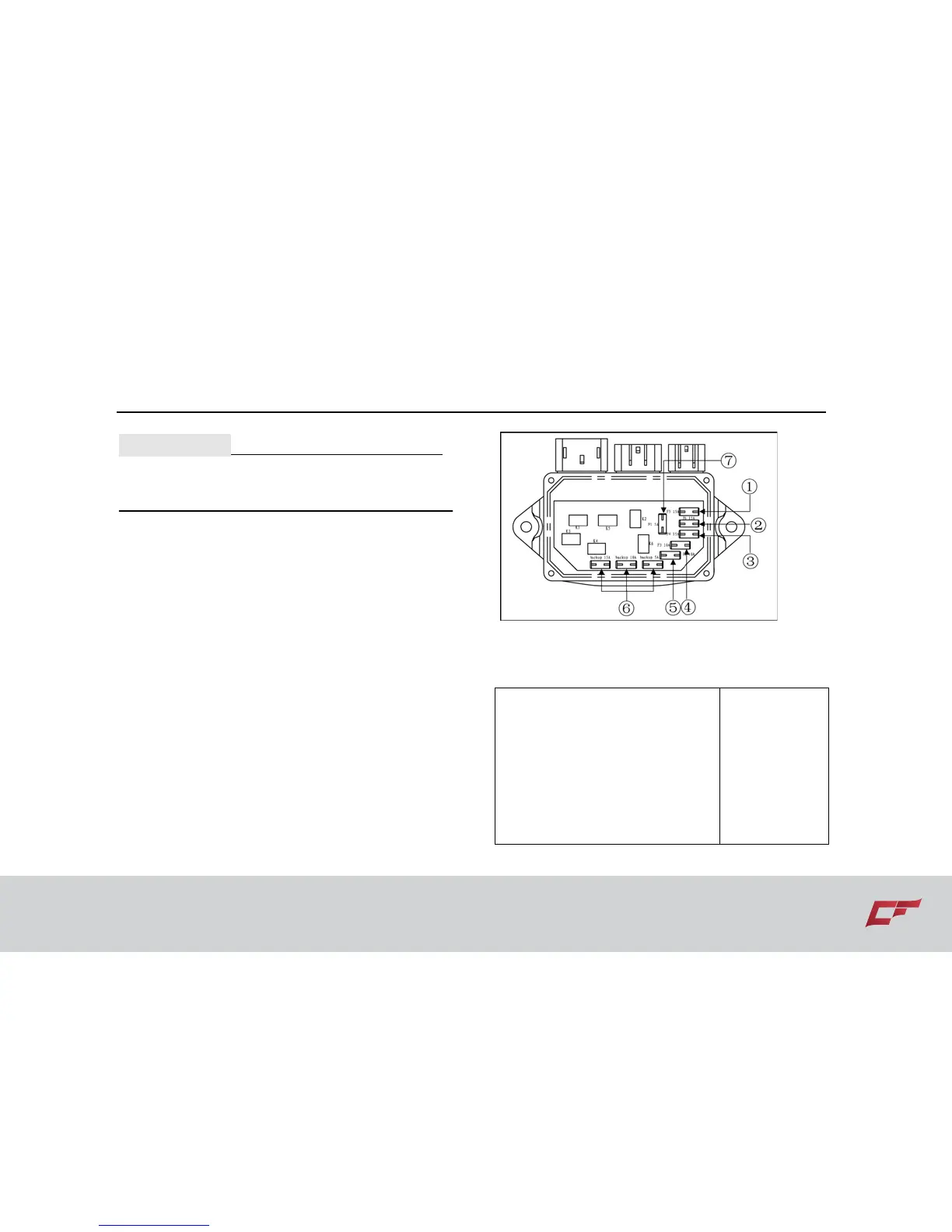

1. Dash board、ECU switch battery fuse 2. Headlight fuse
3. Auxiliary DC jack fuses 4. EPS、relay fuse
5. Brake、steering fuse 6. Backup fuse
7. Dash board、ECU constant power fuse
Specified fuses:
Dash board
、
ECU switch battery fuse
Headlight fuse
Auxiliary DC jack fuse
EPS、relay fuse
Brake、steering fuse
Backup fuse
Dash board
、
ECU constant power fuse
15A
15A
15A
10A
10A
(5A
、
10A
、
15A)
5A
