2.2.6 Machine body and driver seat
The body is made off plastics.Metal parts that are part of the body design are coated with powder paint for
protection.The driver seat is ergonomically designed to keep all control elements easily reachable and
controllable.Comfortable seat with protective frame and safety belt insures comfortable and safe operation.
2.2.7 Mowing mechanism and gear
The mowing mechanism is made of metal sheet cover, shaft with bearings, knife holders and two massive cutting
knifes. It is driven via V-belt that switches the mechanism on and off via electromagnetic clutch.
2.2.8 Hydraulic system
The front and rear axle are connected with hydraulic armature. Pressure is transferred through oil.
2.3 MARKINGS

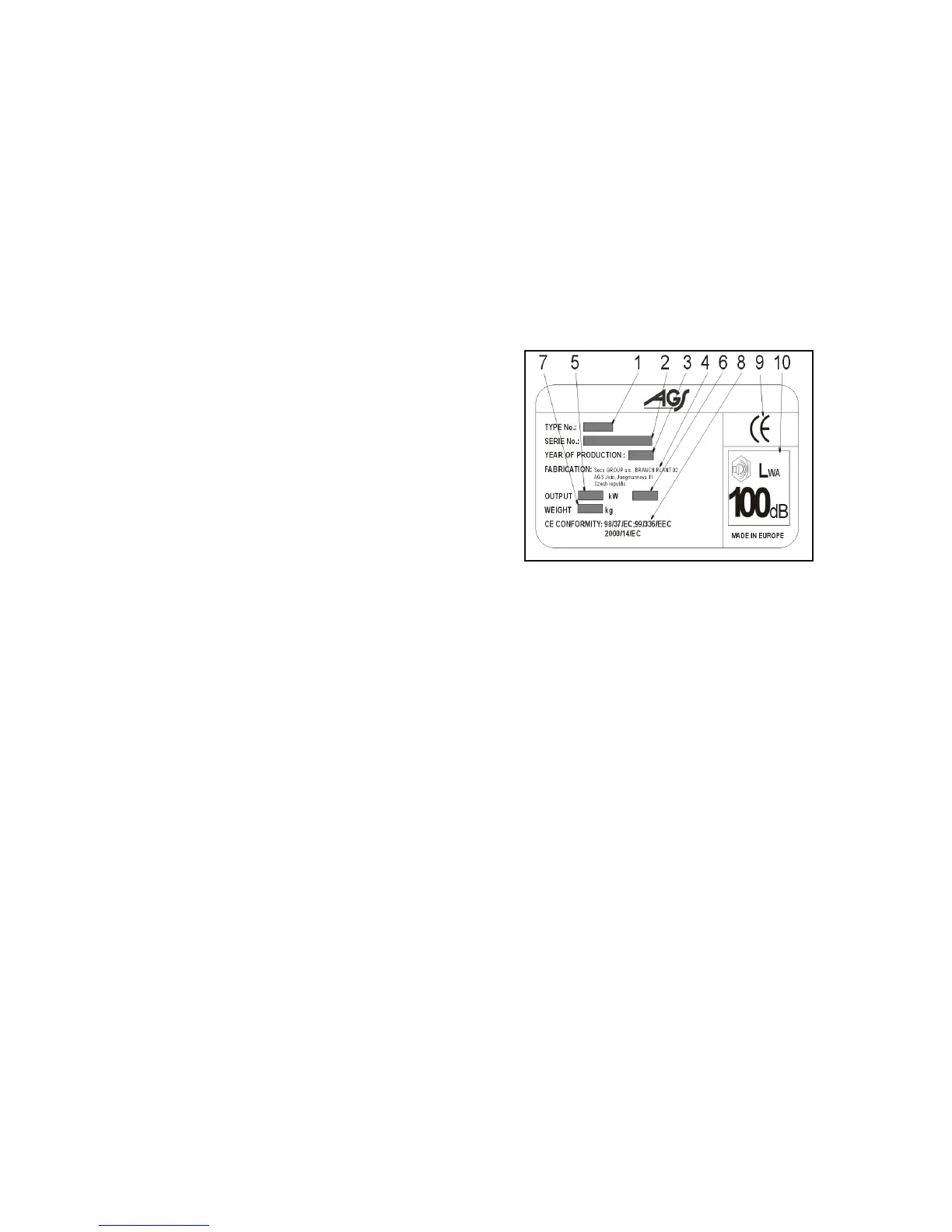

Each self-propelled mowing machine is marked with manufacturer label, located below the seat. The label
includes:
1. Type of machine
2. Serial number
3. Year of production
4. Name and address of the manufacturer
5. Engine output
6. Engine revolutions per minute
7. Weight
8. EC regulations that describes the product conformity
9 Conformity marking approval
10. Guaranteed noise level according to the 2000/14/EC
regulation
The vendor must write the serial number of your machine on the back side of this manual.
