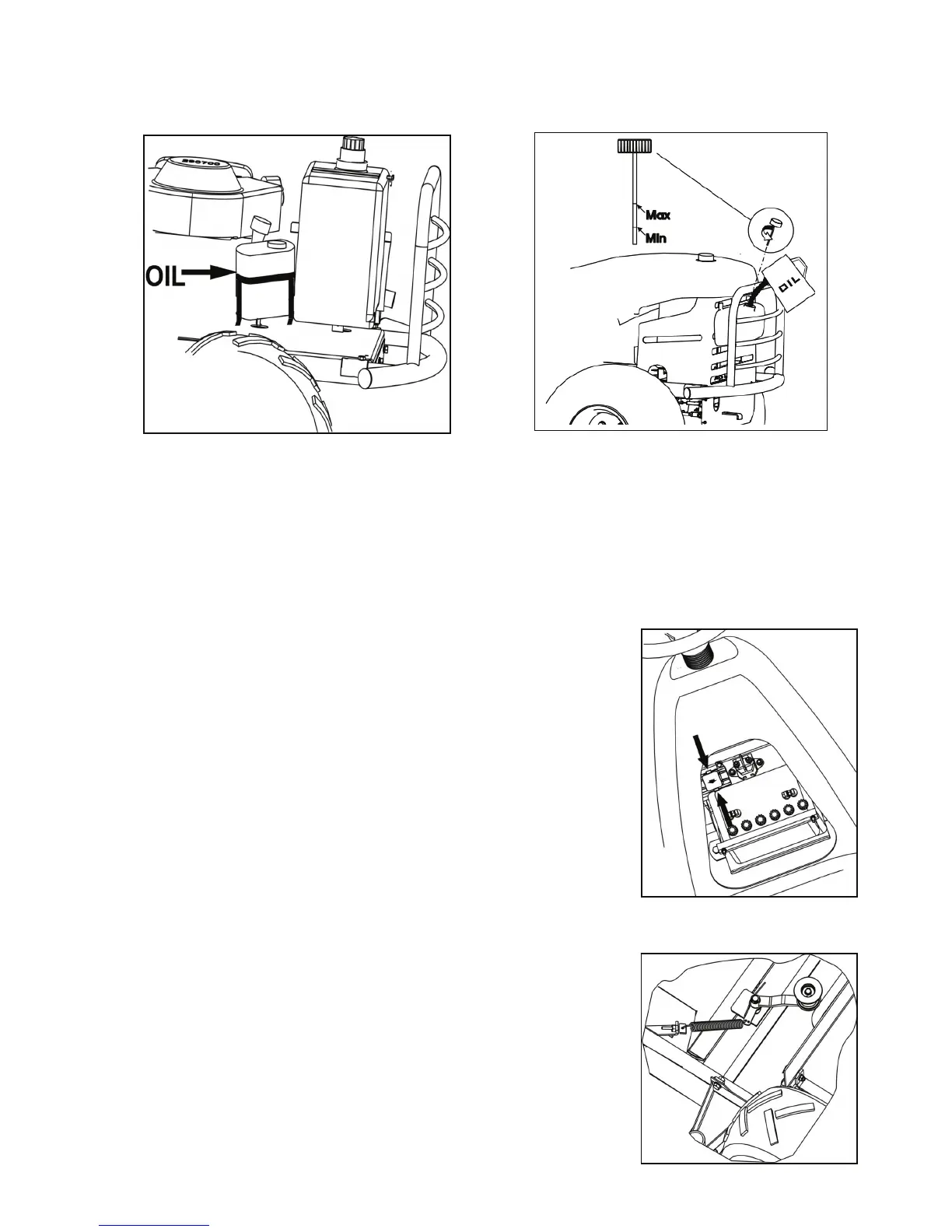

7.5 HYDROSTATIC TRANSMISSION MAINTENANCE
To ensure flawless operation of the transmission, maintain the oil level on the correct marking. If you experience
problems with the transmission contact authorized service centre immediately to prevent serious damages to your
transmission.
model AC 92-18(20) model AC 92-23 4x4
Oil specification
SAE 10W-30, API CD SAE 5W-50 synthetic oil
Oil level
make sure the oil level reaches the
half of the allowed ration
equalizing container
must be between the marking lines on
the lid dipstick
(the total amount of oil in the hydraulic
system is 6l)
7.6 FUSE CHANGE
Loosen the hood fastening screw and lift the hood up.
remove the protective cover, remove the old fuse and insert new one
with the same rating as the old one (15A or 5A).
If you cannot start the engine after the fuse change
or the mowing mechanism cannot be lowered down, contact the nearest
authorized
service centre.
7.7 LIGHT BULB CHANGE
Loosen the hood fastening screw and lift the hood up.
Slightly open the light bulb holder and remove the old bulb out.
Place the new light bulb inside. Bend the light bulb holder back again. Close
the hood.
Model AC 92-23 4x4: Turn the locking knob on the front hood, remove the
cover and follow the procedure described above.
Light bulb type and its power output may be find in the spare part catalogue.
7.8 DRIVING LEVER ADJUSTMENT
If the travel control lever 6.1.5 returns to the "N“ position automatically, you
must perform adjustment. Have this repair and adjustment done at autho
rized
service centre.
7.9 POWER TRAIN MAINTENANCE
Before performing any maintenance or repairs, make sure to switch the
engine off and remove the key from the ignition box. Inspect the V-belt
tension and wear and tear.
Check the conditions of the tensioning mechanism.
46
