PARTS INFORMATION MICRO-TEMP

LT, Model 749

OPERATION AND TECHNICAL MANUAL

Page 64 of 75

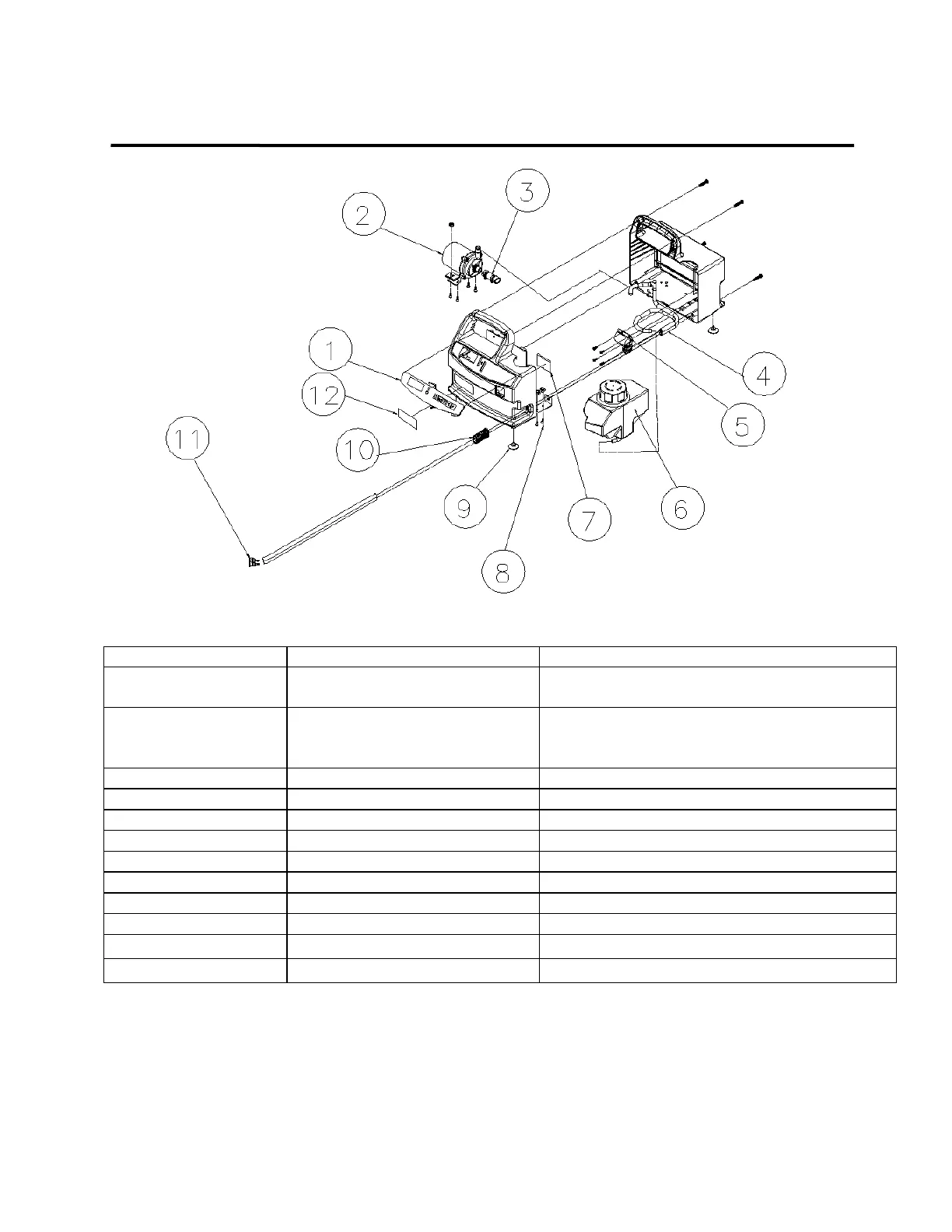

Figure 6-1 Micro-Temp

LT Unit Internal Exploded - Front View

INDEX NUMBER

I.D. NUMBER

DESCRIPTION

78057

78058

Membrane Control Panel LT (100/115V)

Membrane Control Panel (230/240V)

91090

91091

91092

Pump (100V)

Pump (115V)

Pump (230/240V)

70817

Connecting Hose

70238

Twin Black Tubing (0.250 I.D.)

62488

Hose Guard

62490

Reservoir

78080

Sight Window

23027

Enclosure Bracket

78015

Suction Cup Feet

62489

Strain Relief

76600

Coupling (2 required)

57779

Exterior Logo Label
