PARTS INFORMATION MICRO-TEMP

LT, Model 749

OPERATION AND TECHNICAL MANUAL

Page 65 of 75

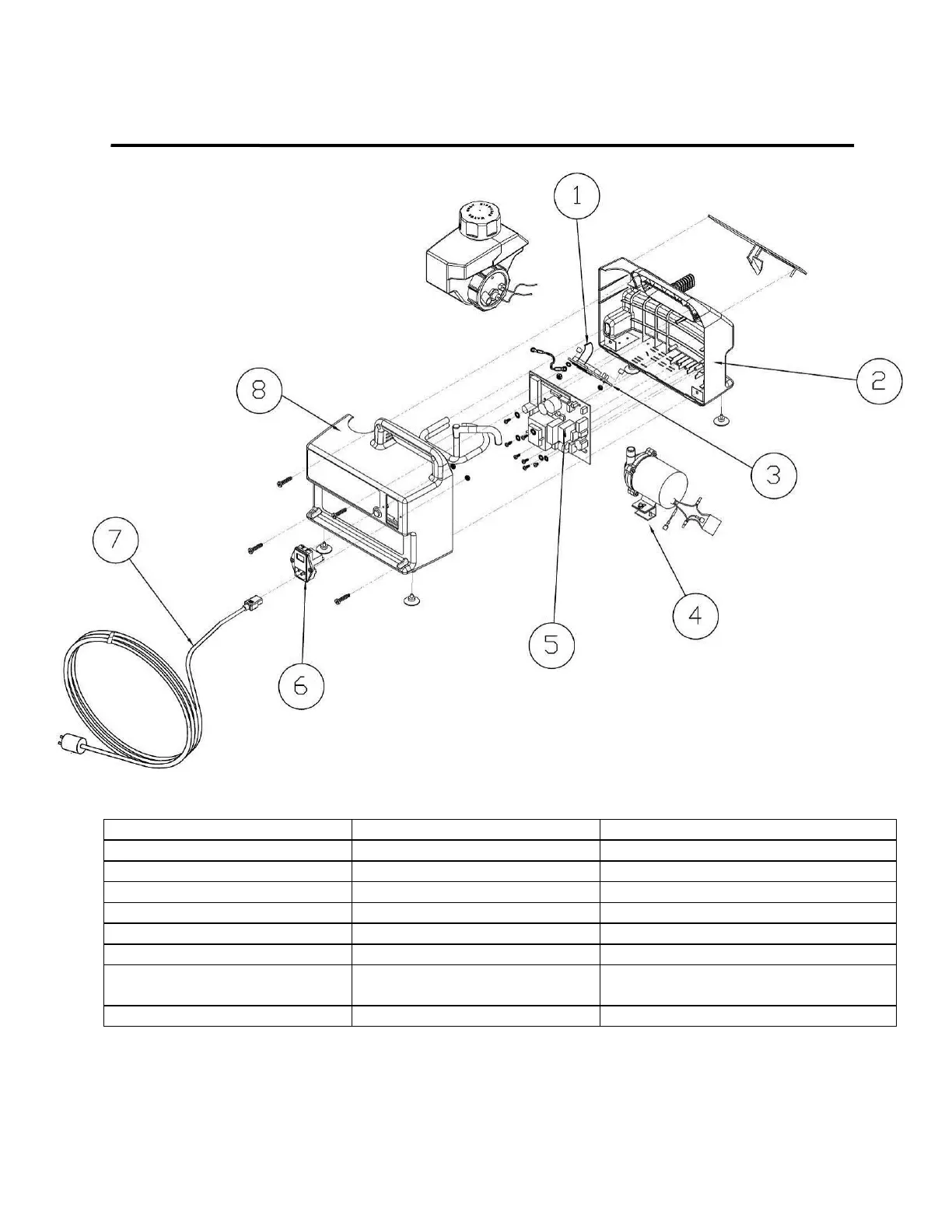

Figure 6-3 Micro-Temp

LT Unit – Internal Exploded – Rear View

INDEX NUMBER

I.D. NUMBER

DESCRIPTION

28352

Display Board Ribbon Cable

78043

Front Enclosure

78032

Display Board

23026

Pump Mounting Bracket

78039

Control Board

65150

Power Switch

37034

37029

Power Cord (100/115V)

Power Cord (230/240V)

78044

Rear Enclosure

Figure 6-4 Micro-Temp

LT Unit - Parts List B
