PARTS INFORMATION MICRO-TEMP

LT, Model 749

OPERATION AND TECHNICAL MANUAL

Page 66 of 75

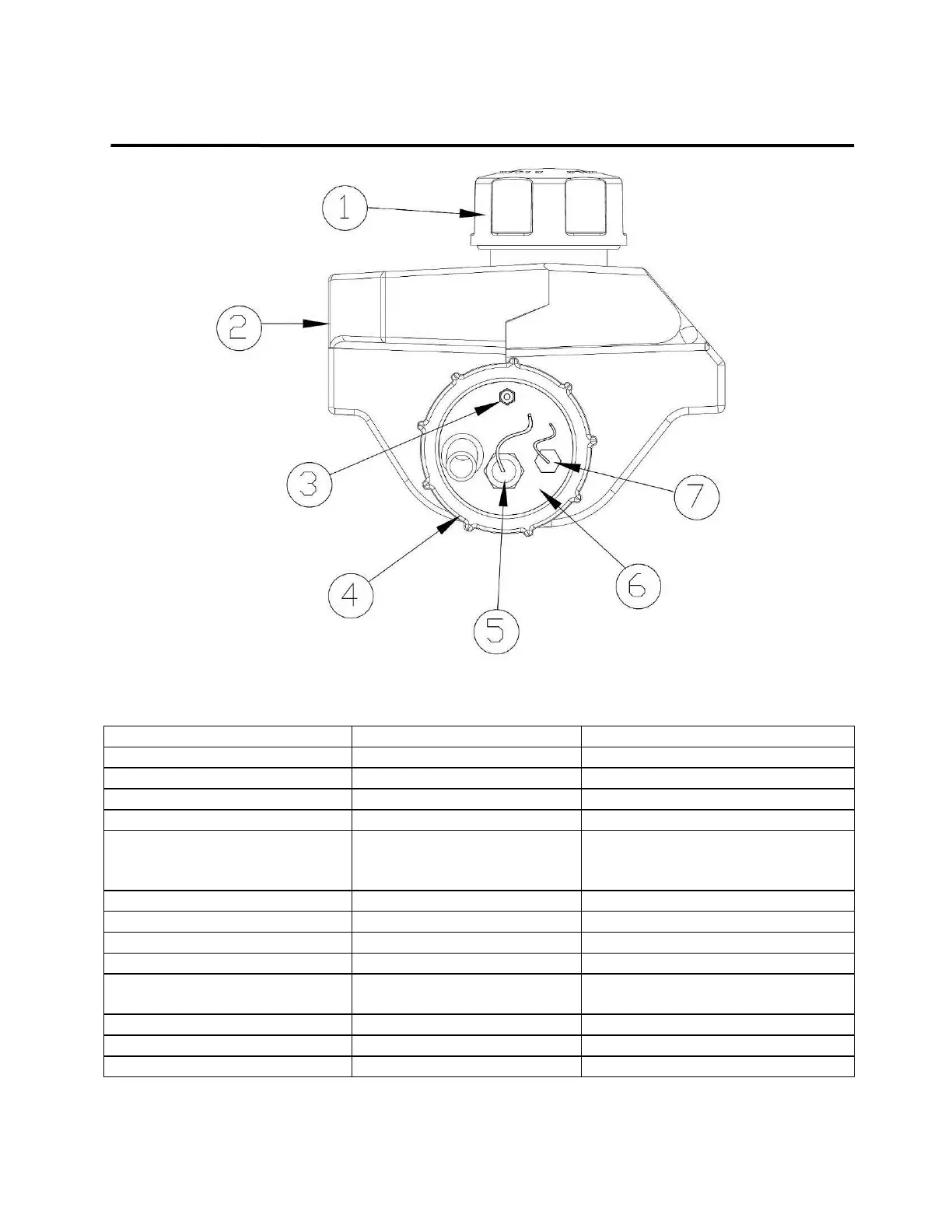

Figure 6-5 Micro-Temp

LT Unit Reservoir – Side View

INDEX NUMBER

I.D. NUMBER

DESCRIPTION

62491

Reservoir Cap

62490

Reservoir

65149

Water Level Sensor

62492

Heater Plate Cap

65160

65161

65162

Heater (100V)

Heater (115V)

Heater (230/240V)

62494

Heater Mounting Plate

41002

Thermistor

Not shown

51118

Black Rubber Reservoir Skirt

Not shown

62647

Brass Jam Nut

Not shown

62646

0.75” OD x0.45” ID Stainless

Steel Washer

Not shown

60654

Rubber Washer

Not shown

51400

Brass Thermistor Fitting

Not shown

78056

O-Ring

Figure 6-6 Micro-Temp

LT Unit - Parts List C

Main Page
