PARTS INFORMATION MICRO-TEMP

LT, Model 749

OPERATION AND TECHNICAL MANUAL

Page 67 of 75

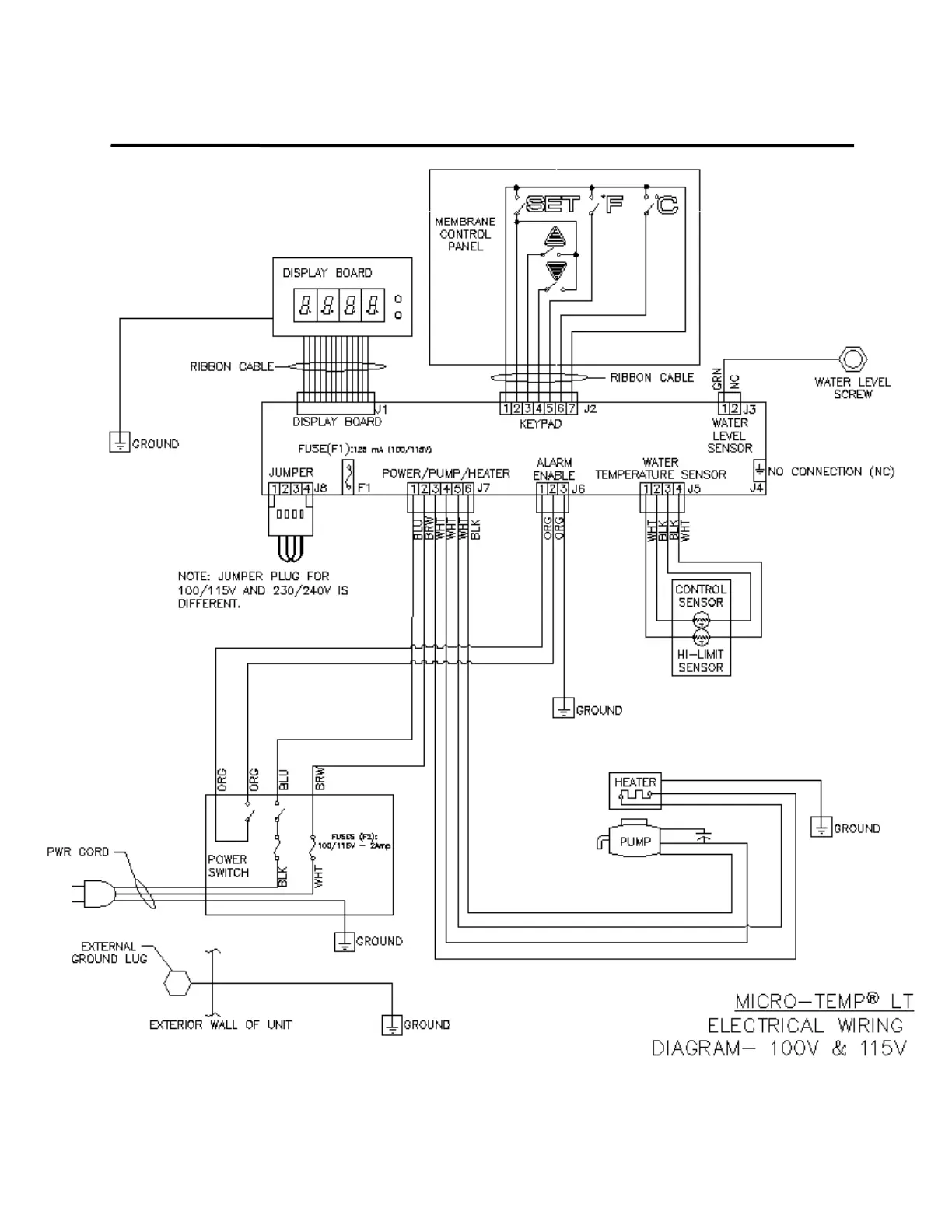

Figure 6-7.A Micro-Temp

LT Electrical Wiring Diagram – 100V/115V
