CSZ MICRO-TEMP LT 749

To Next Page

To Previous Page

PARTS INFORMATION MICRO-TEMP

LT, Model 749

OPERATION AND TECHNICAL MANUAL

Page 68 of 75

Figure 6-7.B Micro-Temp

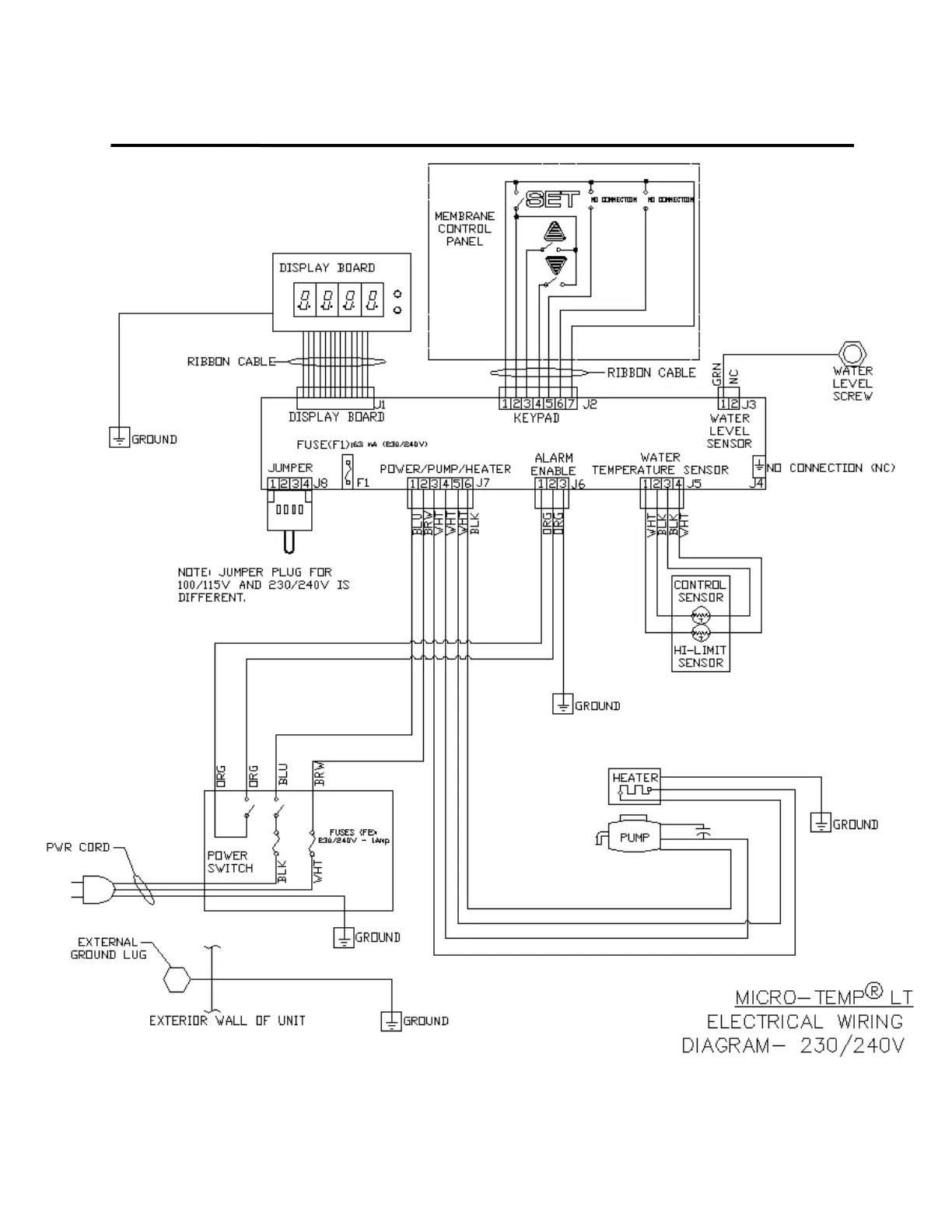

LT Electrical Wiring Diagram – 230V/240V
