CTC Union SHDTU03-ET10R User Manual

Chapter 1. Introduction
1-7
1
1
.
.
5
5
R
R
e
e
a
a
r
r
P
P
a
a
n
n
e
e
l
l

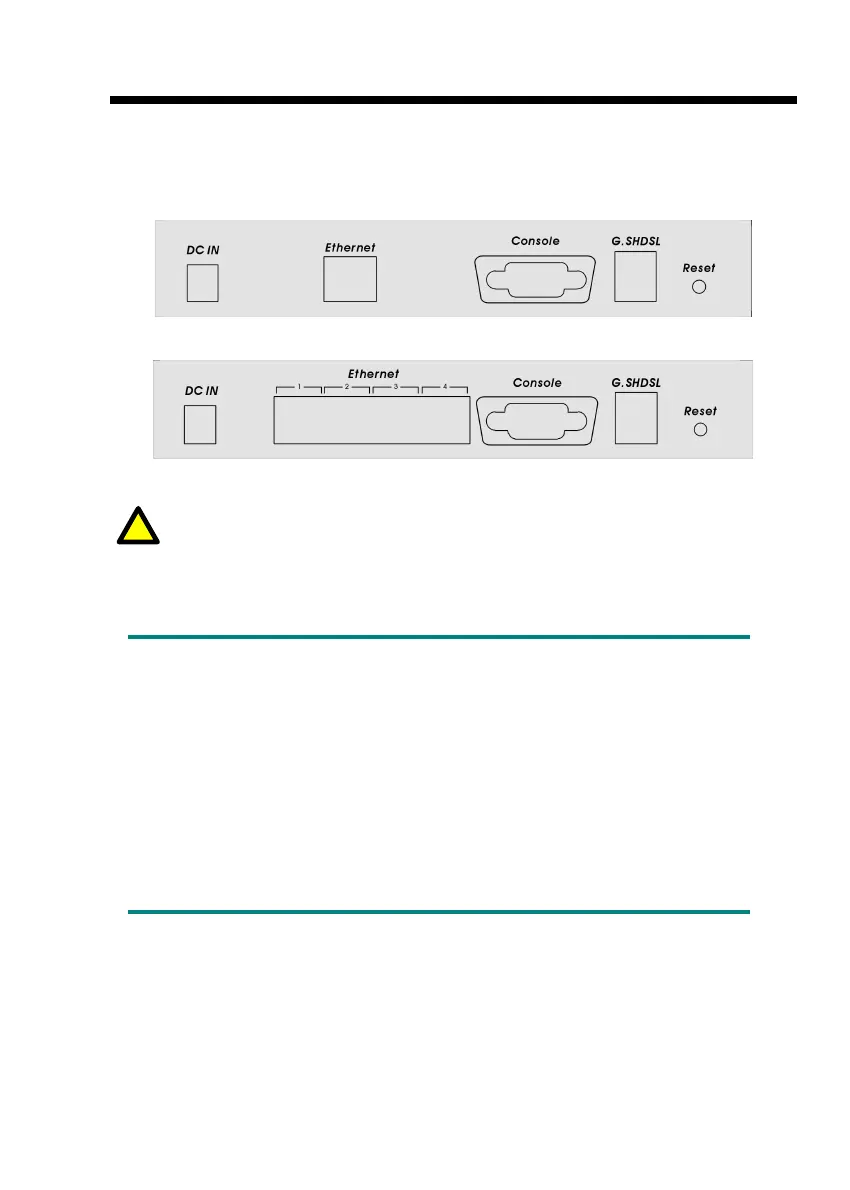

The rear panel of SHDSL router is where all of the connections are made.
Rear Panel of SHDTU03/ET10R router with or without firewall
Rear Panel of SHDTU03/ET10RS router with or without firewall
!
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication
line cord.
Connectors Description of 1-port router
DC IN Power adaptor inlet: Input voltage 9VDC
Ethernet Ethernet 10BaseT for LAN port (RJ-45)
Console RS- 232C (DB9) for system configuration and maintenance
G.SHDSL SHDSL interface for WAN port (RJ-11)
Reset Reset button for factory default
Connectors Description of 4-port router
DC IN Power adaptor inlet: Input voltage 9VDC
Ethernet (1,2,3,4) 10/100BaseT auto-sensing and auto- MDIX for LAN port (RJ-45)
Console RS- 232C (DB9) for system configuration and maintenance
G.SHDSL SHDSL interface for WAN port (RJ-11)
Reset Reset button for factory default
