Chapter 3. Set-Up
3-13

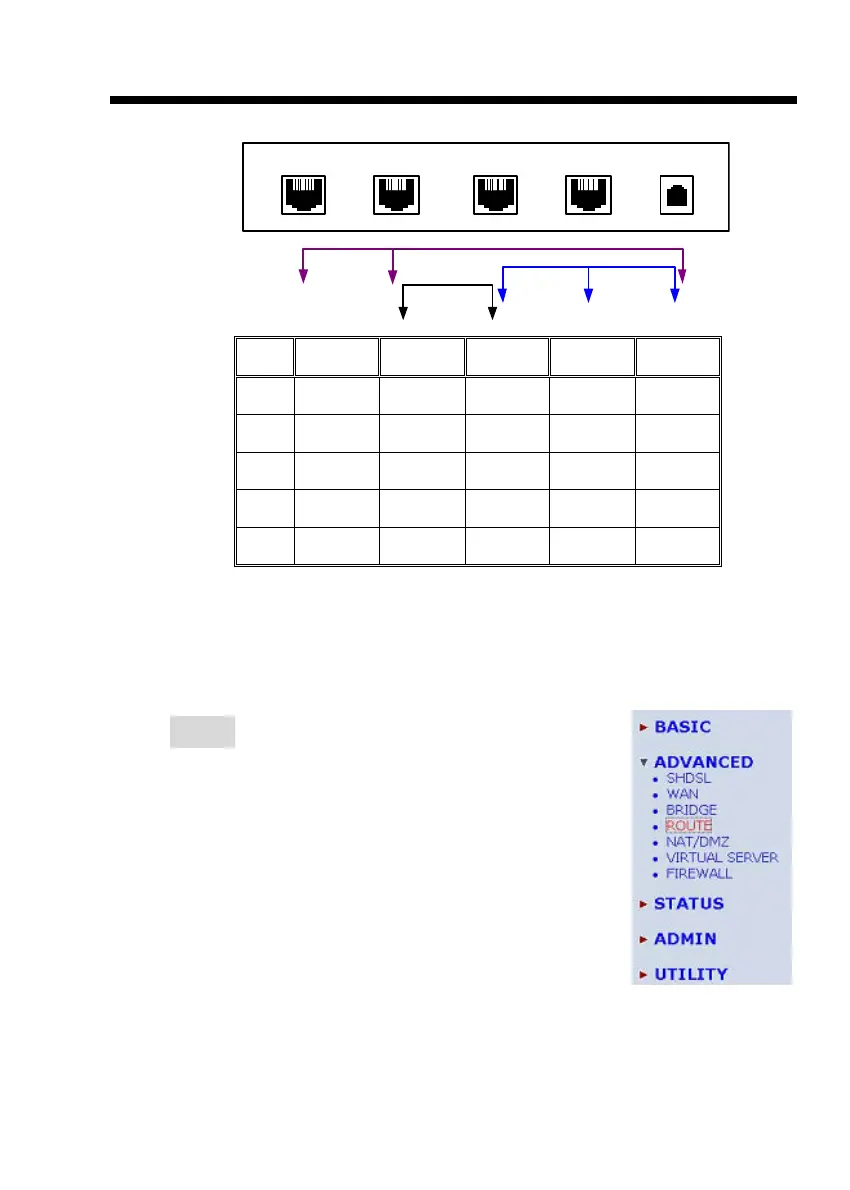

WANLAN1 LAN2 LAN3 LAN4
Group 1
Group 2
Group 3
No LAN1 LAN2 LAN3 LAN4 WAN
1
? ? ? ? ?
2
? ? ? ? ?
3
? ? ? ? ?
4
? ? ? ? ?
5
? ? ? ? ?
Route
If the Router is connected to more than one network, it may be
necessary to set up a static route between them. A static route is a pre-
determined pathway that network information must travel to reach a
specific host or network.
With Dynamic Routing, you can enable the Router to automatically
adjust to the physical changes in the network’s layout. The SHDTU03
G.SHDSL Firewall Router, using the RIP protocol, determines the
network packets’ route based on the fewest number of hops between
the source and the destination. The RIP protocol regularly broadcasts
routing information to other routers on the network.
