Cub Cadet 6X4 User Manual

Chapter 9 - Electrical
291

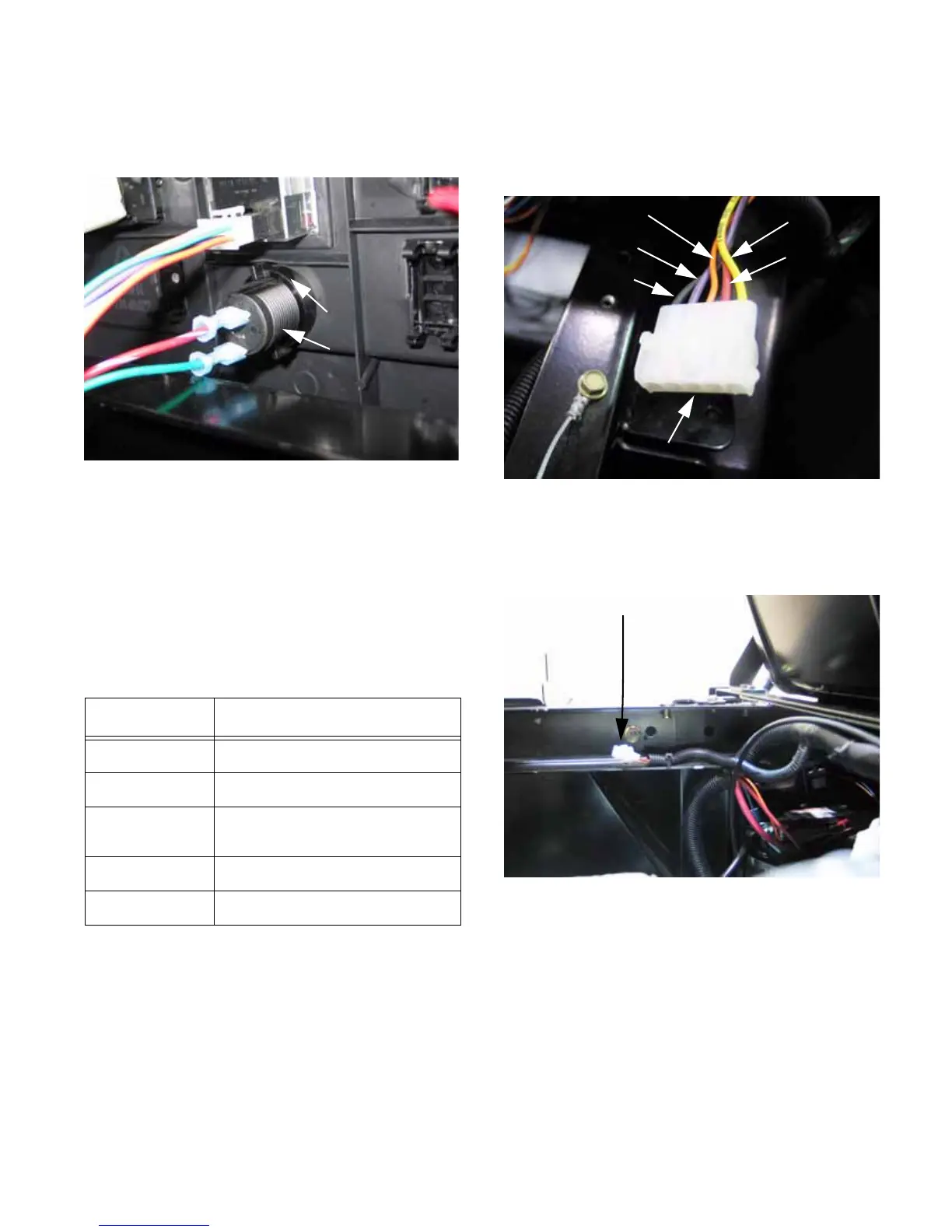

26. The 12V. Power Outlet is located directly below
the Warning Light Cluster / Hour Meter in the
dash panel. See Figure 9.38.
• The outlet is secured to the dash by a wingnut
on the opposite side of the panel. The outlet is
D-shaped to fit into a D-shaped hole in the
panel, so it does not rotate.
• To remove the outlet, disconnect the wires and
remove the wingnut.
27. The wire connections to the Accessory Har-
ness Plug are described in the table below:
Wire Function
Red
Bed lift
Yellow
Bed lift
Orange
Power supply when key is in any
position other than STOP
Black
Rear accessory
Purple
Rear accessory
Figure 9.38
Wing nut
12V. Power outlet
• The accessory harness plug itself is located near
the fuse and relay center. It is the connection
point for the accessory harness.
See Figure 9.39.
• The bed lift wires terminate under the bed, near
the front of the upper frame channel on the
driver’s side. See Figure 9.40.
Figure 9.39
Accessory harness plug
Orange
Purple
Black
Yellow
Red
Figure 9.40
Bed lift wires
