Ex Series Ex3200

REF

NO.

PART NUMBER DESCRIPTION QTY

1 CY-129150-14200 TAPPET 6

2 CY-129150-14400 ROD, PUSH 6

3 CY-129129-14580 CAMSHAFT ASSY 1

4 CY-129150-02450 METAL, THRUST CAM 1

6 CY-129150-14101 GEAR, CAMSHAFT 1

7 CY-22512-070140 KEY 7X 14 1

8 CY-26106-080142 BOLT 8X 14 PLATED 2

9 CY-119803-25050 SHAFT, IDLE GEAR 1

10 CY-119802-25101 GEAR ASSY, IDLE 1

13 CY-119802-25071 BUSH, IDLE GEAR 1

14 CY-26106-080402 BOLT M 8X 40 PLATED 3

15 CY-129150-25301 BOLT, INJECTION PUMP GEAR 4

16 CY-119802-25901 GEAR, PUMP 1

17 CY-129150-01881 GASKET, (NON ASB.) 1

18 CY-129150-26000 GEAR ASSY, HYD PUMP CAM 1

19 CY-129150-26050 BRACKET, HYD PUMP GEAR 1

21 CY-24105-060064 BALL BEARING 2

22 CY-158552-51151 FLANGE 1

23 CY-22217-140000 SPRING WASHER 14 1

24 CY-26776-140002 LOCK NUT M14 PLATED 1

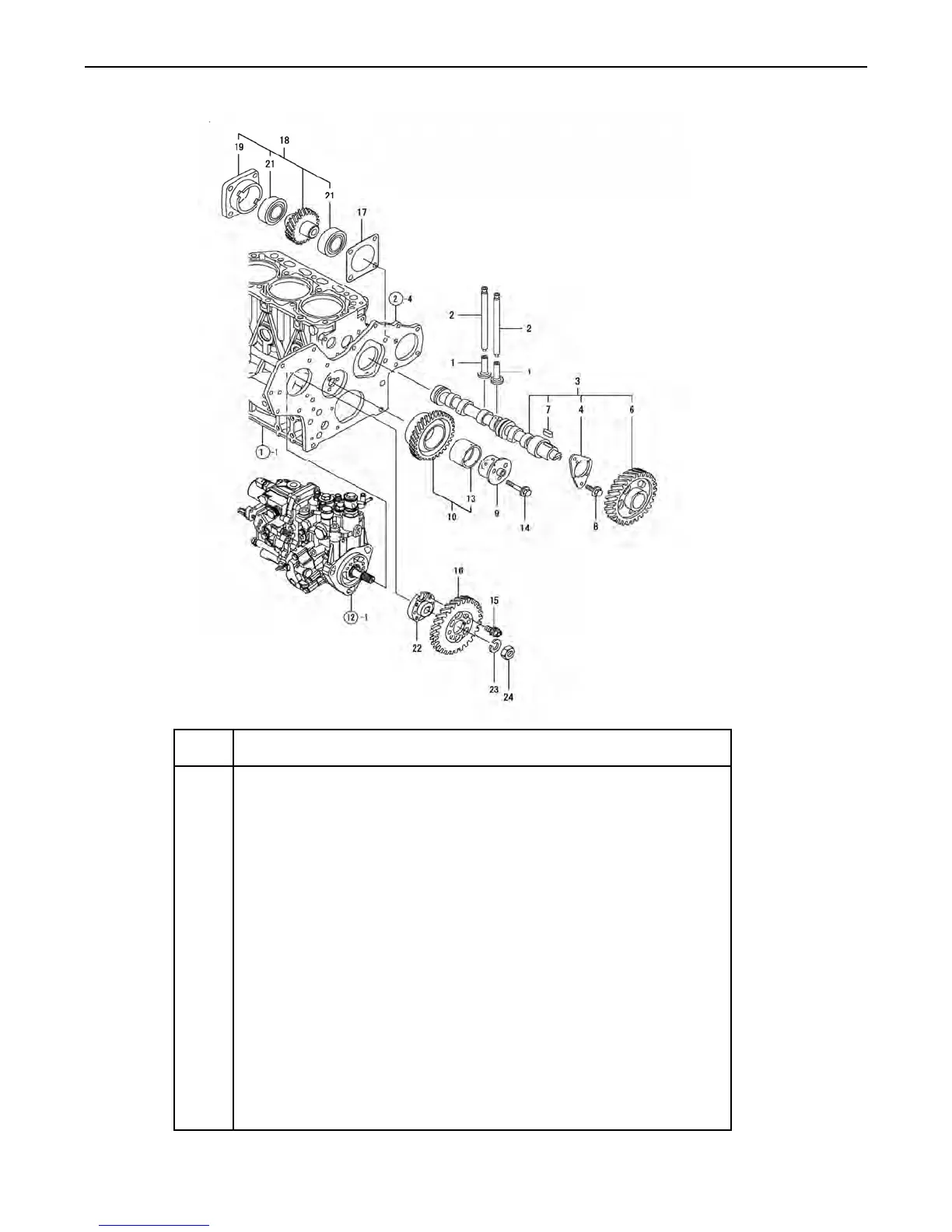

FIG. 7. CAMSHAFT & TIMING PARTS
