Ex Series
Ex3200
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY-194197-21170
PLUG 17,BORE
1
2
CY-1A8160-24300
CENTER PLATE COMP
1
3
CY-1A8160-24400
STUD, BOLT 10X75
2
4
CY-26216-120552
STUD M12X 55 PLATED
1
5
CY-26013-100802
BOLT 10X80
6
6
CY-26366-120002
U-NUT M12
1
7
CY-22312-100180
PARALLEL PIN 10X 18
2
72

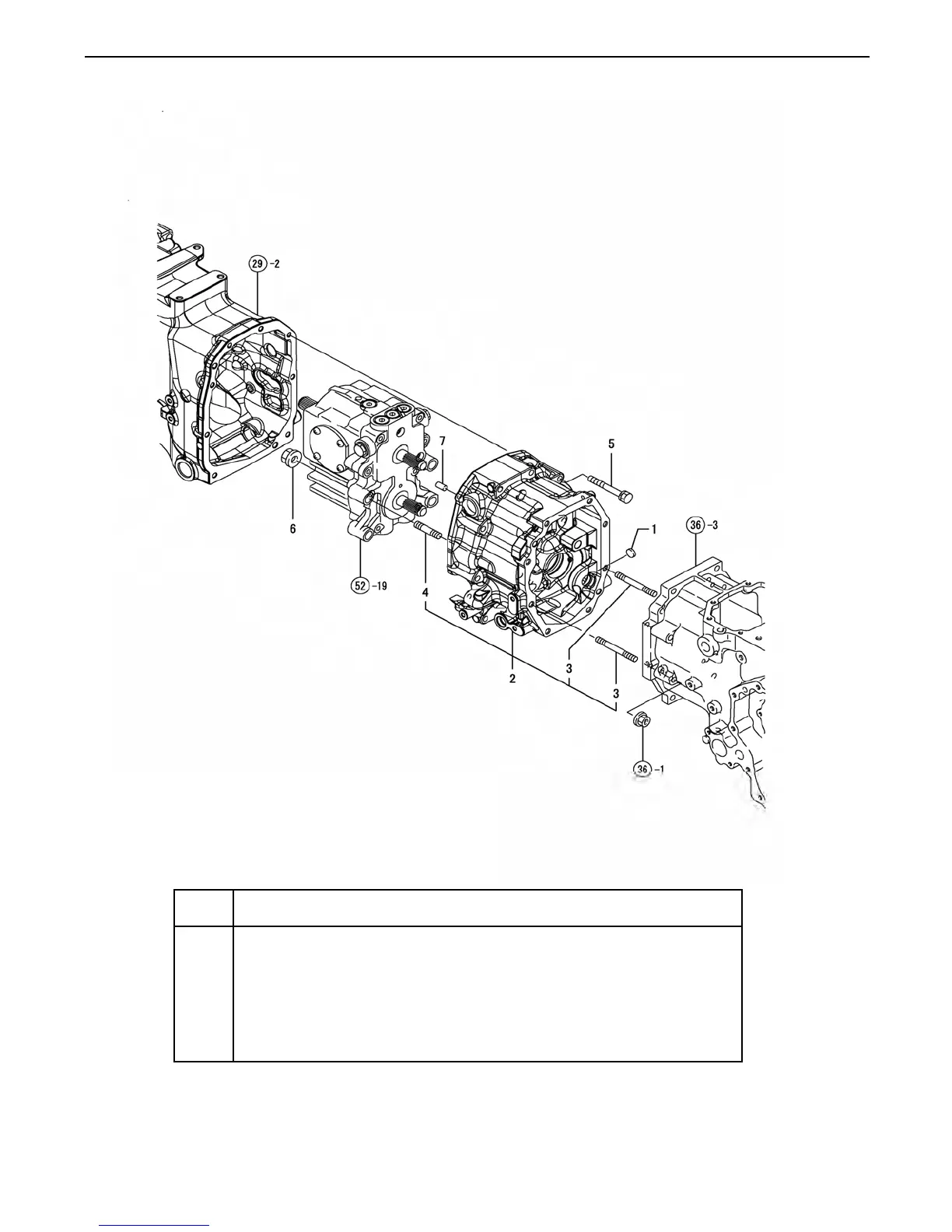

FIG. 37. CENTER PLATE
Copyright 2007 Cub Cadet Yanmar LLC
71
73
Table of Contents
Engine Section Index
3
Cylinder Block
5
Gear Housing
6
Oil Pan & Rear Engine Plate
7
Cylinder Head & Valve Cover
8
Intake Manifold
10
Table of Contents
11
Exhaust Manifold & Muffler
11
Camshaft & Timing Parts
12
Ref no
12
Part Number
12
Qty
12
Crankshaft & Piston
13
Hydraulic Pump
14
Bolt M 8X 35
14
Bolt M8X95
14
Lubricating Parts
15
Cooling Water System
16
Cy-26306-080002 Nut
17
Fuel Injection Pump
18
Governor
20
Fuel Supply Parts
21
Starter
22
Alternator
24
Tractor Section Index
27
Engine Accessories
30
Engine Accessories Mounting
32
Accelerator Lever
34
Exhaust
35
Fuel Tank
36
Fuel Tank Mounting
37
Exhaust Manifold Plate
38
Front Frame
39
Front Weight Bracket
40
Center Pin
41
Tie Rod
42
Ring Gear
43
Differential Gear
44
Propeller Shaft
45
Front Drive Shaft
46
Front Axle Case
47
Front Gear Case
48
Front Shaft
50
Front Spindle
51
Shaft Cover
52
Front Wheel Tire (Bar)
53
Front Wheel Tire (Turf)
54
Front Wheel Tire
55
Hub Bolt (Front)
56
Steering Wheel
57
Power Steering Cylinder
58
Power Steering Valve
59
Power Steering Lines
60
Clutch Housing
62
Docking Bolt
63
Single Clutch
64
Clutch Shaft
65
Clutch Release
66
Bearing Sleeve
67
Clutch Pedal
68
Transmission Case
70
Center Plate
72
Bearing Retainer
73
Oil Strainer
74
Input Gear
75
Reduction Shaft
76
Counter Shaft
77
P.T.O. Drive Shaft
78
P.T.O. Shaft
79
P.T.O. Shield
80
Range Lever
81
Range Lever Parts
82
Cruise Control
83
P.T.O. Shifter
84
P.T.O. Lever
85
Front Drive
86
Hydrostatic (HST)
88
HST Link
90
Differential Carrier
93
Rear Housing
94
Differential Lock
95
Final Pinion
96
Final Gear & Rear Axle Shaft
97
Rear Wheel Tire (Bar)
98
Rear Wheel Tire (Turf)
99
Rear Wheel Tire
100
Hub Bolt (Rear)
101
Hydraulic Pedal
102
Shock Absorber
104
Brake
105
Brake Pedal
106
Hydraulic Cylinder Case
108
Piston
110
Lift Crank
111
Control Valve
112
Relief Valve
114
Stop Valve
115
Safety Valve
116
Hydraulic Sub Control Valve
118
Hydraulic Control
120
Hydraulic Piping
122
Oil Filter
123
Oil Cooler
124
Hydrostatic (HST) Lines & Filter
125
Wire Harness
126
Battery
128
Switches
129
Seat Switch
130
Lamps
131
Front Lamps
132
Instrument Panel
134
Relay
135
Hood
137
Front Grille
138
Side Cover
140
Hood Frame
142
Dashboard
144
Fender
146
Fender Stay
148
Step
150
Step Auxiliary
152
Seat
154
Seat Belt
156
Labels
158
Labels (Safety)
160
Three Point Link
162
Draft Pin & Top Hook
164
Check Chain Bracket
165
Draw Bar Hitch
166
Safety Frame
168
Rear Bracket
171
MID P.T.O. Kit 59A40014727
172
MID P.T.O. Kit 59A40014727 Controls
174
Front Weight Bracket Extensions
177
Power Beyond Kit 59A40022727
178
Work Lamp
180
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Cub Cadet Yanmar Ex32002 and is the answer not in the manual?
Ask a question
Cub Cadet Yanmar Ex32002 Specifications
General
Brand
Cub Cadet
Model
Yanmar Ex32002
Category
Tractor
Language
English
