Ex Series Ex3200

REF

NO.

PART NUMBER DESCRIPTION QTY

1 CY-1A8160-48100 LINE, HIGH PRESSURE 1

2 CY-198220-48140 FLANGE 1

3 CY-1A8160-48160 PIPE, SUCTION 1

4 CY-198230-48220 HOSE, SUCTION 1

5 CY-198220-48750 CONNECTOR ASSY 1

6 CY-194450-48830 CLAMP 2

7 CY-194464-48850 RUBBER 2

8 CY-23010-035000 CLAMP 35 2

9 CY-23010-044000 CLAMP 44 1

10 CY-23297-350121 RETAINER 1

11 CY-23414-180023 GASKET 18 2

12 CY-24311-000200 O-RING 1A P-20.0 1

13 CY-24311-000200 O-RING 1A P-20.0 1

14 CY-26018-060252 BOLT M 6X 25 4

15 CY-26106-060202 BOLT M 6X 20 PLATED 1

16 CY-26106-060402 BOLT M 6X 40 PLATED 2

17 CY-26106-080162 BOLT M 8X 16 PLATED 1

18 CY-26106-080162 BOLT M 8X 16 PLATED 2

19 CY-26106-100202 BOLT M10X 20 PLATED 1

122

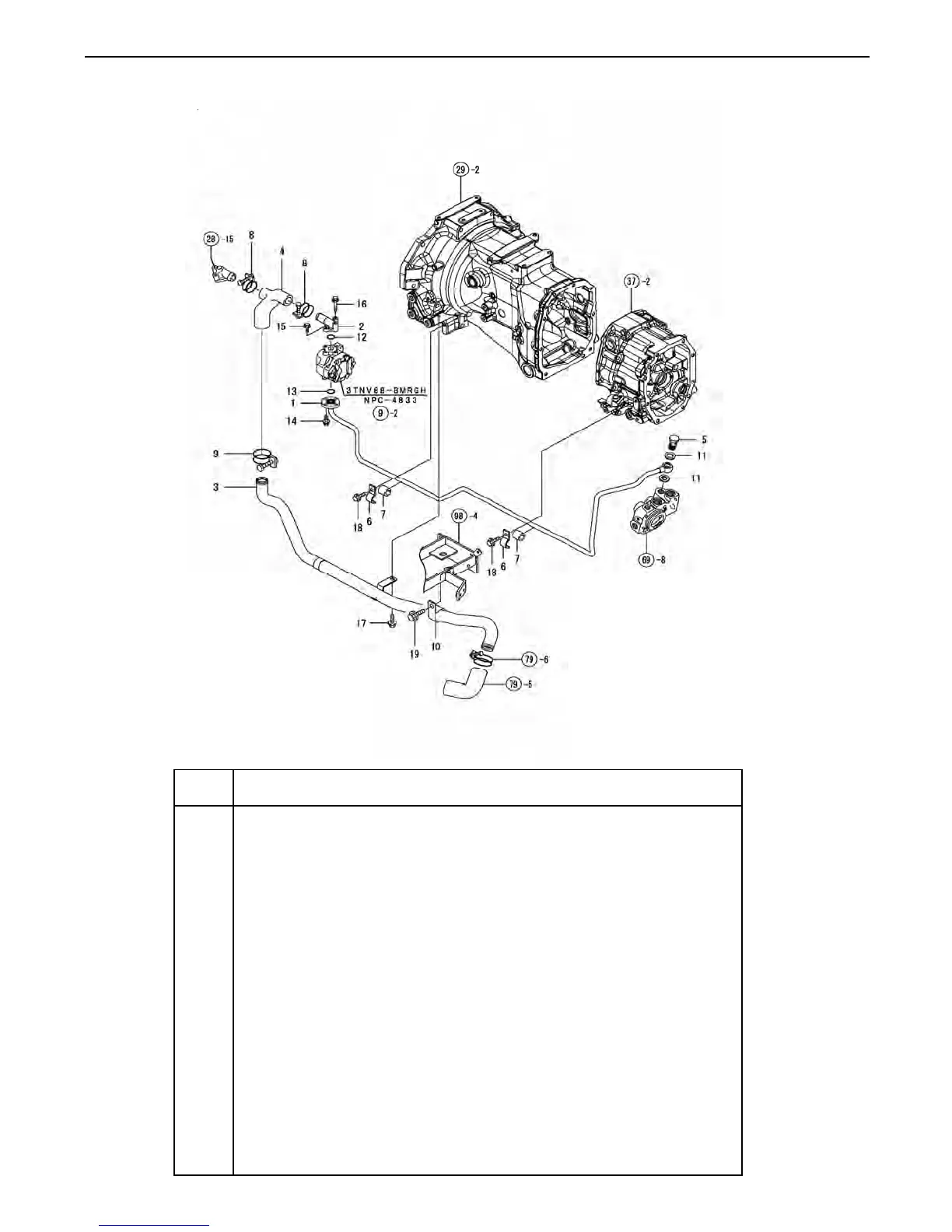

FIG. 78. HYDRAULIC PIPING
