Ex Series Ex3200

REF

NO.

PART NUMBER DESCRIPTION QTY

1 CY-1A8160-29000 NEUTRAL, HST ASSY 1

2 CY-194990-22140 NUT W/WASHER 8 2

3 CY-1A8160-29150 BRACKET, NEUTRAL CMP 1

4 CY-1A8160-29270 BOLT, STOPPER 2

5 CY-1A8160-29280 TURNBUCKLE, NEUTRAL 1

6 CY-1A8160-29300 ARM, RETURN ASSY 1

7 CY-24550-015120 BUSH 15X12 2

8 CY-1A8160-29440 BRACKET, ROLLER ASSY 1

9 CY-22272-000070 CIRCLIP E- 7 1

10 CY-24104-060000 BEARING 6000UUC3 1

11 CY-24550-015120 BUSH 15X12 2

12 CY-198280-29490 SPRING, 1

13 CY-1A8160-29800 PLATE,ADJUST CMP 1

14 CY-22137-140000 WASHER 14,POLISHED 2

15 CY-22272-000120 CIRCLIP E-12 2

16 CY-26106-100302 BOLT M10X 30 PLATED 2

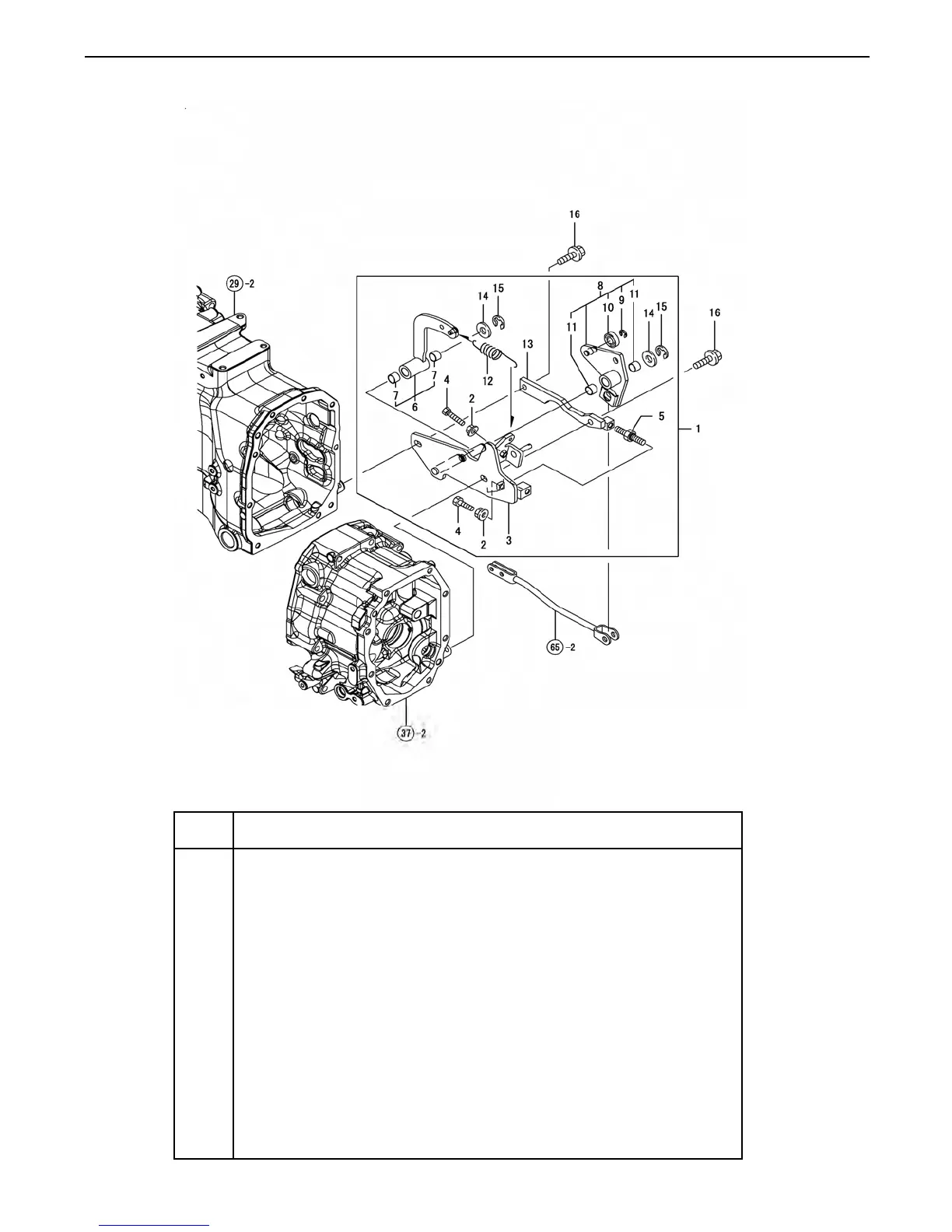

FIG. 53. HST LINK
