Ex Series Ex3200

REF

NO.

PART NUMBER DESCRIPTION QTY

1 CY-129008-21000 CRANKSHAFT ASSY 1

2 CY-129100-01580 PARALLEL PIN 8X16 1

4 CY-119803-21200 GEAR, CRANKSHAFT 1

5 CY-22512-070140 KEY 7X 14 1

7 CY-22512-070140 KEY 7X 14 1

8 CY-129055-21650 V-PULLEY, CRANKSHAFT 1

9 CY-129795-21661 WASHER 1

10 CY-121850-21680 BOLT, V-PULLEY 1

11 CY-124160-21501 BOLT, FLYWHEEL 6

12 CY-129269-21590 FLYWHEEL ASSY 1

14 CY-119865-21600 GEAR, RING 1

15 CY-121820-21690 BEARING 1

16 CY-129005-22080 PISTON ASSY 3

18 CY-129005-22500 RING SET, PISTON 3

22 CY-129202-22300 PIN, PISTON 3

23 CY-22252-000260 CLIP, PISTON PIN 6

24 CY-729402-23100 ROD ASSY, CONNECTING 3

27 CY-129100-23910 BUSH, PISTON PIN 3

28 CY-121550-23200 BOLT, CONNECTING ROD 6

29 CY-129150-23601 BEARING SET, CON-ROD 3

31 CY-129150-23611 BEARING SET, CON-ROD US=0.25 3

33 CY-129005-22900 PISTON W/RING OS=.25 3

35 CY-129005-22950 RING SET OS=0.25 3

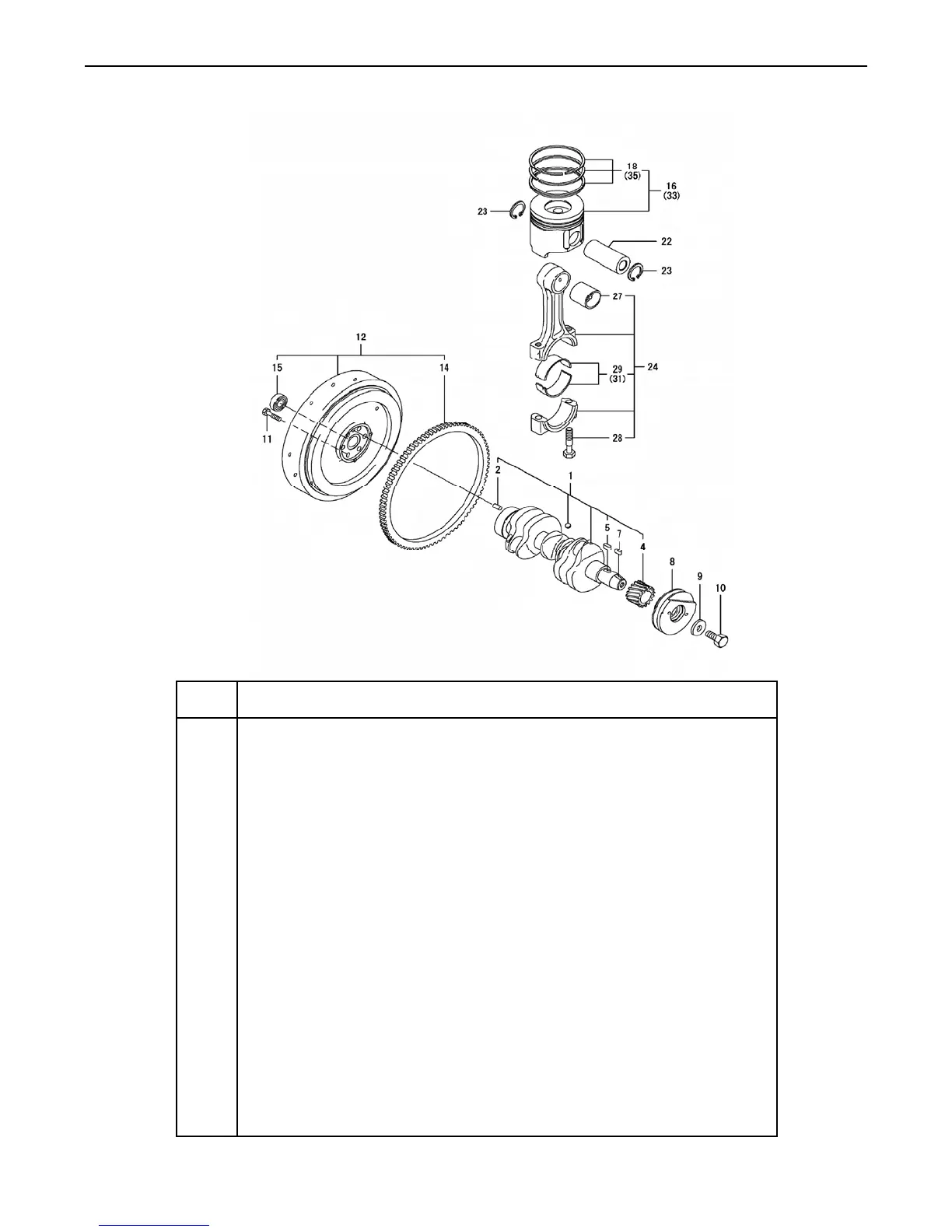

FIG. 8. CRANKSHAFT & PISTON
