Ex Series
Ex3200
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY-1A8160-22110
SHAFT, MAIN DRIVE
1
2
CY-1A8160-22120
JOINT, 25X50
1
3
CY-22242-000240
CIRCLIP 24
1
4
CY-22252-000220
CIRCLIP 22
1
65

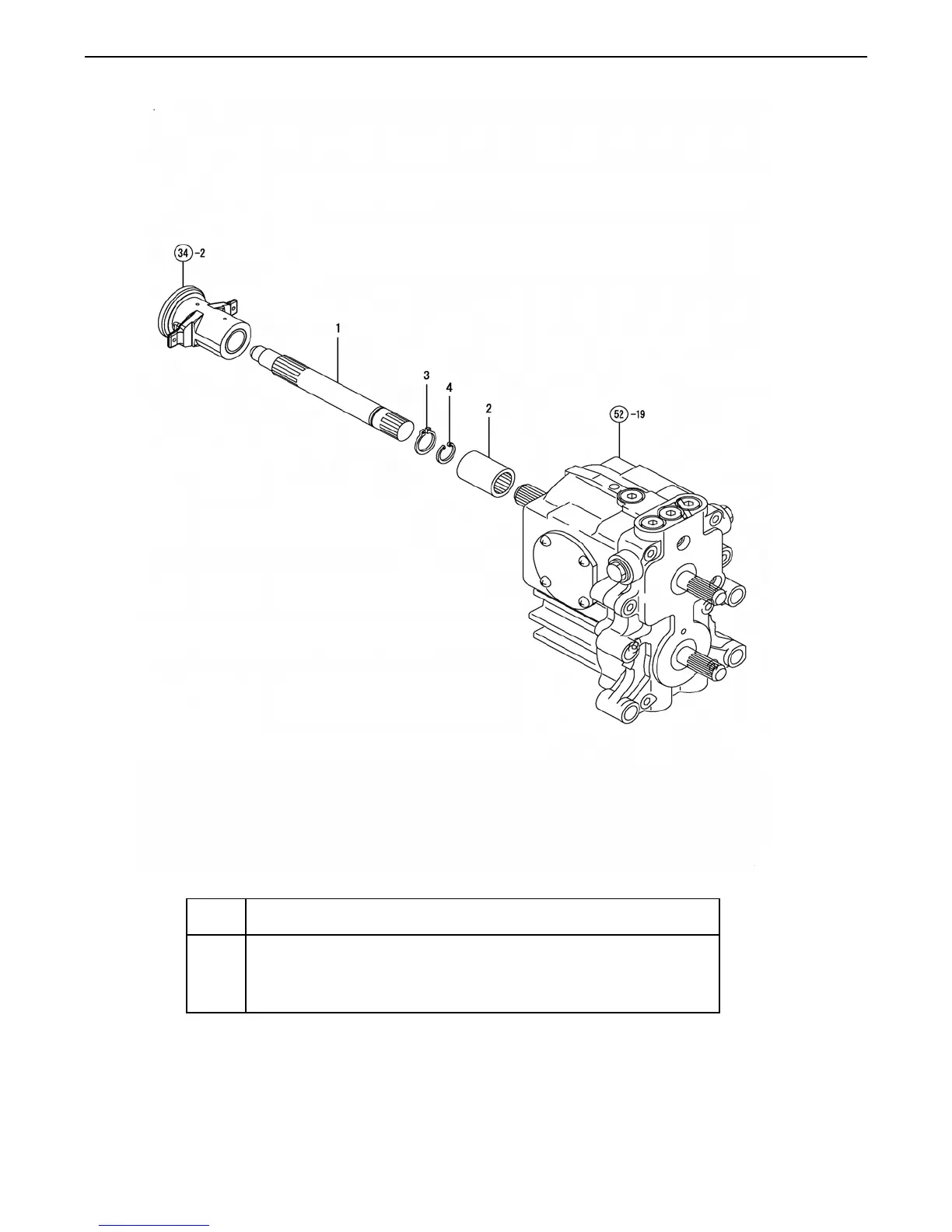

FIG. 32. CLUTCH SHAFT
Copyright 2007 Cub Cadet Yanmar LLC
64
