3-Wire Potentiometer (500 Ω –10k Ω ) Throttle
The 3-wire potentiometer is used in its voltage divider mode—with the voltage
source and return being provided by the 1207B controller. Pot High provides
a current-limited 5V source to the potentiometer, and Pot Low provides the
return path. Wiring is shown in Figure 8.

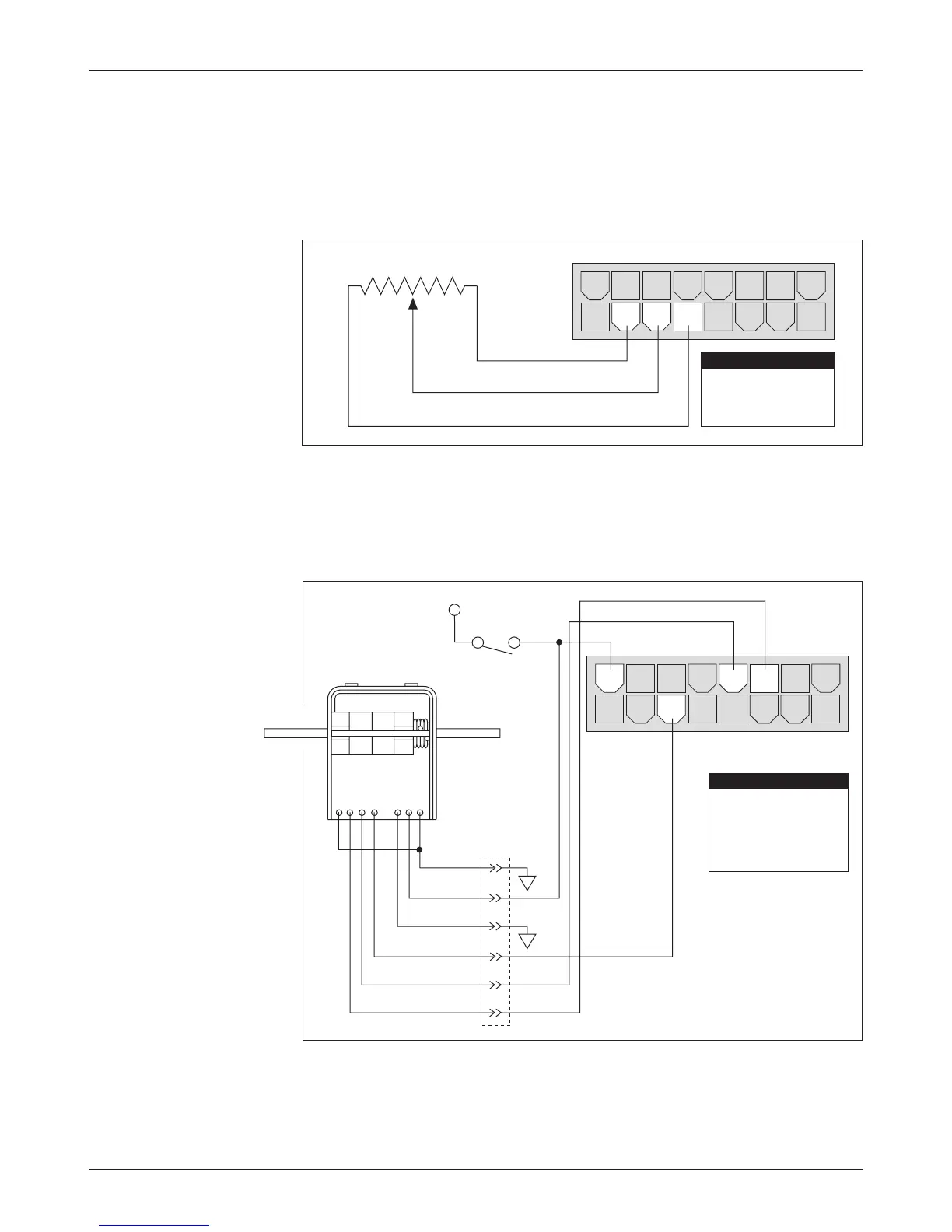

Fig. 8 Wiring for 3-wire
potentiometer throttle
(“Type 2”).
Fig. 9 Wiring for
Curtis ET-XXX electronic
throttle (“Type 2”).
Curtis ET-XXX Electronic Throttle
The Curtis ET-XXX provides throttle and forward/reverse inputs to the 1207B
controller. Wiring for the Curtis ET-XXX is shown in Figure 9.
