6 — HANDHELD PROGRAMMER
HANDHELD PROGRAMMER
The universal Curtis 1311 handheld programmer (optional) allows you to
program, test, and diagnose Curtis programmable controllers. The program
-
mer is powered by the host 1207B controller, via a 4-pin Molex connector on
the front panel.

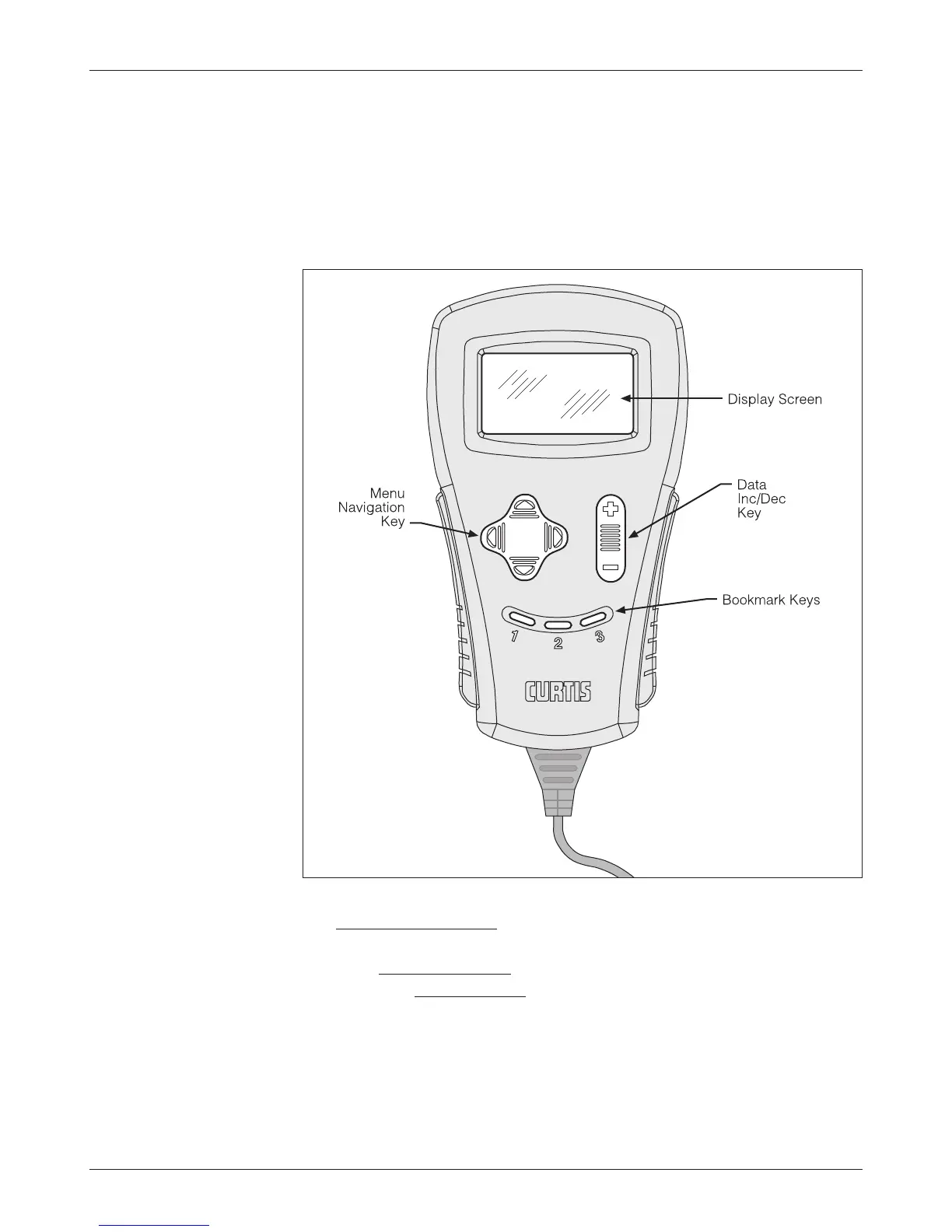

The Menu Navigation Key is used to scroll up and down, and move right and
left, within menus.
The Data Inc/Dec Key is used to increase (+) and decrease (-) values.
The three Bookmark Keys allow you to jump to frequently used parameters
or monitor variables. To set a bookmark, select the item and press one of the book
-
mark keys for more than 2 seconds. To jump to the bookmarked location, press
the appropriate bookmark key quickly (for less than 2 seconds). The bookmark
keys also have another function: when adjusting the value of a parameter, you
can use these keys to increase the increments by which the value changes; with
Bookmark 1 pressed, for example, values change in 10-digit increments.
