4 INSTALLATION
4.1 Wall mounting

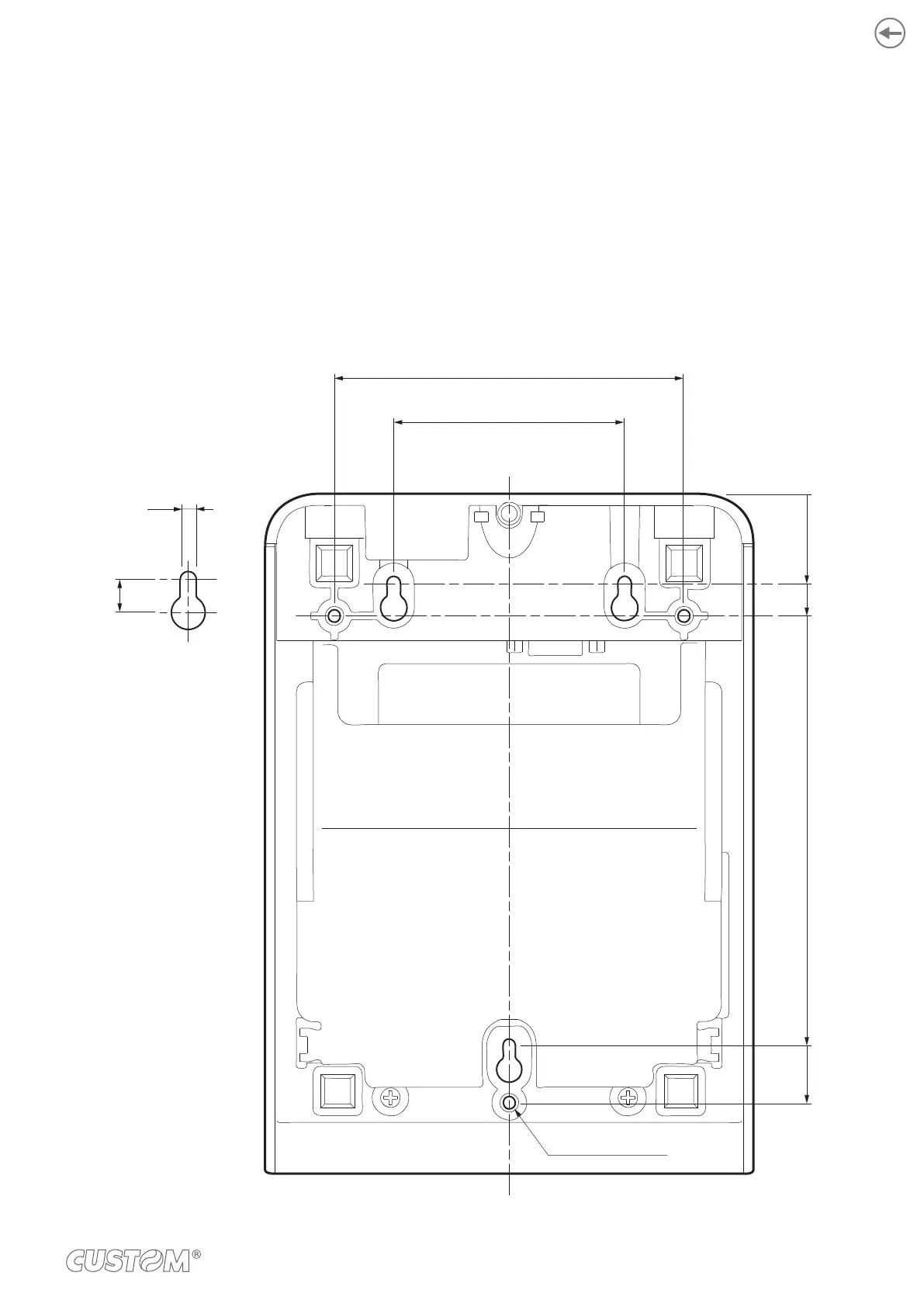

The device is equipped with a double vertical mounting capability of the machine:
• Setup 1: Three threaded holes for mounting with M4 screws
• Setup 2: Three slots for mounting on pins.

expressed in millimetres.
Detail A
27
0
No.3 M4 threads
70
7.5
Ø4
106
37
167
184.5
A A
A
21
