5.2 Adjusting the alignment sensor (optional)

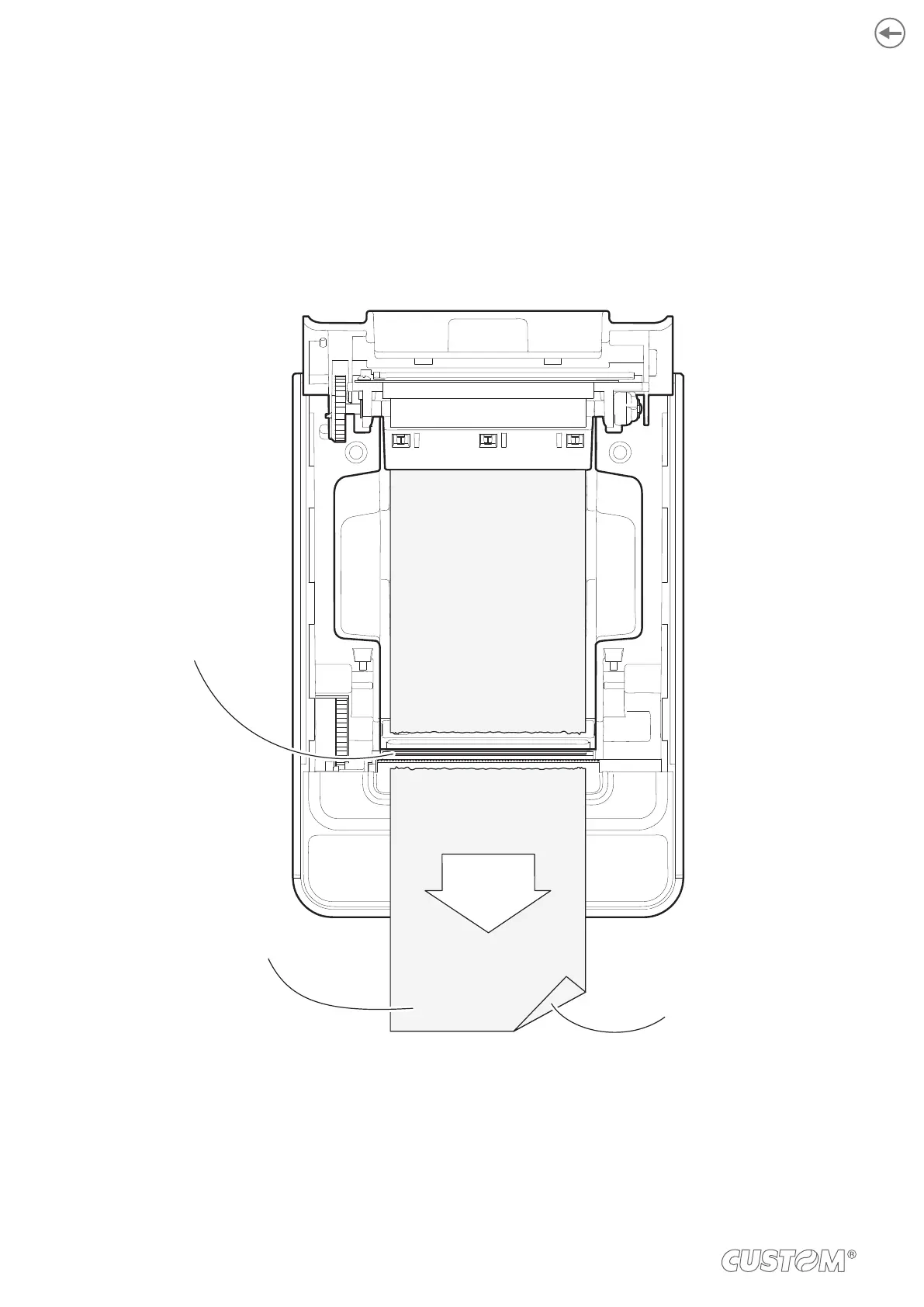

The device can be optionally equipped with a mobile sensor for the detection of the alignment black mark placed on the
thermal side of paper as shown below.
The device user will need to manually move this mobile sensor according to the position of the black mark on the paper.
To use this sensor for black mark detection, you must set the “Black mark position” setup parameter on the “Bottom” value
(see
paragraph 6.8).
direction
of paper
feed
MOBILE SENSOR
FOR BLACK MARK
NON-HEAT
SENSITIVE SIDE
HEAT SENSITIVE SIDE
