7.4 Printing area

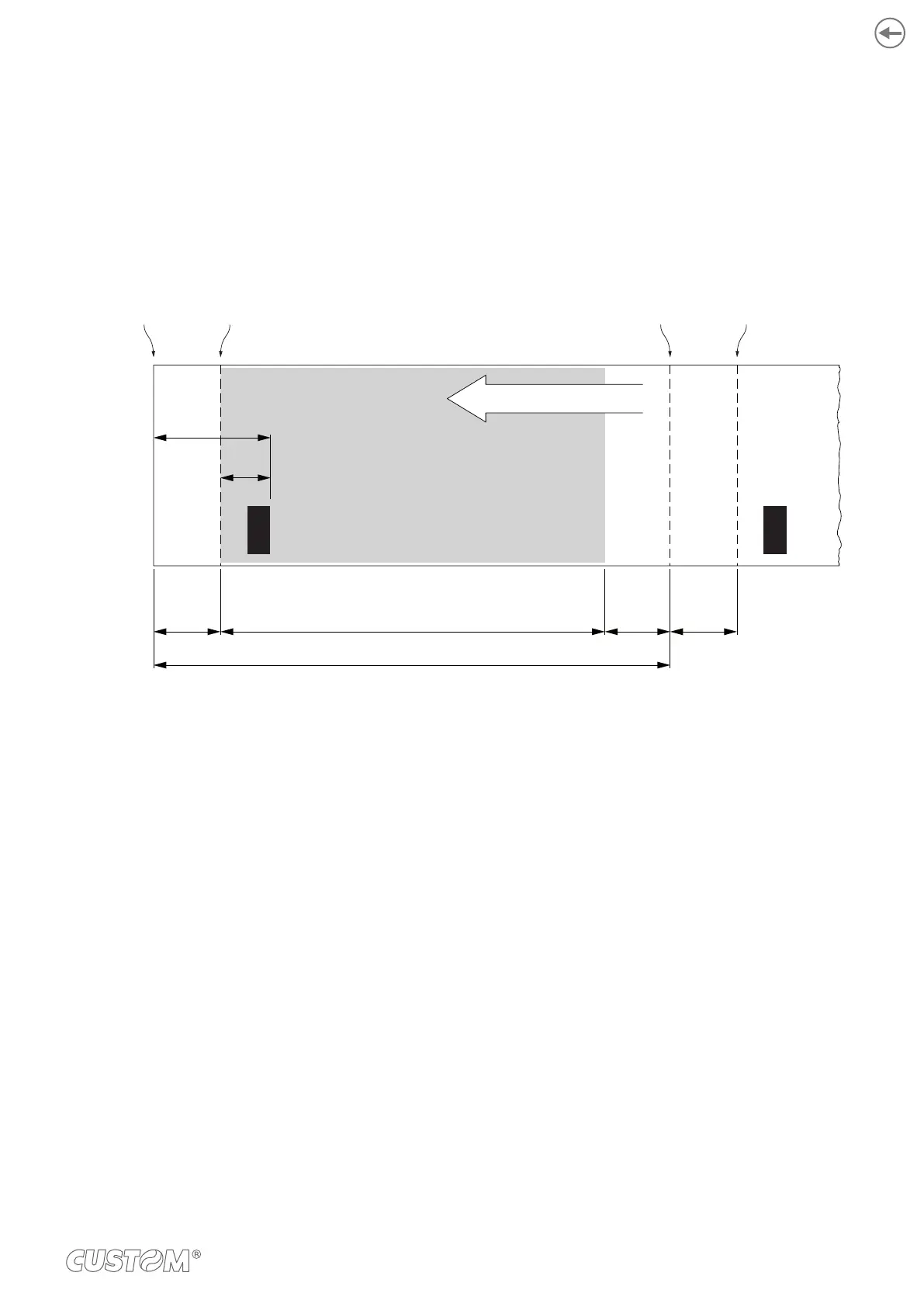

In order to print ticket containing only one black mark and to not overlay printing to a black mark (that will make it useless
for the next alignment), it is important to well calibrate the height of the printing area of ticket according to the inter-black
mark distance.
25
8
A A
L
DH
PRINTING
AREA
PRINTING DIRECTION
Cutting
line
Cutting
line
Printing
line
Printing
line
A “Non-printable area” of 17 mm generated from:
“Distance between black mark front/cutting line” - “Distance between black mark front/printing line”
where:
L Ticket length.
D Automatic feed for alignment at the next black mark.
To use all the black marks on the card, you must comply with the following equation:
The height of the printing area (H) can be increased to make no progress on alignment (D) but no further.
