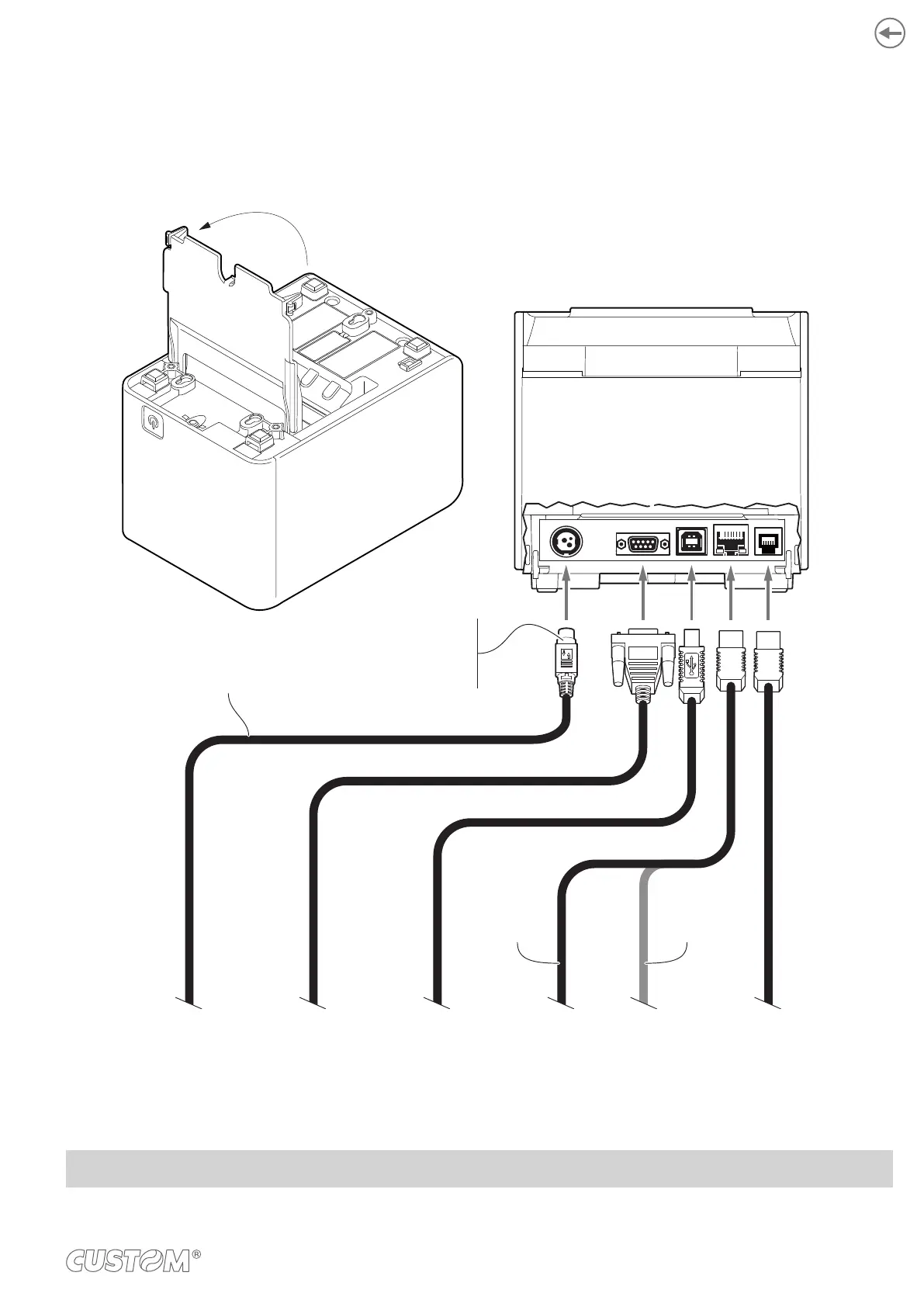

4.2 Connections

connected to the device at the same time, communication takes place via the USB port.
VIn 24Vdc COM USB ETH DK
Cash drawerPC Network
HUB
PCPC
GPRS modem
Power supply
Power Supply cable
(included)
Ethernet
CrossOver
standard
cable
Ethernet
UTP
standard cable
(pin-to-pin)
Correctly insert the
power supply
connector with the flat
side upwards
ATTENTION: In some using conditions, we recommend the installation of a ferrite core on the power supply cable.
