Rear attachment
7
6
5
1
2
3
4
Ø MAX = 180mm

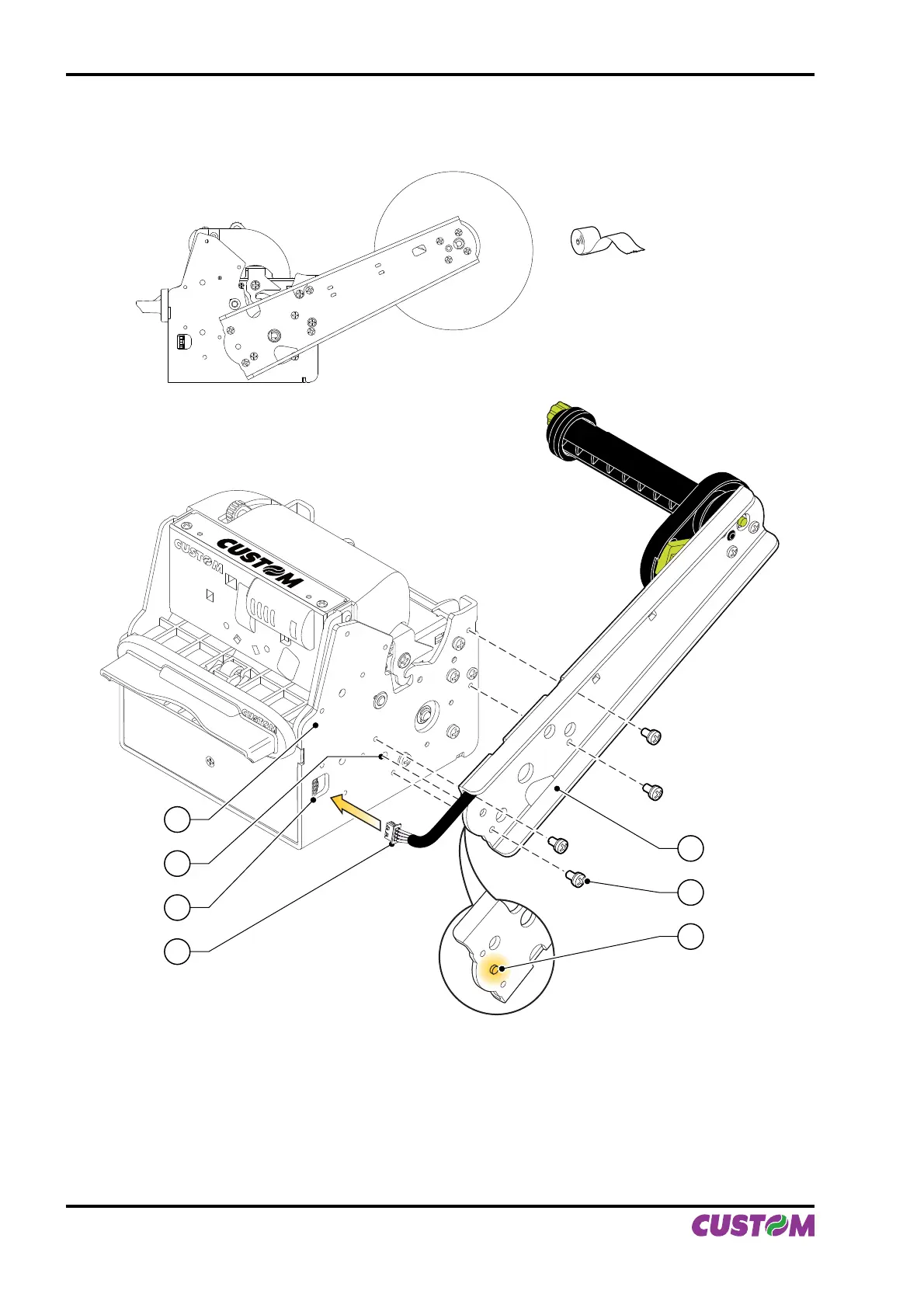

Put the paper holder support near the printer body. Insert the point of reference (2) (paper holder sup-1.
port) into the hole (7) (printer body) (see fi g. A.5).
Attach the paper holder support (4) to the printer body (1) using four M4x8 screws (5) supplied with the 2.
kit (see fi g. A.5).
Insert the near paper end sensor connector (3) of the paper holder support into the connector of the sen-3.
sor card located on the printer (6) (see fi g. A.5).
(Fig.A.5)
(Fig.A.4)
