Cutera ExcelV - Genesis V Treatment Screen

19
EXCEL V OPERATOR MANUAL
D1025, REV H, 10/17
Genesis V Treatment Screen
When the Genesis V handpiece is connected to the console fiber receptacle, the Genesis V Treatment
Screen displays after the successful completion of the self-test routine at system start-up.
From the Genesis V Treatment Screen, you can:
• select the fluence and repetition rate (refer to the User-selectable Parameters topic)
• store and recall frequently used treatment parameters (refer to the Memory Storage topic)
• monitor the measured temperature of the target tissue (refer to the Displays and Indicators
topic)
• select the system status (refer to the System Status: STANDBY and READY Modes topic)
• view and reset the pulse counter (refer to the Displays and Indicators topic)
• go to the Information & Adjustment Screen (refer to Information & Adjustment Screen topic)

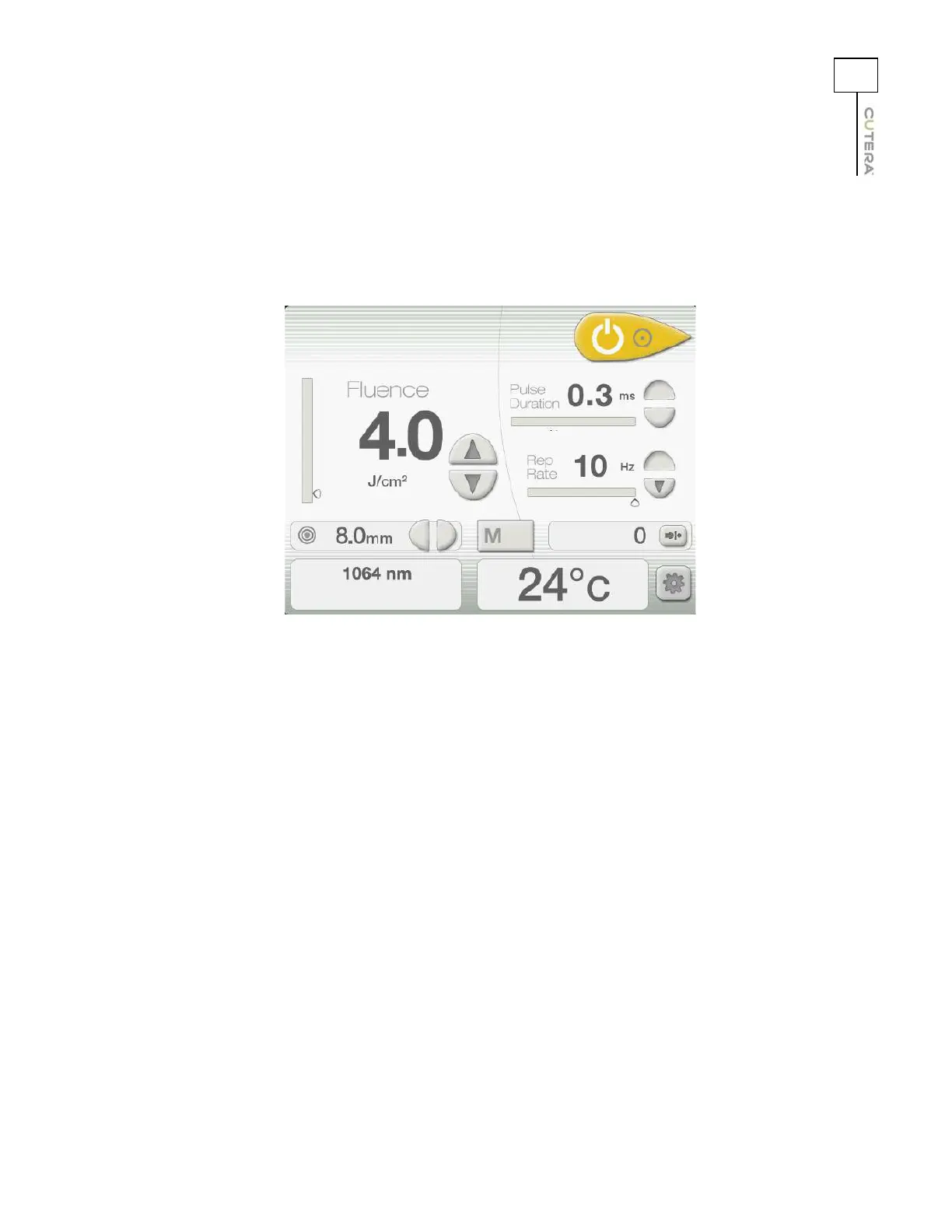

Genesis V Treatment Screen
