THE SCREEN PAGES PAGE 23
PRODUCT
PAGE
(AF I
NFORMATION
)
Key .
P 0 N 1 CY__
STOPPED
M ALU1
2.00
1000
0.74°
TDC 54 0.24
BDC 39

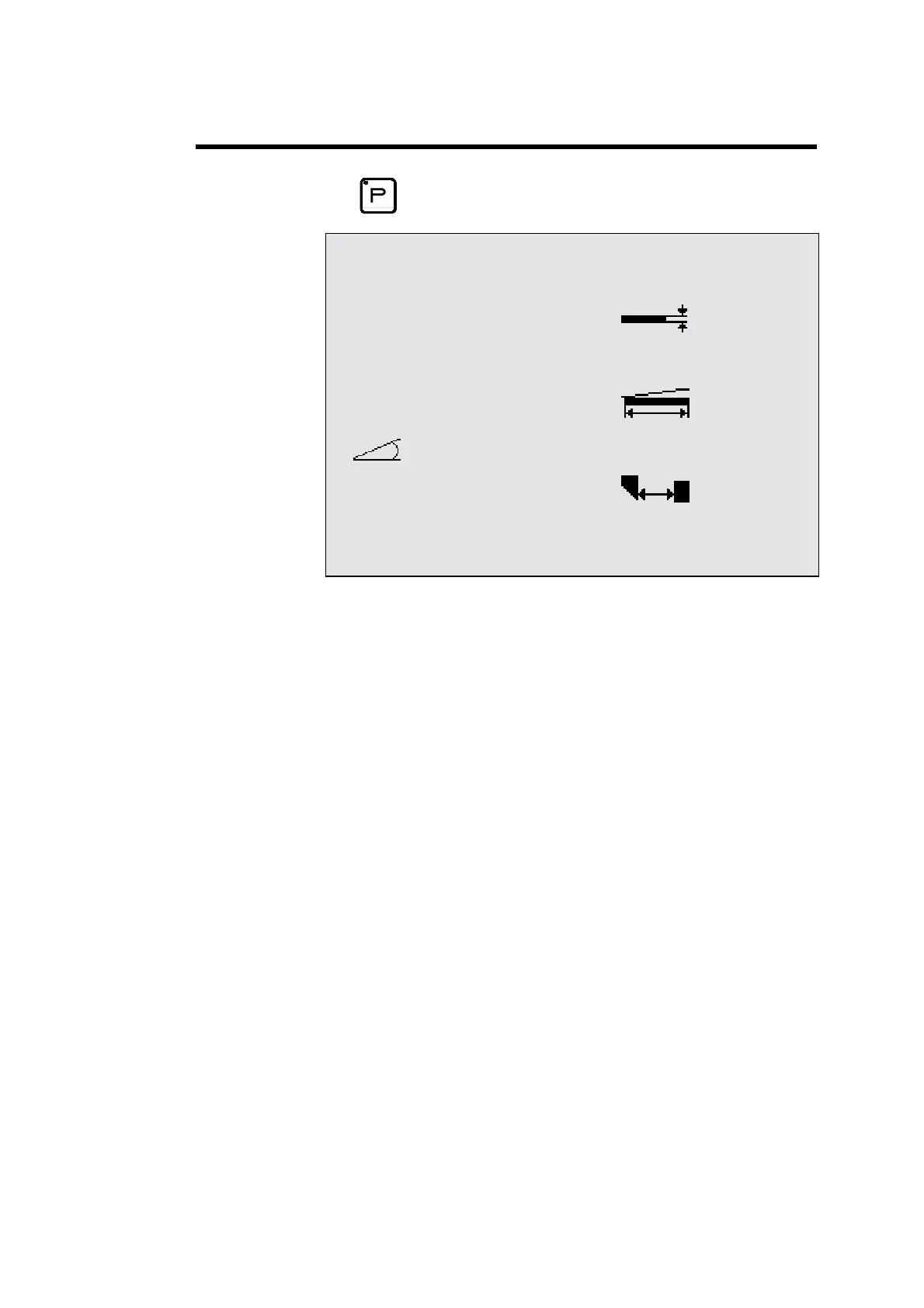

! This page is destinated to give information relating to the auxiliary
functions (AF) specific to shears. (Blade gap, rake angle, cutting
depth).
! There are recalled: - the material
- the thickness
- the width
! There we can find the following information calculated from the three
firsts above. - the blade gap
- the rake angle
- the TDC (top dead center)
- the BDC (bottom dead center)
To Next Page
