THE SCREEN PAGES PAGE 31
DEFINITION OF THE WORK CYCLE
Programming the following fields defines the type of work cycle to be chosen
for the current sequence.
Without cutting_
Work cycle without any cutting.
Retract_
By default (field not defined) the cycle will
retract. In the case where the value 0 is
programmed in the
RETRACT
field, the
retraction is not made. In all other cases there
will be a retraction.
Clean cut
Programming this field supplies a 24V signal to
the exterior at the beginning of the sequence, in
order to open the scrap evacuation flap.
Cutting width
This field is only displayed if the machine is
equipped with a "cutting depth" function.
Width over which the upper and lower blades
cross.
Programming this field starts the calculation of
the BDC (cutting depth, figure 3).
Blade gap (AF1)
Gap between the cutting blades (in 1/100) for
the sheet thickness and material chosen.
Co (AF2)
Function corresponding to the rake angle.
The value calculated in this field corresponds
to the vertical separation (in mm) between the 2
ends of the upper blades. (Figure 3).
BDC (AF3)
Cutting depth.
The value calculated for this field corresponds
to the distance (in mm) between the right end
of the upper blade and the lower blade.

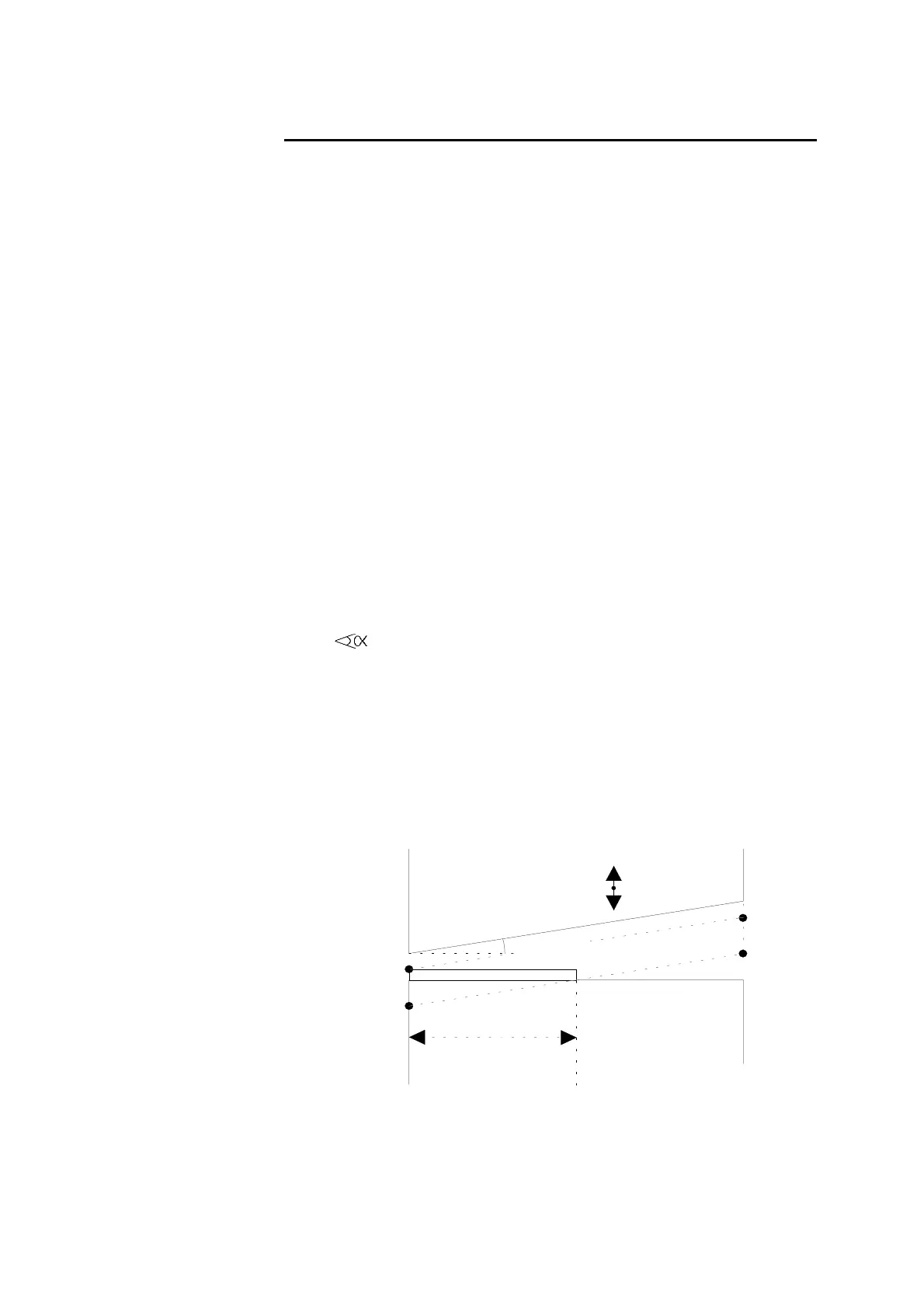

sheet
upper
blade
lower
blade
TDC
BDC
rake angle
cutting
length
TDC
BDC
Figure 1
