PAGE 30 USER GUIDE DNC 60 GS
Example: N JS TIMES
--------------------------
1 __ __
2 __ __
3 __ __
4 2 2
5 __ __
6 1 2
7 9 __
8 __ __
9 __ __

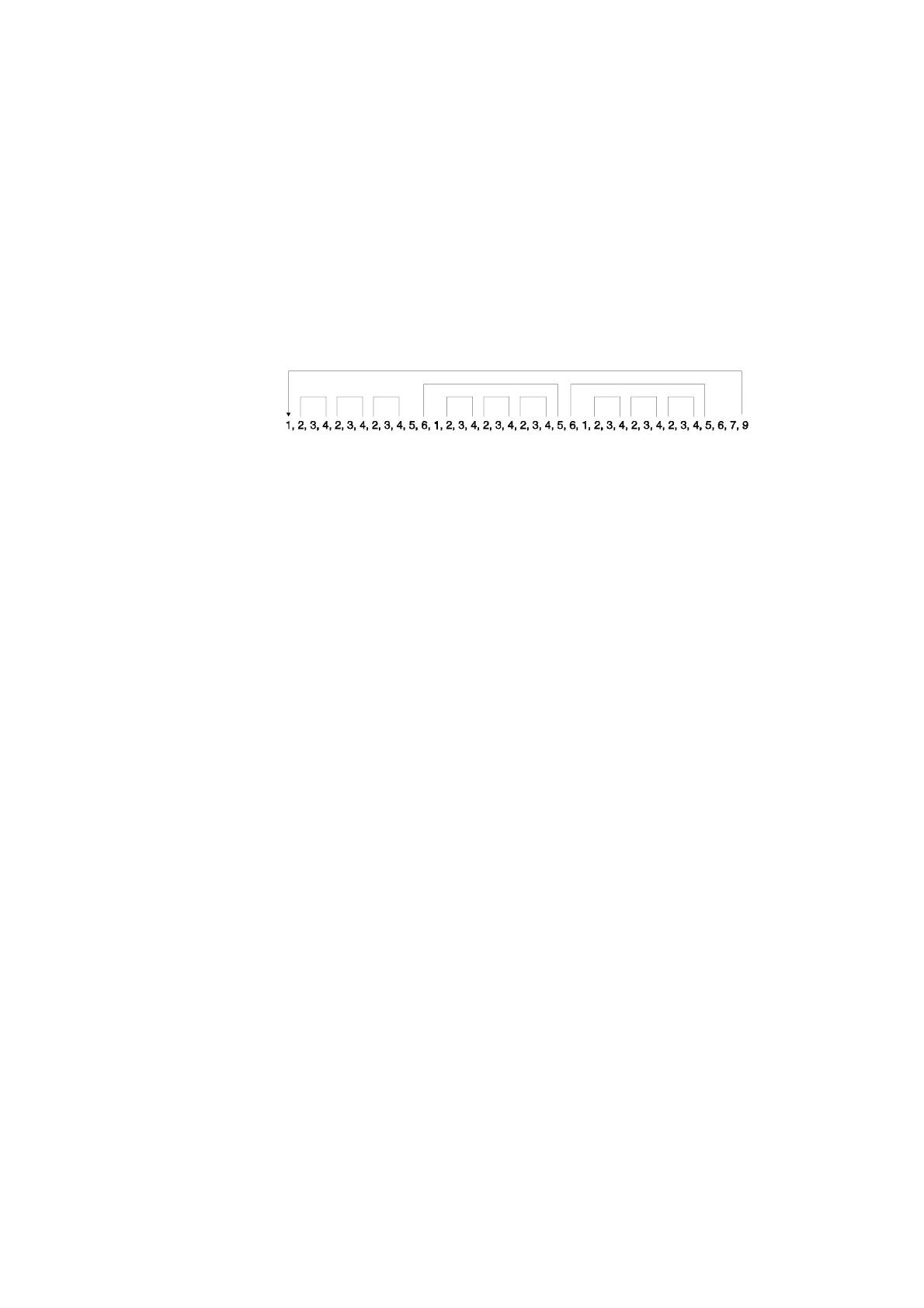

Cycle progression:
Remark: In the above example, the sequence 8 is never effectuated
(unconditional jump).
Q__
The
Q-MEM-
represents the number of
products to be made.
The product counter
Q -POS-
must be
validated by programming 0 or another number
corresponding to the number of products
already made.
Only then will the counter function.
To clear the counter, simply clear the
Q-POS-
field.
A 24V signal is supplied to the exterior as soon
as
Q -POS-
reaches
Q -MEM-
.
