CYBEX ATON Q User Manual

28
• to increase the safety of your child in case of an side
impact pull the L.S.P. out to the nearest door as far as
possible
• that the car buckle q is not reaching all the way to the
blue belt slot m
• that the car belt is tight and not twisted

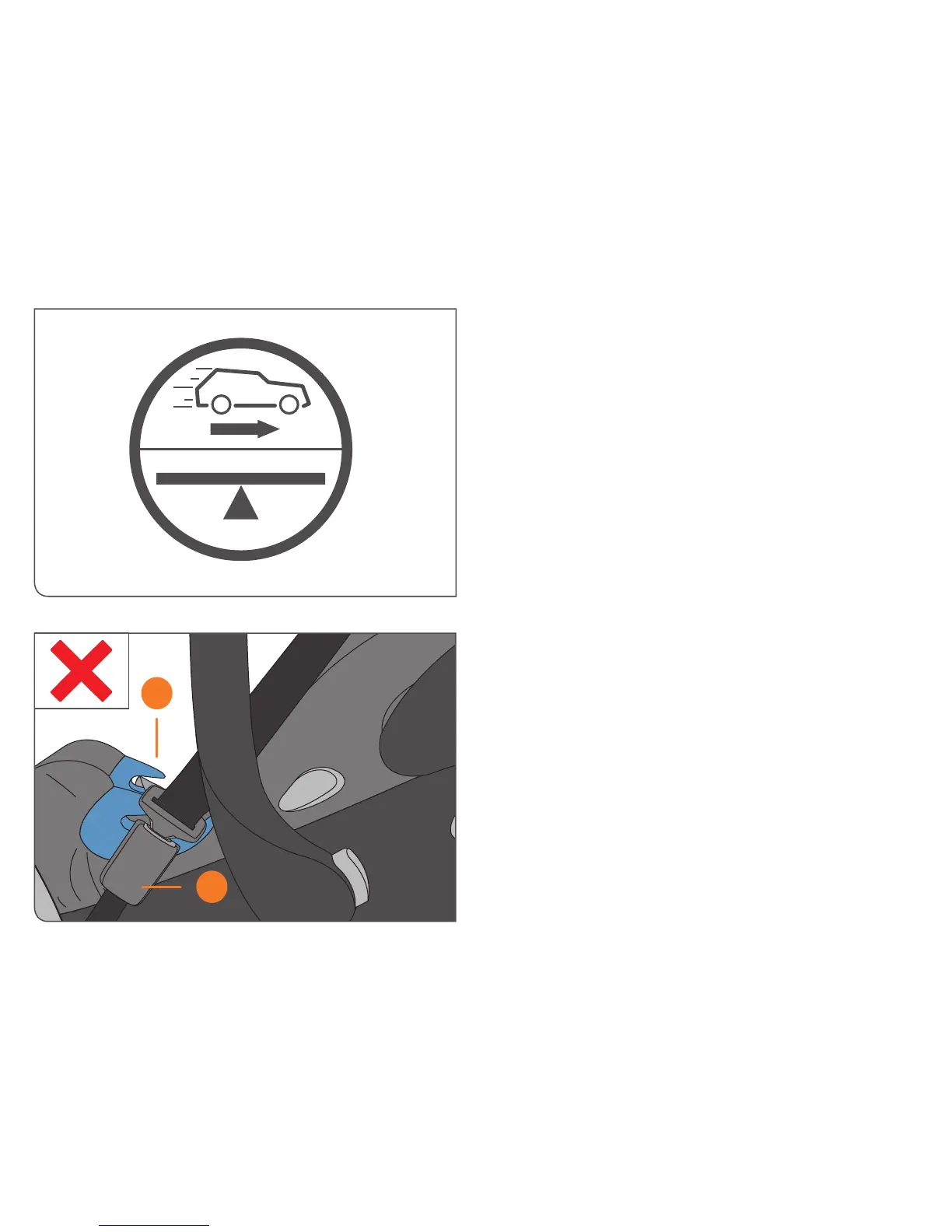

• that the Aton Q is vertically installed on the car seat
(see marking)
NOTE! The CYBEX Aton Q is exclusively made for
forward facing car seats, which are equipped with a
3-point belt system according to ECE R16.
q
m
• that the Aton Q is positioned against driving direction
(the feet of the baby point in the direction of the
backrest of the car seat)
• if the car seat is installed in front, that the front-
airbag is deactivated
• that Aton Q is secured with a 3-point belt
• that the lap belt k is running through the belt slots m on
each side of the baby seat
• that the diagonal belt l is running through the blue belt
hook n on the back of the baby seat
INSTALLING THE BABY SEAT CORRECTLY
For the safety of your child please make sure …

CYBEX ATON Q Specifications

General

Headrest	Yes
Washing type	Machine wash
Certification	ECE R44/04
Mounting type	Seat belt
Product color	Green
Car seat group	0+ (0 - 13 kg; 0 - 18 months)
Country of origin	Germany
Belt fastening type	3-point
Placement available	Rear-facing
Maximum weight capacity	13 kg
Maximum washing temperature	30 °C
Number of headrest positions	8
Quantity	1

Weight and Dimensions

Depth	650 mm
Width	440 mm
Weight	4600 g
Height (max)	560 mm
Height (min)	390 mm
