10/100 Fast Ethernet Switch User’s Guide
8 Unpacking and Setup

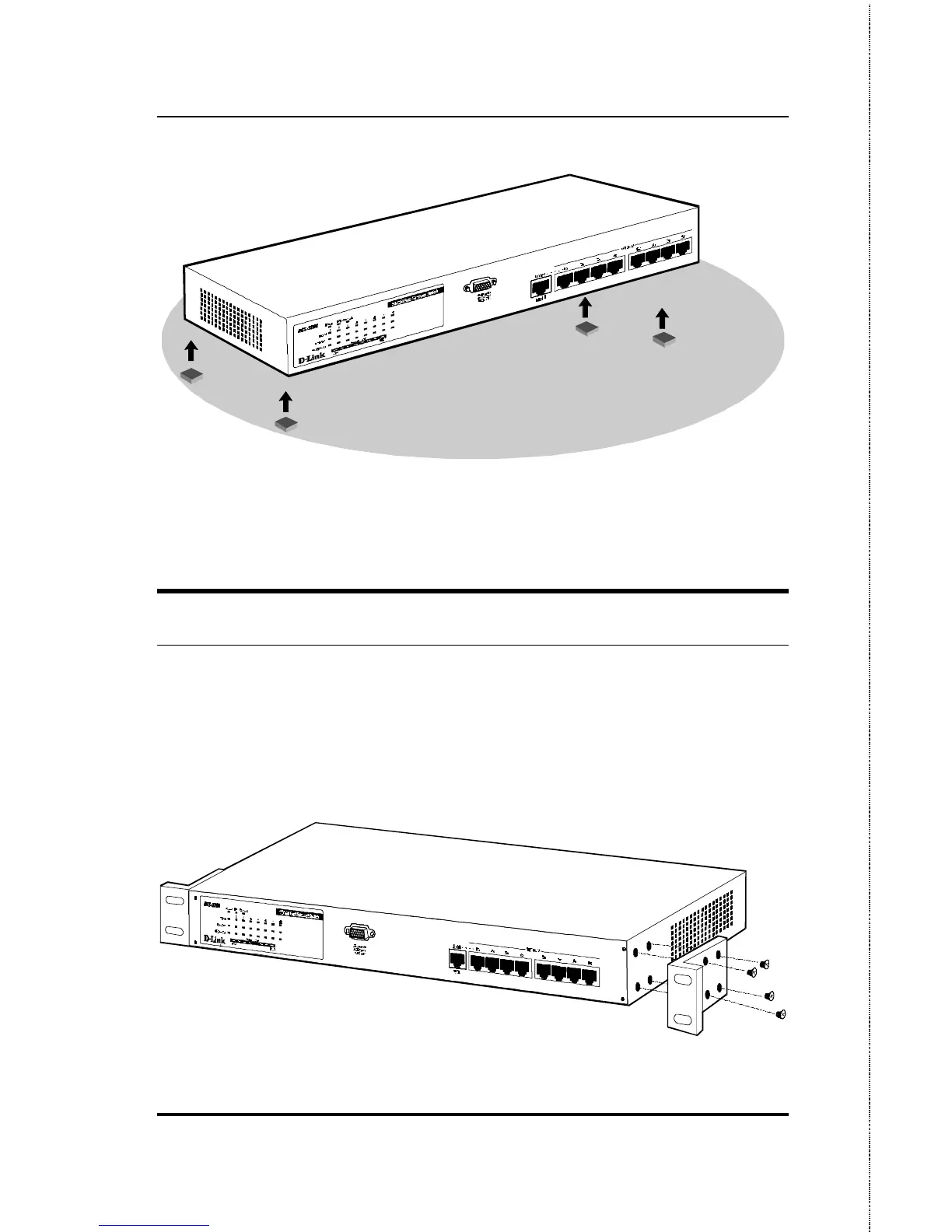

Figure 2-1. 10/100 Fast Ethernet Switch installed on a Desktop
or Shelf
Rack Installation
The DES-3208 can be mounted in an EIA standard size, 19-inch
rack, which can be placed in a wiring closet with other equipment.
To install, attach the mounting brackets on the switch’s front
panel (one on each side) and secure them with the screws
provided.
