10/100 Fast Ethernet Switch User’s Guide
20 Connecting The Switch

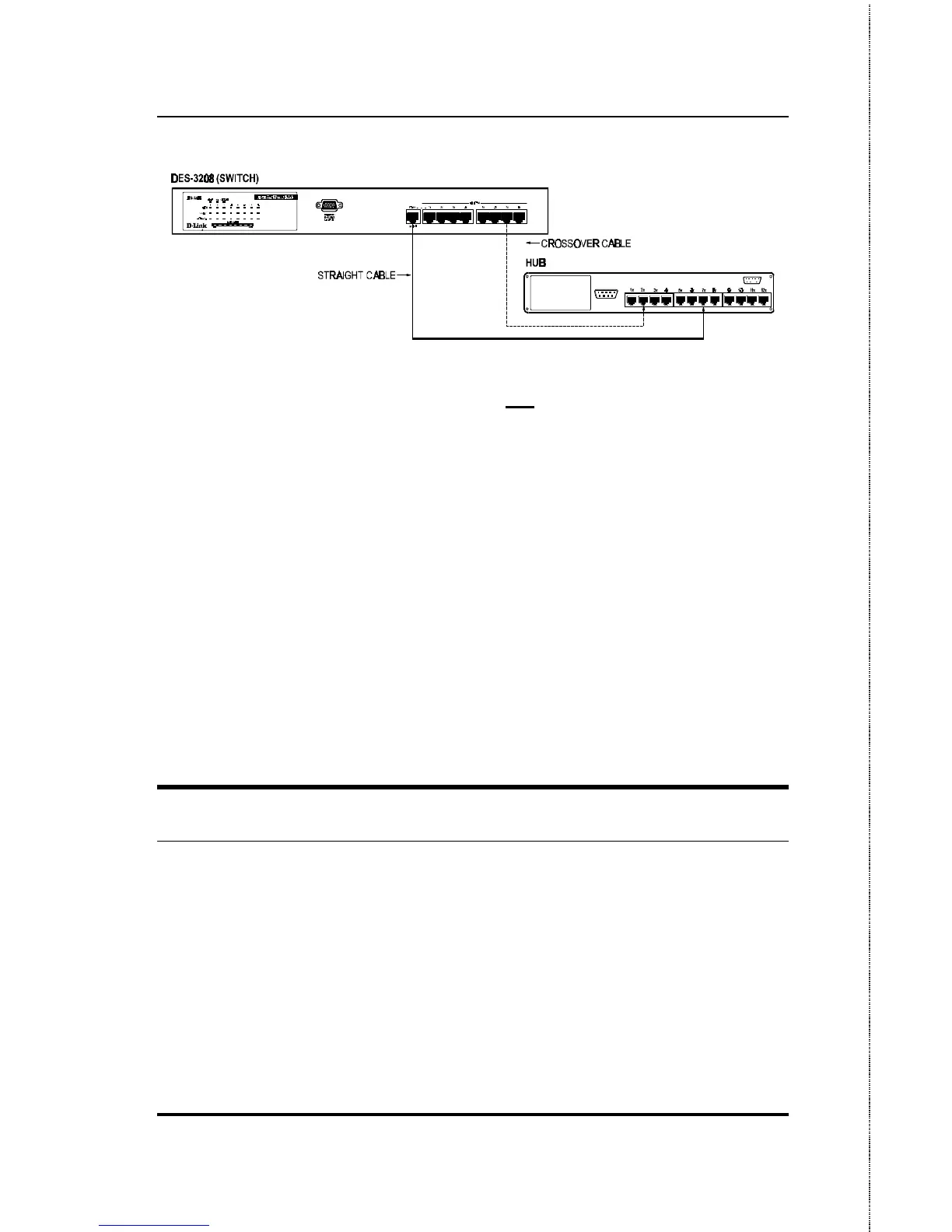

Figure 4-3. DES-3208 Switch connected to a Hub without uplink
(MDI-II) port using the Straight OR crossover cable option
Using straight cable
When using straight cable, the connection can be made from the
uplink (MDI-II) port of the Switch to any port of the Hub (see
figure 4-3).
Using crossover cable
When using crossover cable, the connection can be made from any
(1x - 8x) port of the Switch to any port of the Hub (see figure 4-3).
Switch to Switch (other devices)
The Switch can be connected to another switch or other devices
(routers, bridges, etc.) via a two-pair Category 3, 4, 5 UTP/STP
straight or crossover cable.
