10/100 Fast Ethernet Switch User’s Guide
RJ-45 Pin Specification 73
RJ-45 Connector pin assignment
Contact Media Direct Interface
Signal
1 Tx + (transmit)
2 Tx - (transmit)
3 Rx + (receive)
4 Not used
5 Not used
6 Rx - (receive)
7 Not used
8 Not used

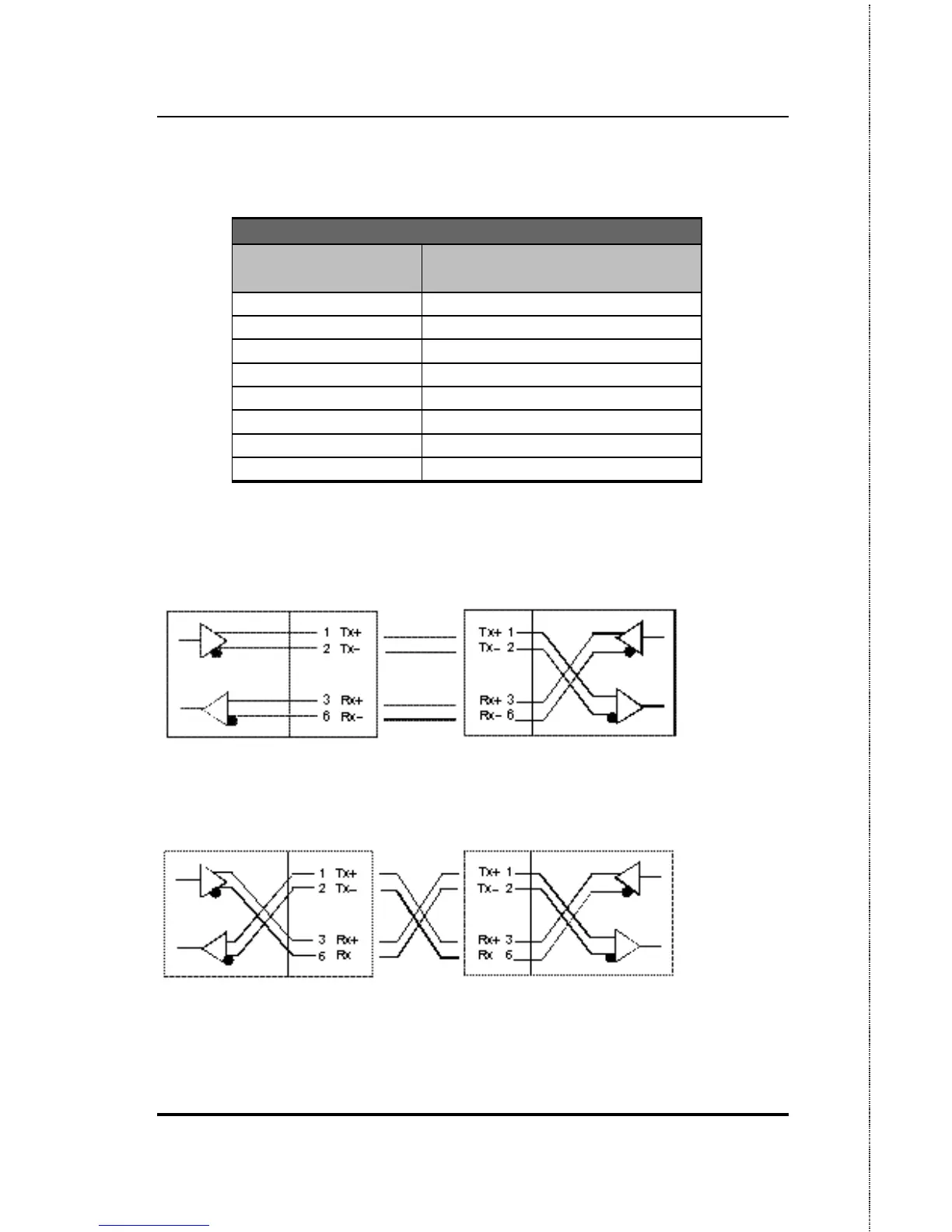

Table B-1. The standard Category 3 cable, RJ-45 pin
assignment
The following shows straight cable and crossover cable connection:
Figure B-2. Straight cable for Switch (uplink MDI-II port) to
switch/Hub or other devices connection
Figure B-3. Crossover cable for Switch (MDI-X port) to
switch/hub or other network devices (MDI-X port) connection
