D-Link DGS-3100 SERIES Hardware Installation Guide

DGS-3100 Series Gigabit Stackable Managed Switch Hardware Installation Guide

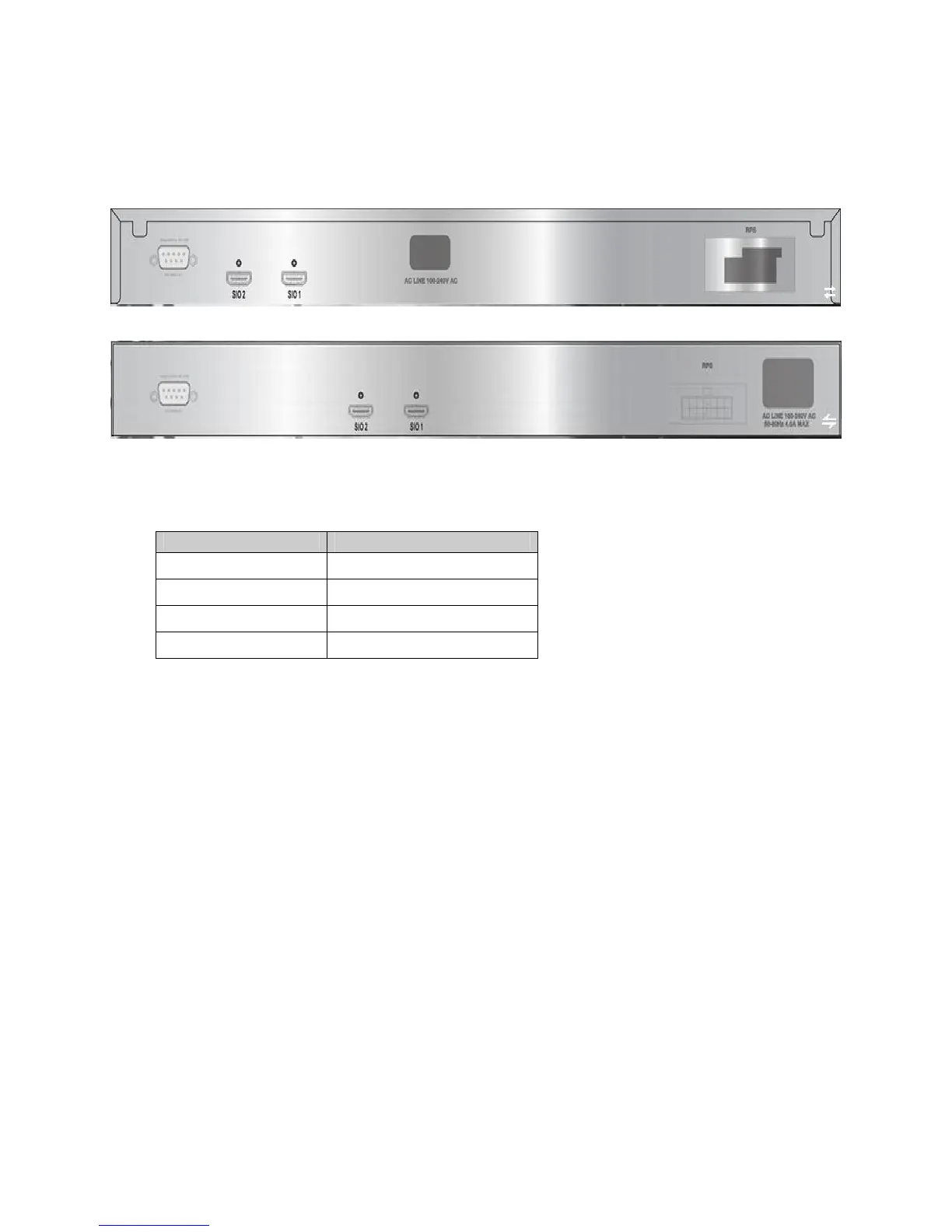

Viewing Rear Panel
The rear panels of the switches contain an external Redundant Power Supply connector, an AC power connector, and a RS-
232 console port for setting up and managing the switch via a connection to a console terminal or PC using a terminal
emulation program.
Figure 1-3. DGS-3100 24P/48P Rear Panel View
Figure 1-4. DGS-3100-24/48/24TG Rear Panel View
• The external Redundant Power Supply connector is used to connect the DGS-3100 Series to one of the following
supported units:
DGS-3100 Series Device Supported RPS Unit
DGS-3100-24 DPS-300
DGS-3100-48 DPS-500
DGS-3100-24P/48P DPS-600
DGS-3100-24TG DPS-300
An auto-switch circuit automatically switches to the external RPS once the internal power supply fails. Transition from
internal to external supply does not disturb normal operation.
• The AC power connector is a standard three-pronged connector that supports the power cord. Plug the female
connector of the provided power cord into this socket, and the male side of the cord into a power outlet. Supported
input voltages range from 100 ~ 240 VAC at 50 ~ 60 Hz.
2

D-Link DGS-3100 SERIES Specifications

General

Type	Managed
Layer	Layer 2+
Ports	10/100/1000BASE-T
SFP Ports	2 or 4 (depends on the model)
Additional SFP Ports	No
VLANs	Yes
Stacking	Yes, Physical Stacking
QoS	Yes
Jumbo Frame Support	Up to 9K bytes
Management	Web-based
Operating Temperature	0°C to 40°C
Humidity	10% to 90% non-condensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Model	DGS-3100 SERIES
Storage Temperature	-40°C to 70°C
