DGS-3100 Series Gigabit Stackable Managed Switch Hardware Installation Guide
Connecting to HUB or Switch
The device can be connected to a HUB using a normal cable. The device is connected to the different port types, using:
• A 10BASE-T HUB or switch is to the switch via a two-pair Category 3, 4, 5, or 5e UTP/STP cable.
• A 100BASE-TX HUB or switch is connected to the switch via a two-pair Category 5 or 5e UTP/STP cable.
• A 1000BASE-T Switch is connected to the switch via four-pair Category 5 or 5e UTP/STP cable.

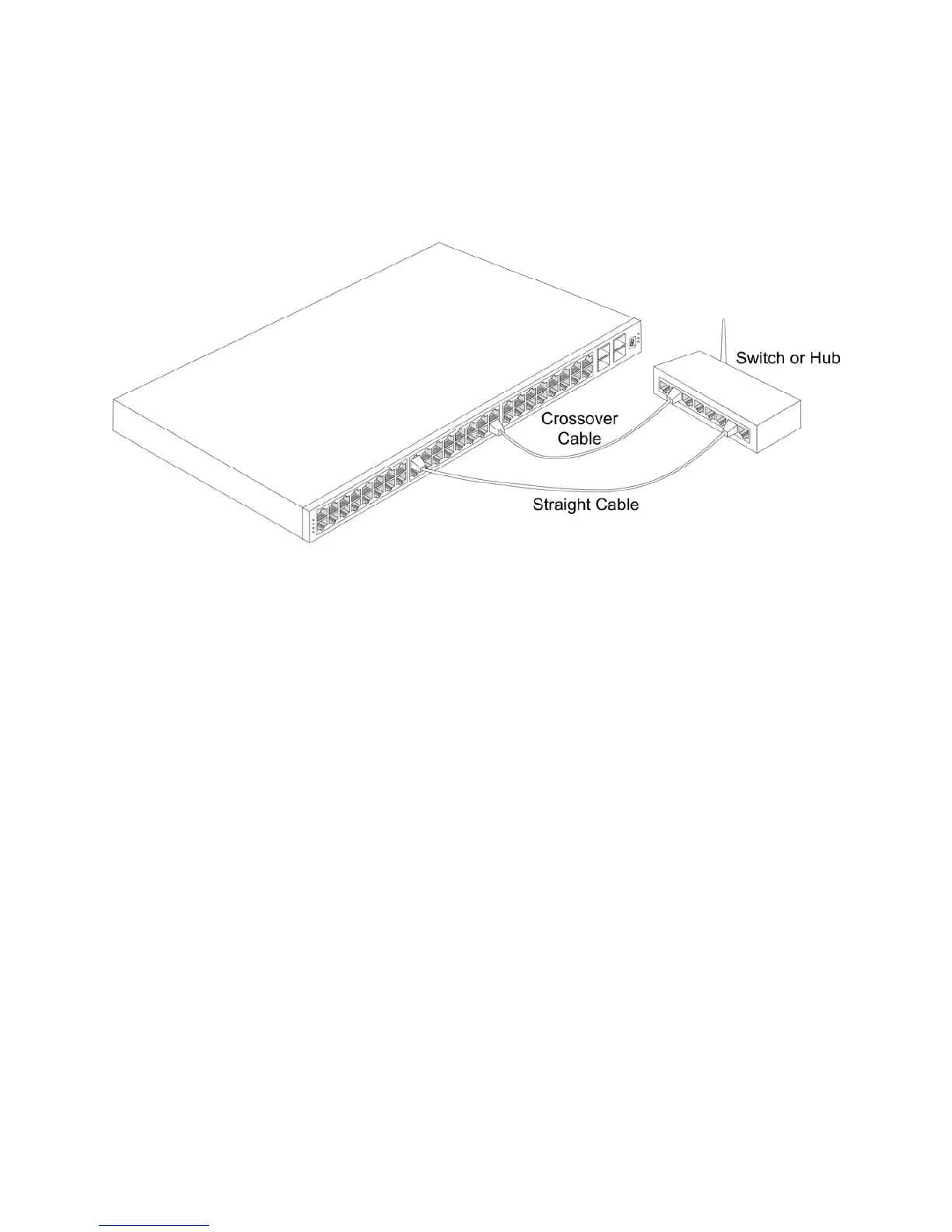

Figure 3-2: Connecting to a Hub or Switch Using a Straight or Crossover Cable
