49

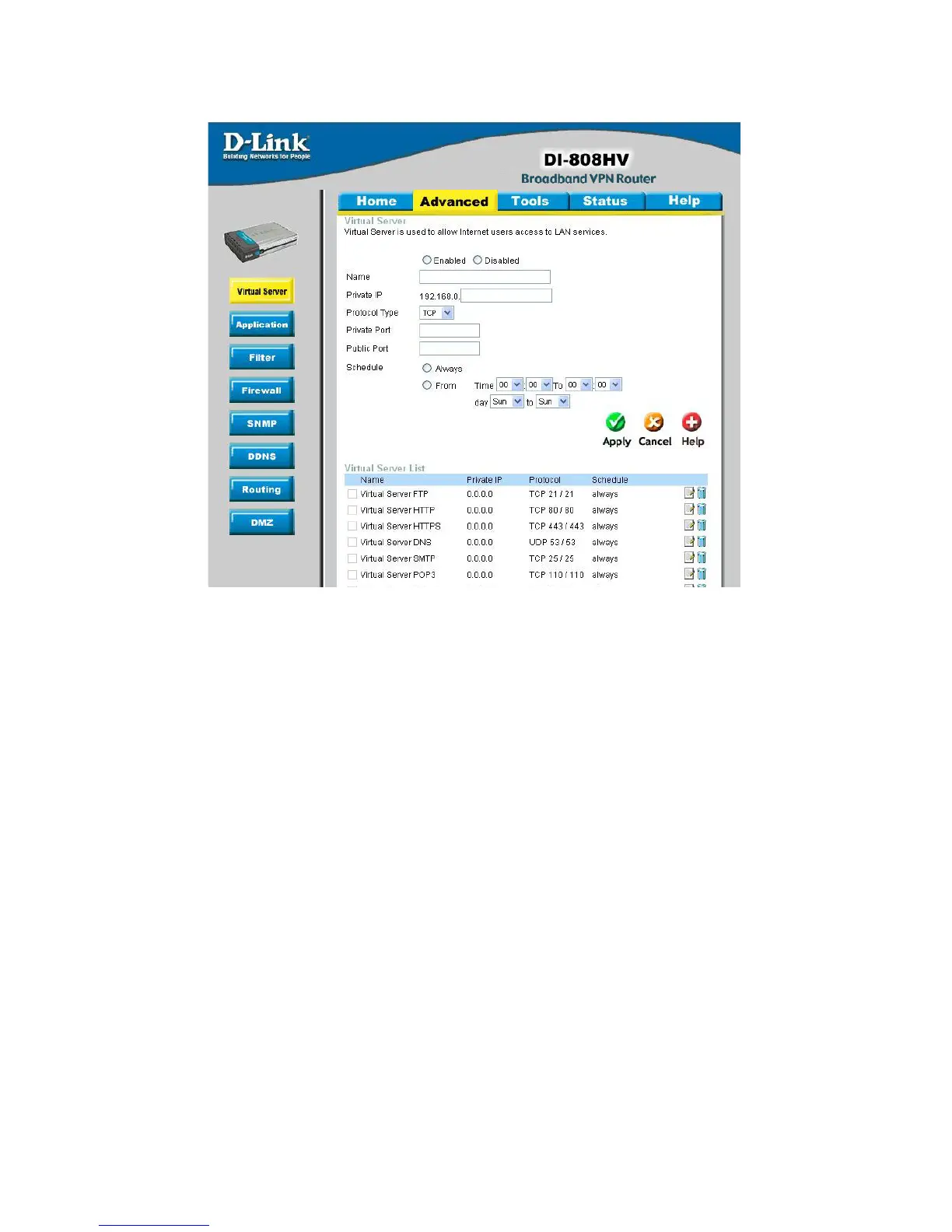

Advanced > Virtual Server
Using the Configuration Menu
The DI-808HV can be configured as a virtual server so that remote users accessing Web
or FTP services via the public IP address can be automatically redirected to local servers
in the LAN (Local Area Network).
The DI-808HV firewall feature filters out unrecognized packets to protect your LAN network
so all computers networked with the DI-808HV are invisible to the outside world. If you
wish, you can make some of the LAN computers accessible from the Internet by enabling
Virtual Server. Depending on the requested service, the DI-808HV redirects the external
service request to the appropriate server within the LAN network.
Protocol Type
The protocol used for the virtual service.
Public Port The port number on the WAN side that will be used to access
the virtual service.
Private IP
The server computer in the LAN network that will be providing
the virtual services.
Name The name referencing the virtual service.
Private Port
The port number of the service used by the Private IP computer.
Schedule Select Always, or choose From and enter the time period dur-
ing which the virtual service will be available
