79
Networking Basics

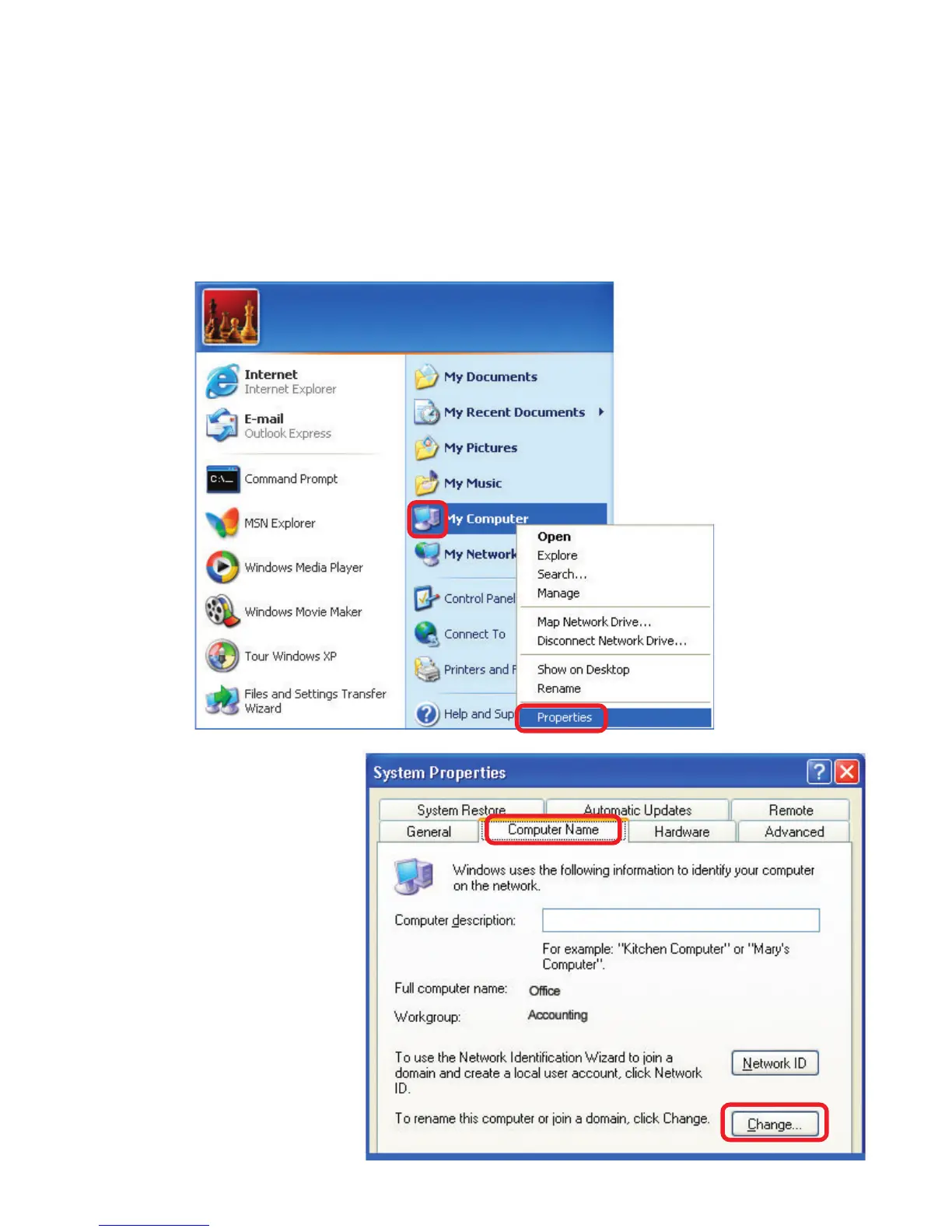

Naming your Computer
T
o name your computer
, please follow these directions: In
Windows XP
:
Click
Start
(in the lower left corner of the screen)
Right-click
on
My Computer
Select
Properties
and click
Select the
Computer
Name T
ab
in the System
Properties window
.
Y
ou may enter a
Com-
puter Description
if you
wish; this field is optional.
T
o rename the computer or
join a domain, Click
Change
.
78
80
Table of Contents
Table of Contents
2
Package Contents
3
System Requirements for Configuration
3
Product View
3
Introduction
4
Connections
5
Features & Benefits
5
Introduction to Broadband Router Technology
6
Introduction to Firewalls
7
Introduction to Local Area Networking
7
Introduction to Virtual Private Networking
8
Point-To-Point Tunneling Protocol (PPTP)
8
IP Security (Ipsec)
8
Leds
9
Typical Network Setup
10
Getting Started
10
Using the Configuration Menu
11
Setup Wizard
12
Set Password
13
Time Zone
14
Auto Detecting WAN
14
Connection Type (WAN)
15
Set Dynamic IP Address
16
Set Static IP Address
17
Pppoe
18
Dial-Up Network
19
Setup Wizard - Others
20
Pptp
21
Bigpond Cable
22
Wan
24
Dynamic IP Address
25
Static IP Address
26
Home - LAN
31
Dhcp
32
VPN Settings
33
Select IKE Proposal
35
Select IPSEC Proposal
37
Home - VPN Settings - Tunnel - Manual
39
Dynamic VPN Tunnel
41
Set IKE Proposal
43
Set IPSEC Proposal
45
L2TP Server Setting
47
PPTP Server Setting
48
Advanced - Virtual Server
49
Advanced - Application
50
Advanced - Filter - IP Filter
51
MAC Filters
52
URL Blocking
53
Domain Blocking
54
Firewall
55
Snmp
57
Ddns
58
Routing
59
Dmz
60
Tools - Admin
61
Time
62
System
63
Firmware
64
Tools - Misc
65
Status - Device Info
67
Log
68
Log Settings
69
Stats
70
Help
71
Using the Network Setup Wizard in Windows XP
72
Networking Basics
72
Naming Your Computer
79
Checking the IP Address in Windows XP
80
Assigning a Static IP Address in Windows XP/2000
81
Assigning a Static IP Address with Macintosh OSX
84
Selecting a Dynamic IP Address with Macintosh OSX
85
Adding and Sharing Printers in Windows XP
86
Adding a Local Printer
86
Sharing an Lpr Printer
86
Adding a Local Printer (a Printer Connected Directly to a Computer)
87
Sharing a Network Printer
91
Sharing an LPR Printer
95
Resetting the Unit to the Factory Default Settings
98
Technical Specifications
99
Why Can't I Access the Web-Based Configuration?
100
What Type of Cable Should I be Using?
100
Frequently Asked Questions
100
How Can I Find My IP Address in Windows 95, 98, or ME?
103
How Can I Find My IP Address in Windows 2000/XP?
104
How Can I Assign a Static IP Address in Windows XP?
105
How Can I Assign a Static IP Address in Windows 2000?
105
How Can I Assign a Static IP Address in Windows 98/Me?
106
Dynamic Cable Connection
108
Static Cable Connection
109
To Setup the Unit to Work with Earthlink Dsl/Any Pppoe Connection?
110
How Can I Set Two Routers up to Work with each Other?
112
To Set up DI-808HV to Work with a DI-804V or DI-804HV Router
119
To Configure the DI-804V or DI-804HV Router
124
How Can I Set up My DI-808HV to Work with a DFL-300 Firewall?
126
How Do I Open Ports on My DI-808HV?
133
What Is DMZ?
134
How Do I Configure the DMZ Host?
134
How Do I Open a Range of Ports on My DI-808HV Using Firewall Rules?
136
What Are Virtual Servers?
137
How Do I Use PC Anywhere with My DI-808HV?
137
How Can I Use Edonkey Behind My DI-808HV?
139
How Do I Set up My DI-808HV for SOCOM on My Playstation 2?
140
How Can I Use Gamespy Behind My DI-808HV?
141
How Do I Configure My DI-808HV for Kazaa and Grokster?
142
How Do I Configure My DI-808HV to Play Warcraft 3?
143
How Do I Use Netmeeting with My DI-808HV?
144
How Do I Set up My DI-808HV to Use Ichat? - for Macintosh Users
144
For File Sharing
146
What Is NAT?
148
Contacting Technical Support
149
Warranty
150
Registration
153
