21D-Link DIR-615 User Manual
Section 3 - Conguration

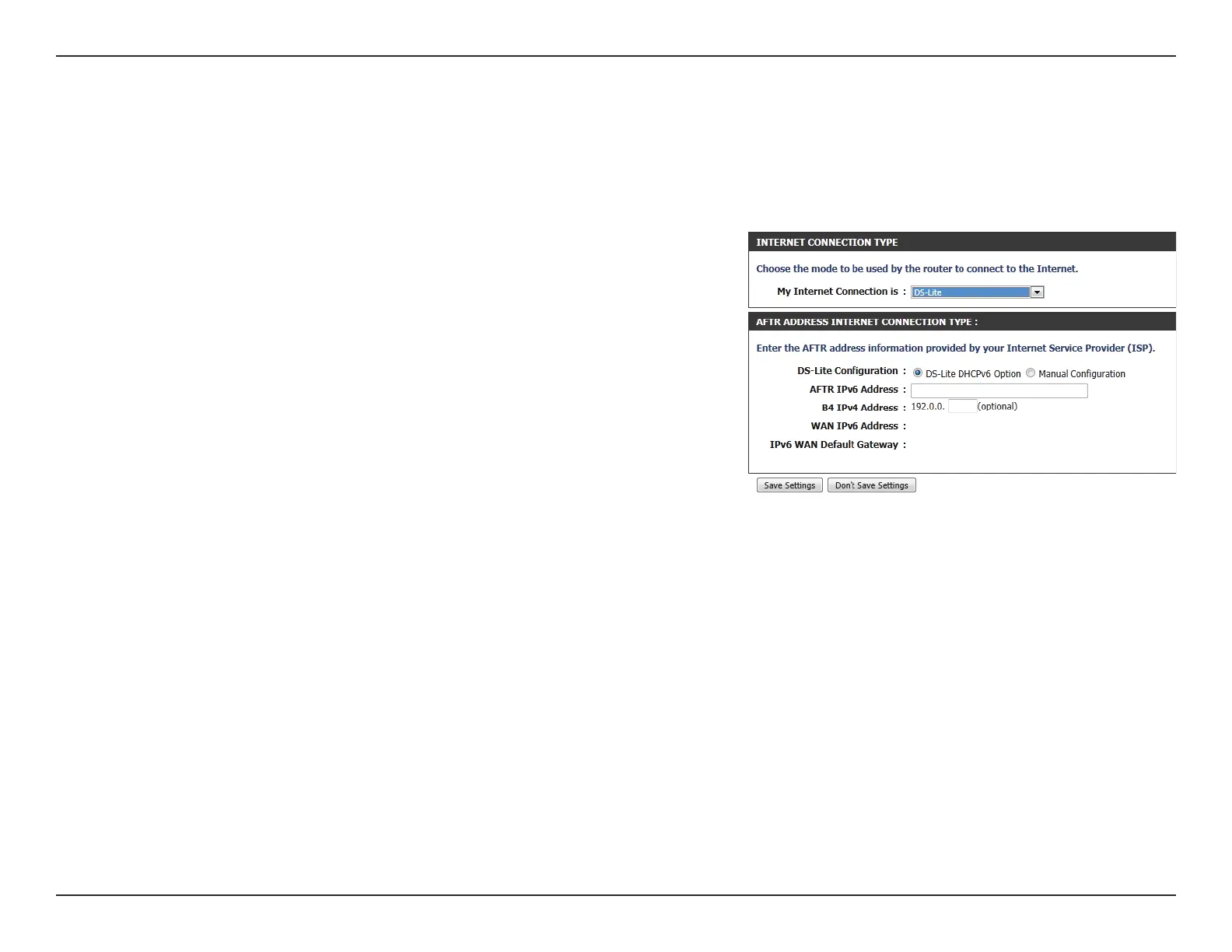

DS-Lite DHCPv6
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
Select the DS-Lite DHCPv6 option to let the router allocate the
AFTR IPv6 address automatically. Select the Manual Conguration
to enter the AFTR IPv6 address in manually.
After selecting the manual conguration option above, the user
can enter the AFTR IPv6 address used here.
Enter the B4 IPv4 address value used here.
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN default gateway address will be
displayed here.
DS-Lite
Conguration:
AFTR IPv6
Address:
B4 IPv4 Address:
WAN IPv6
Address:
IPv6 WAN Default
Gateway

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the D-Link DIR-615/T and is the answer not in the manual?

D-Link DIR-615/T Specifications

Interface IconInterface
WAN Port1 x 10/100 Base TX RJ-45
LAN Ports4 x 10/100 Base TX RJ-45
Wireless Specifications IconWireless Specifications
Wireless Signal RatesUp to 300 Mbps
Frequency Range2.4 GHz to 2.483 GHz
Operating Environment IconOperating Environment
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 65°C (-4°F to 149°F)
Operating Humidity10% to 90% (non-condensing)
Storage Humidity5% to 95% (non-condensing)
Weight and Dimensions IconWeight and Dimensions
Dimensions148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight214 grams (.047 lbs)
