D-Link DIR-615/T User Manual

38D-Link DIR-615 User Manual
Section 3 - Conguration
Enter a name for the inbound filter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify
an IP range.
Enter the ending IP address. Enter 255.255.255.255 if you do not want
to specify an IP range.
Click the Save button to apply your settings. You must click Save
Settings at the top to save the settings.
This section will list any rules that are created. You may click the Edit icon
to change the settings or enable/disable the rule, or click the Delete
icon to remove the rule.
Name:
Action:
Enable:
Source IP Start:
Source IP End:
Save:
Inbound Filter
Rules List:

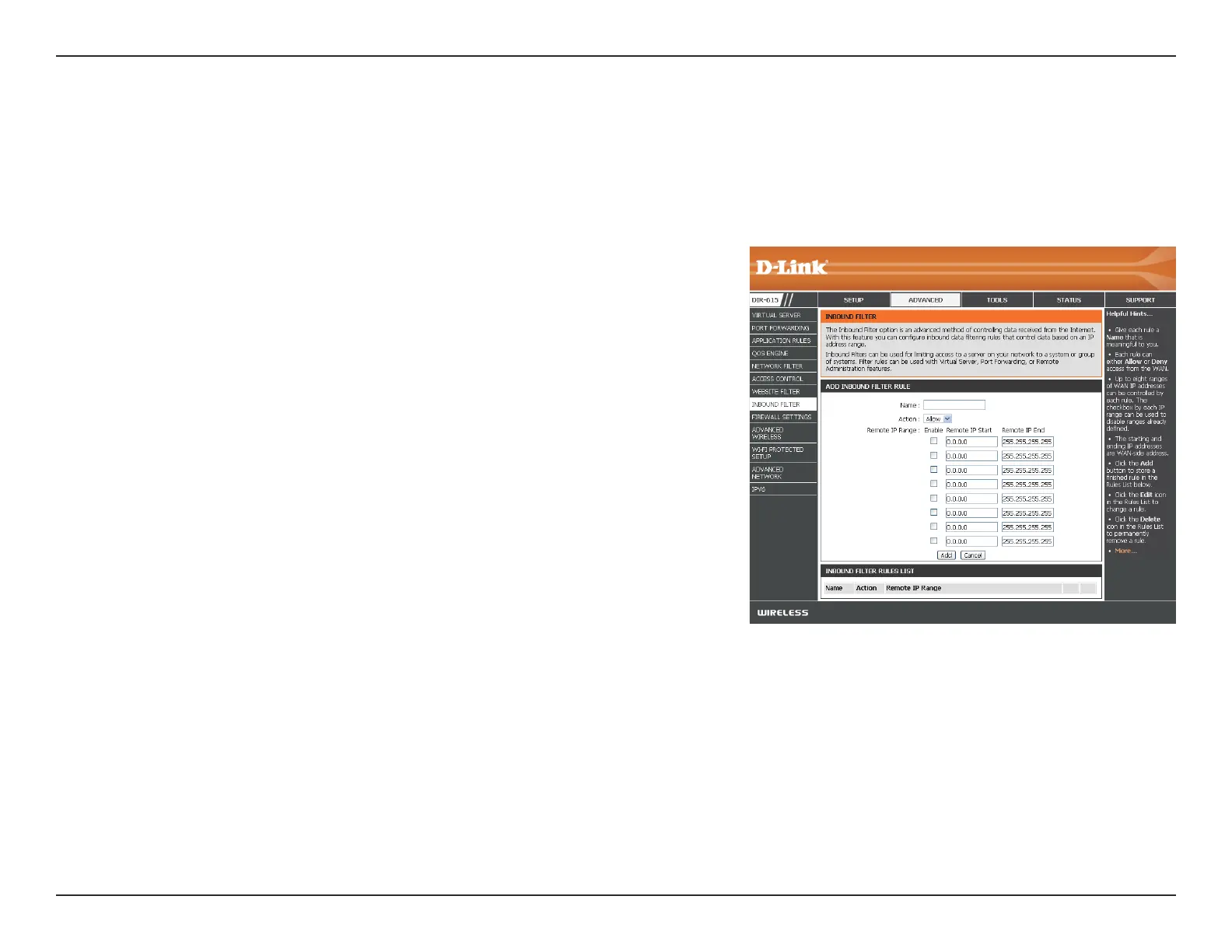

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
configure inbound data filtering rules that control data based on an IP address range. Inbound filters can be used with virtual
server, port forwarding, or remote administration features.
Inbound Filters

D-Link DIR-615/T Specifications

Interface

WAN Port	1 x 10/100 Base TX RJ-45
LAN Ports	4 x 10/100 Base TX RJ-45

Wireless Specifications

Wireless Signal Rates	Up to 300 Mbps
Frequency Range	2.4 GHz to 2.483 GHz

Operating Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

Weight and Dimensions

Dimensions	148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight	214 grams (.047 lbs)
