D-Link DIR-615/T User Manual

47D-Link DIR-615 User Manual
Section 3 - Conguration

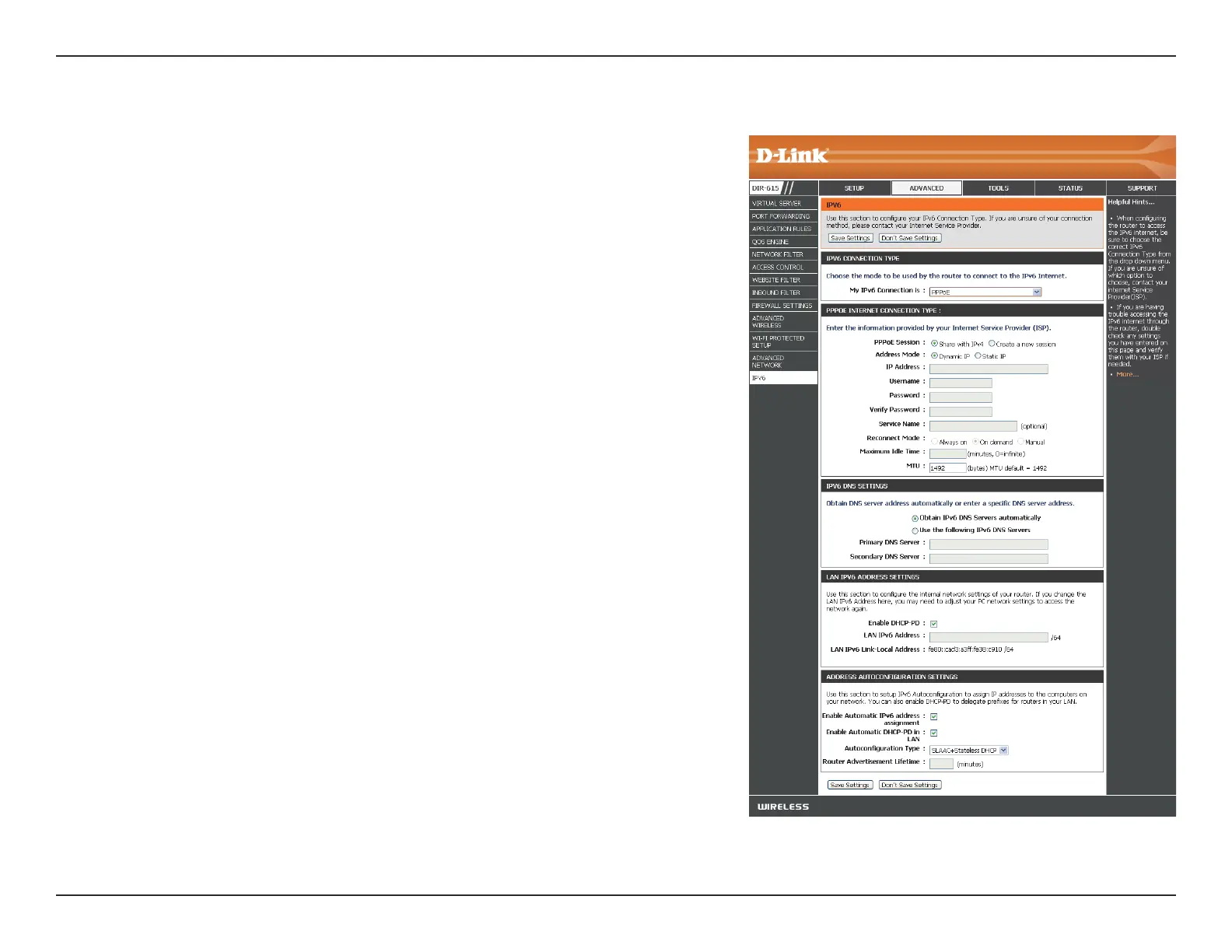

PPPoE
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet provider.
Select Static if your ISP assigned you an IP address, subnet mask, gateway,
and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity.
Maximum Transmission Unit - you may need to change the MTU for optimal
performance with your specific ISP. 1492 is the default MTU.
Select either Obtain IPv6 DNS Servers Automatically or Use the
following IPv6 DNS Servers.
Enter the primary and secondary DNS server addresses.
Check this box to enable DHCP prefix delegation for each LAN on the
network.
Enter the LAN (local) IPv6 address for the router.
My IPv6
Connection
Is:
PPPoE
Session:
Address
Mode:
IP Address:
Username:
Password:
Service
Name:
Reconnect
mode:
Maximum
Idle Time:
MTU:
IPv6 DNS
Settings:
Primary/
Secondary
DNS Address:
Enable
DHCP-D:
LAN IPv6
Address:

D-Link DIR-615/T Specifications

Interface

WAN Port	1 x 10/100 Base TX RJ-45
LAN Ports	4 x 10/100 Base TX RJ-45

Wireless Specifications

Wireless Signal Rates	Up to 300 Mbps
Frequency Range	2.4 GHz to 2.483 GHz

Operating Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

Weight and Dimensions

Dimensions	148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight	214 grams (.047 lbs)
