D-Link DIR-615/T User Manual

59D-Link DIR-615 User Manual
Section 3 - Conguration
Use this option to save the current router configuration settings to a
file on the hard disk of the computer you are using. First, click the Save
button. You will then see a file download dialog in your web browser,
where you can select a location and file name for the settings file.
Use this option to load previously saved router configuration
settings. First, use the Browse control to find a previously saved file of
configuration settings. Then, click the Load button to transfer those
settings to the router.
This option will restore all configuration settings back to the settings that
were in effect at the time the router was shipped from the factory. Any
settings that have not been saved will be lost, including any rules that
you have created. If you want to save the current router configuration
settings, use the Save button above.
Click to reboot the router.
Clicking on this button will clear any installed language packs and return
the system language to its factory default.
Save Settings
to Local Hard
Drive:
Load Settings
from Local
Hard Drive:
Restore
to Factory
Default
Settings:
Reboot
Device:
Clear
Language
Pack:
System Settings

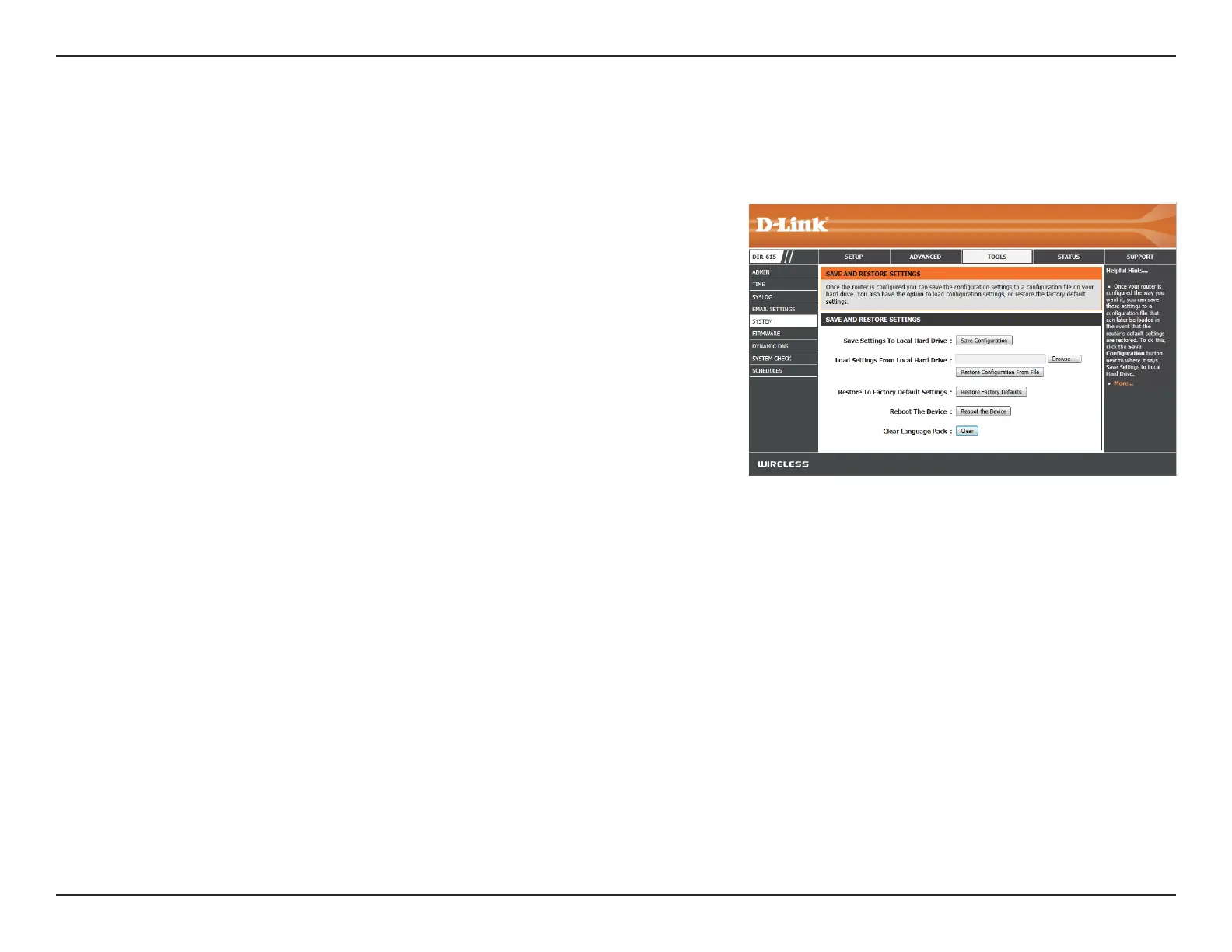

This section allows you to save, load, or restore your router’s system settings

D-Link DIR-615/T Specifications

Interface

WAN Port	1 x 10/100 Base TX RJ-45
LAN Ports	4 x 10/100 Base TX RJ-45

Wireless Specifications

Wireless Signal Rates	Up to 300 Mbps
Frequency Range	2.4 GHz to 2.483 GHz

Operating Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

Weight and Dimensions

Dimensions	148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight	214 grams (.047 lbs)
