D-Link DIR-615/T User Manual

79D-Link DIR-615 User Manual
Section 4 - Security

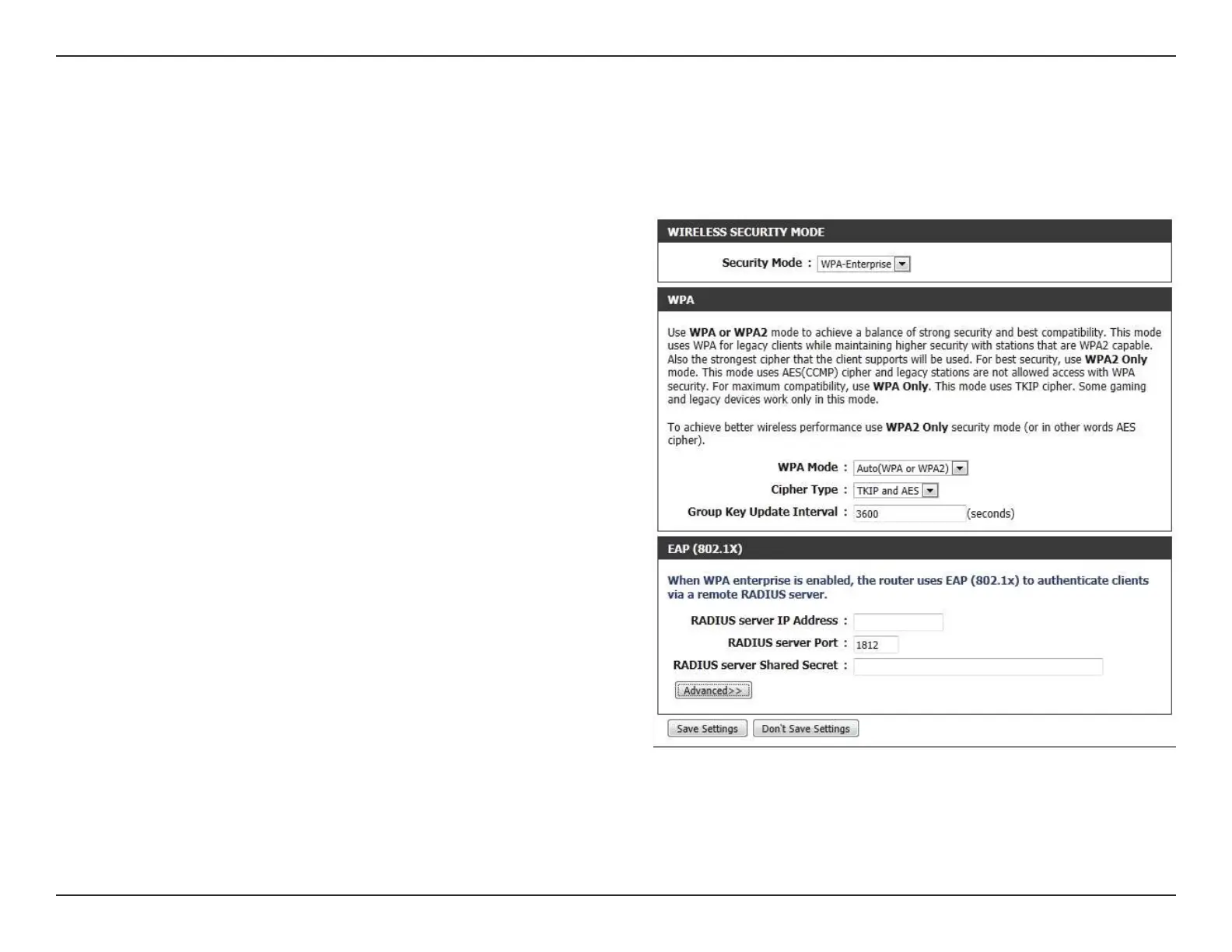

1. Log into the web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Setup and then
click Wireless Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
Note: Wi-Fi Protected Setup must be disabled in order to select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if
you have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIP and AES, TKIP, or AES. If you have wireless
clients that use both types, use TKIP and AES.
5. Next to Group Key Update Interval, enter the amount of time before the
group key used for broadcast and multicast data is changed (3600 is default).
6. Next to RADIUS Server IP Address enter the IP Address of your RADIUS
server.
7. Next to RADIUS Server Port, enter the port you are using with your RADIUS
server. 1812 is the default port.
8. Next to RADIUS Server Shared Secret, enter the security key.
9. Click Advanced to enter settings for a secondary RADIUS Server.
10. Click Apply Settings to save your settings.
Configure WPA-Enterprise (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.

D-Link DIR-615/T Specifications

Interface

WAN Port	1 x 10/100 Base TX RJ-45
LAN Ports	4 x 10/100 Base TX RJ-45

Wireless Specifications

Wireless Signal Rates	Up to 300 Mbps
Frequency Range	2.4 GHz to 2.483 GHz

Operating Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

Weight and Dimensions

Dimensions	148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight	214 grams (.047 lbs)
