D-Link DIR-615/T User Manual

84D-Link DIR-615 User Manual
Section 5 - Connecting to a Wireless Network

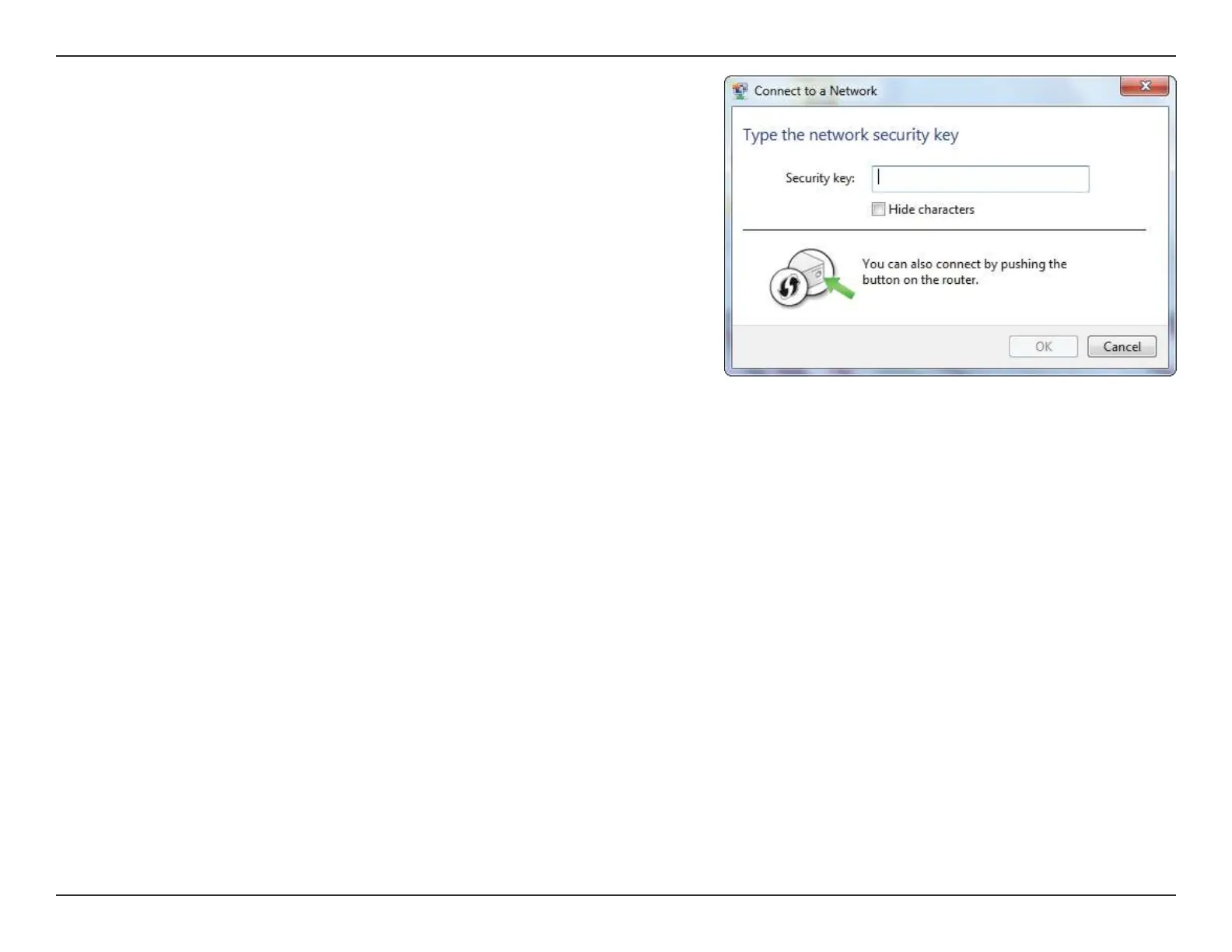

5. Enter the same security key or passphrase that is on your router
and click Connect. You can also connect by pushing the WPS button
on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct.
The key or passphrase must be exactly the same as on the wireless
router.

D-Link DIR-615/T Specifications

Interface

WAN Port	1 x 10/100 Base TX RJ-45
LAN Ports	4 x 10/100 Base TX RJ-45

Wireless Specifications

Wireless Signal Rates	Up to 300 Mbps
Frequency Range	2.4 GHz to 2.483 GHz

Operating Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

Weight and Dimensions

Dimensions	148 x 113 x 32 mm (5.8 x 4.4 x 1.3 inches)
Weight	214 grams (.047 lbs)
